Click the Delete button to remove the specific entry.

After clicking the

Group List link, the following page will appear:

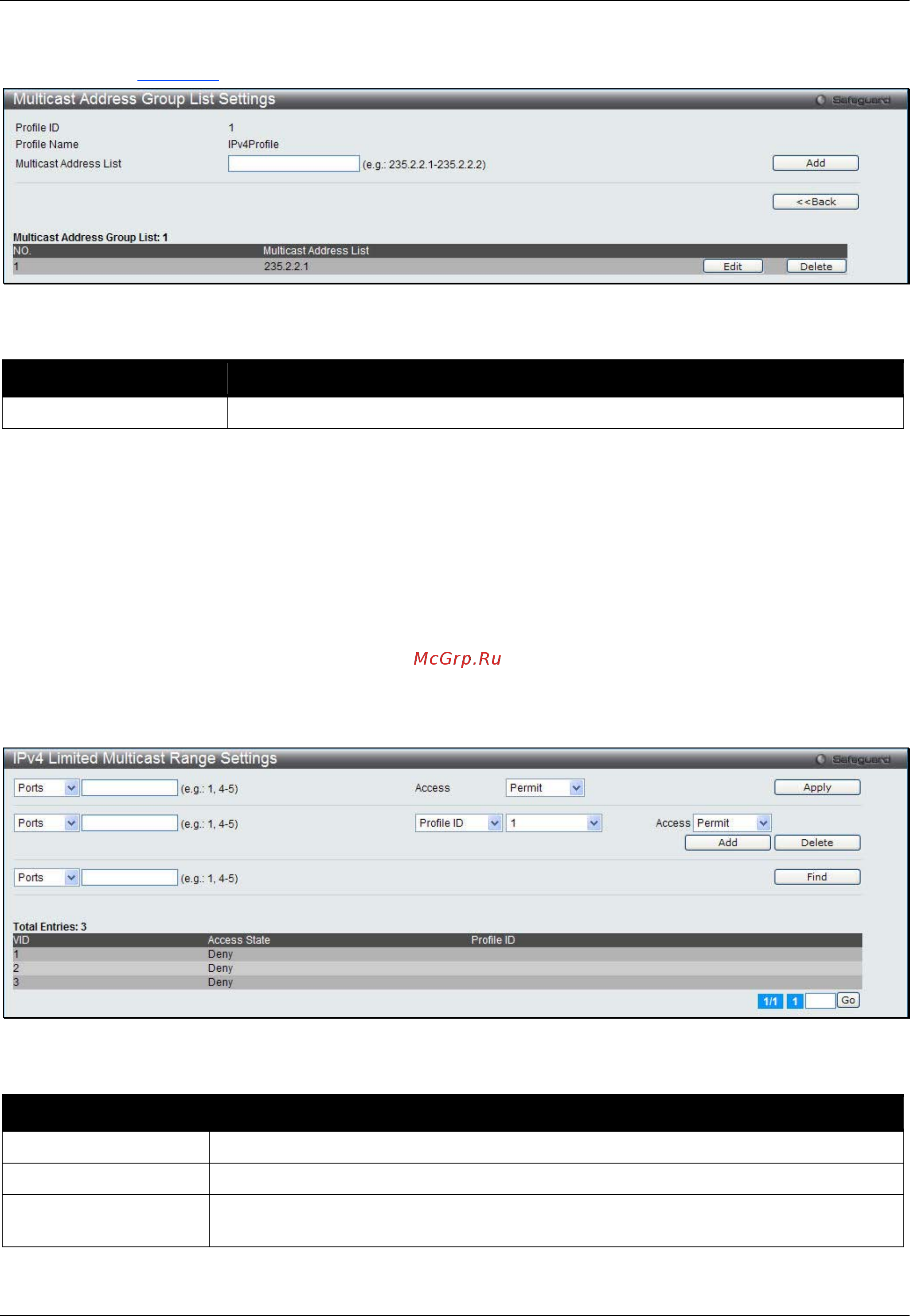

Figure 7-77 Multicast Address Group List Settings window

The fields that can be configured are described below:

Parameter Description

Multicast Address List

Enter the multicast address list.

Click the Add button to add a new entry based on the information entered.

Click the <<Back button to discard the changes made and return to the previous window.

Click the Edit button to re-configure the specific entry.

Click the Delete button to remove the specific entry.

IPv4 Limited Multicast Range Settings

Users can configure the ports and VLANs on the Switch that will be involved in the Limited IPv4 Multicast Range.

The user can configure the range of multicast ports that will be accepted by the source ports to be forwarded to the

receiver ports.

To view the following window, click L2 Features > Multicast Filtering > IPv4 Multicast Filtering > IPv4 Limited

Multicast Range Settings, as show below:

Figure 7-78 IPv4 Limited Multicast Range Settings window

The fields that can be configured are described below:

Parameter Description

Ports / VID List

Select the appropriate port(s) or VLAN IDs used for the configuration.

Access

Assign access permissions to the ports selected. Options listed are Permit and Deny.

Profile ID / Profile

Name

Use the drop-down menu to select the profile ID or profile name used and then assign

Permit or Deny access to them.

Click the Apply button to accept the changes made.

Click the Add button to add a new entry based on the information entered.
