DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

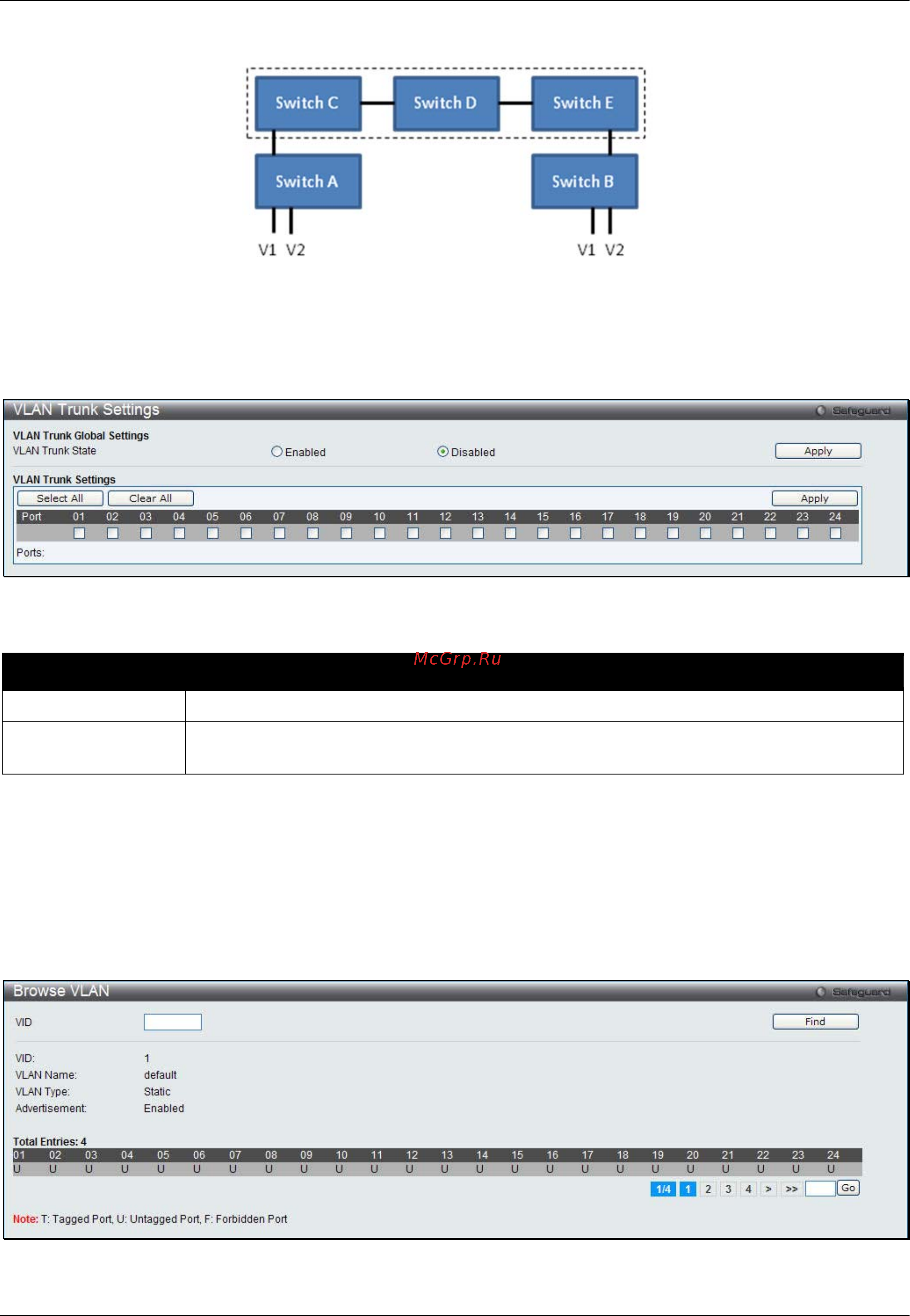

Refer to the following figure for an illustrated example.

Figure 7-21 Example of VLAN Trunk

Users can combine a number of VLAN ports together to create VLAN trunks.

To view the following window, click L2 Features > VLAN > VLAN Trunk Settings, as show below:

Figure 7-22 VLAN Trunk Settings window

The fields that can be configured are described below:

Parameter Description

VLAN Trunk State

Enable or disable the VLAN trunking global state.

Ports The ports to be configured. By clicking the Select All button, all the ports will be

included. By clicking the

Clear All

button, all the ports will not be included.

Click the Apply button to accept the changes made for each individual section.

Browse VLAN

Users can display the VLAN status for each of the Switch's ports viewed by VLAN. Enter a VID (VLAN ID) in the

field at the top of the window and click the Find button.

To view the following window, click L2 Features > VLAN > Browse VLAN, as show below:

Figure 7-23 Browse VLAN window
