DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
254

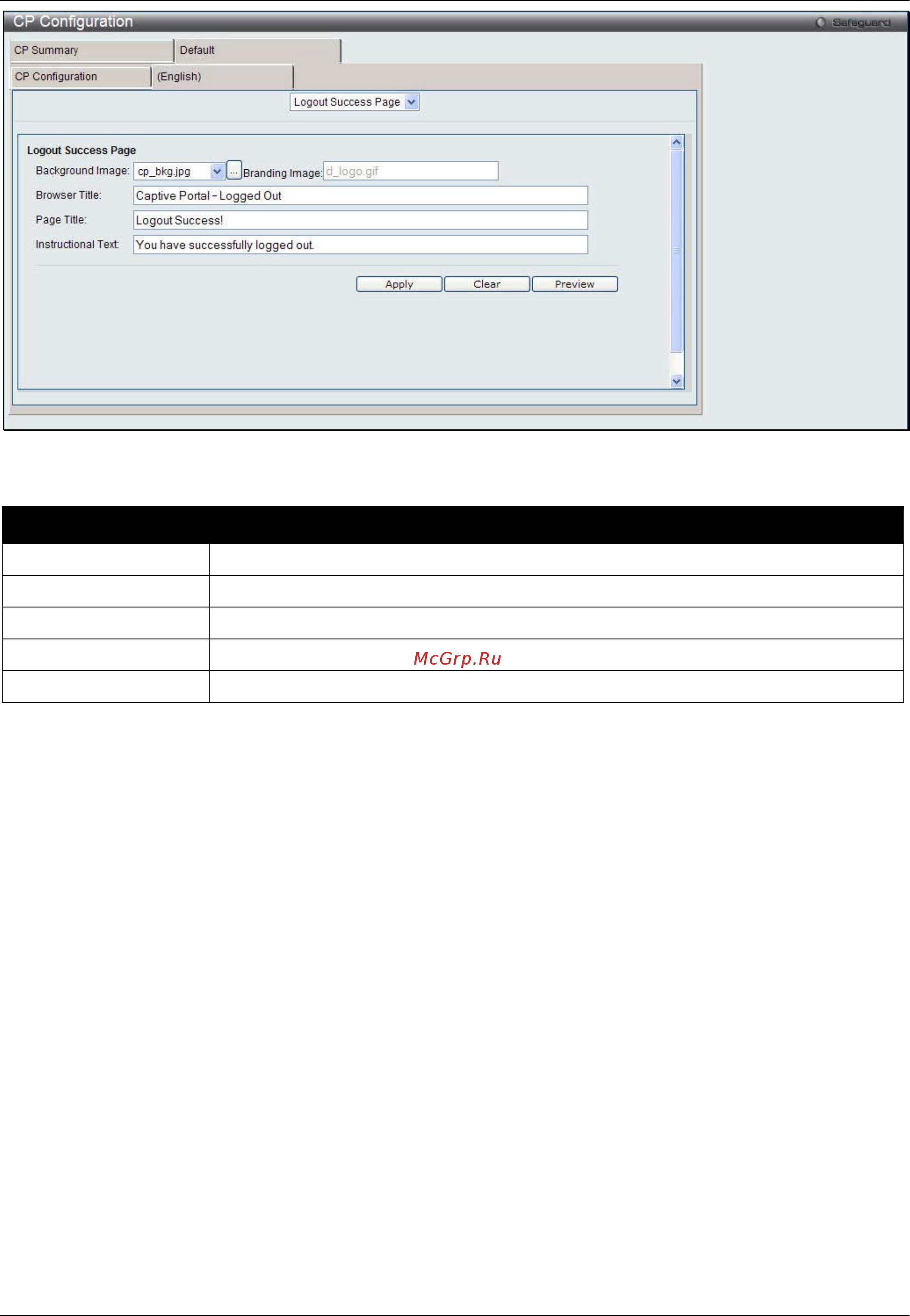

Figure 11-74 CP Configuration – Customize window (Logout Success Page)
The fields that can be displayed or configured are described below:
Parameter Description
Background Image
Display the name of the current background image on the Logout Success Page.
Branding Image
Display the name of the current branding image on the Logout Success Page.
Browser Title
Enter the text to display on the title bar of the Logout Success page.
Page Title
Enter the text to use as the page title.
Instructional Text
Enter the message to confirm that the user has been de-authenticated.
Click the Apply button to accept the changes made.
Click the Clear button to wipe all the configurations and set back to the default settings.
Click the Preview button to view the result of the web page.
Local User
This window is used to create, modify or delete authorized users to the local database.
To view this window, click Security > Captive Portal (CP) > Local User as shown below:
