DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
255

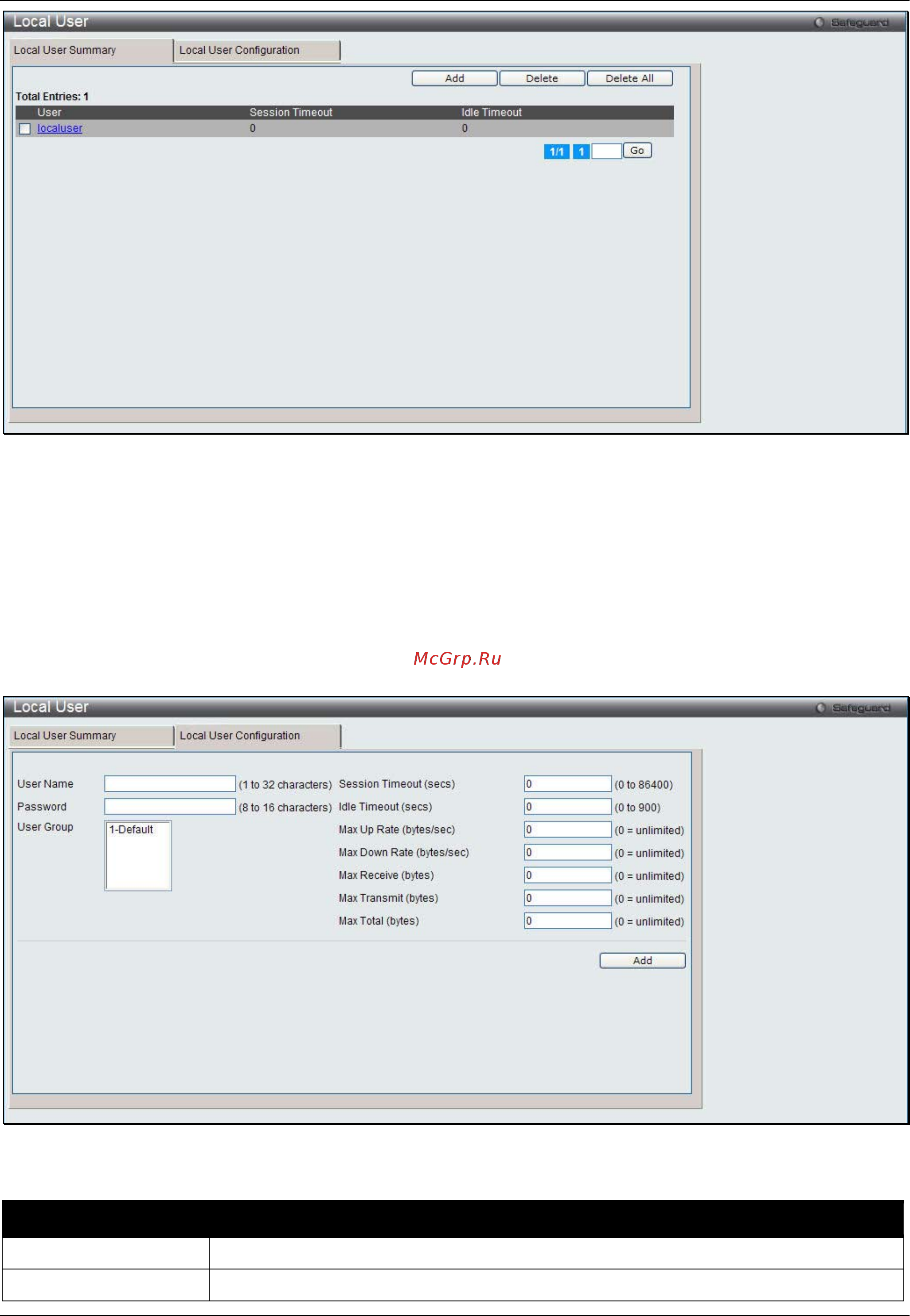

Figure 11-75 Local User - Summary window
Click the Add button to create a new user to the local database.
Tick the corresponding check box, and click the Delete button to remove the specific entry.
Click the Delete All button to remove all the entries listed.
Click the specific User hyperlink to modify the information.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add button, the following page will appear:
Figure 11-76 Local User - Configuration window (Add)
The fields that can be configured are described below:
Parameter Description
User Name
Enter the name of the user.
Password
Enter a password for the user.
