DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

247

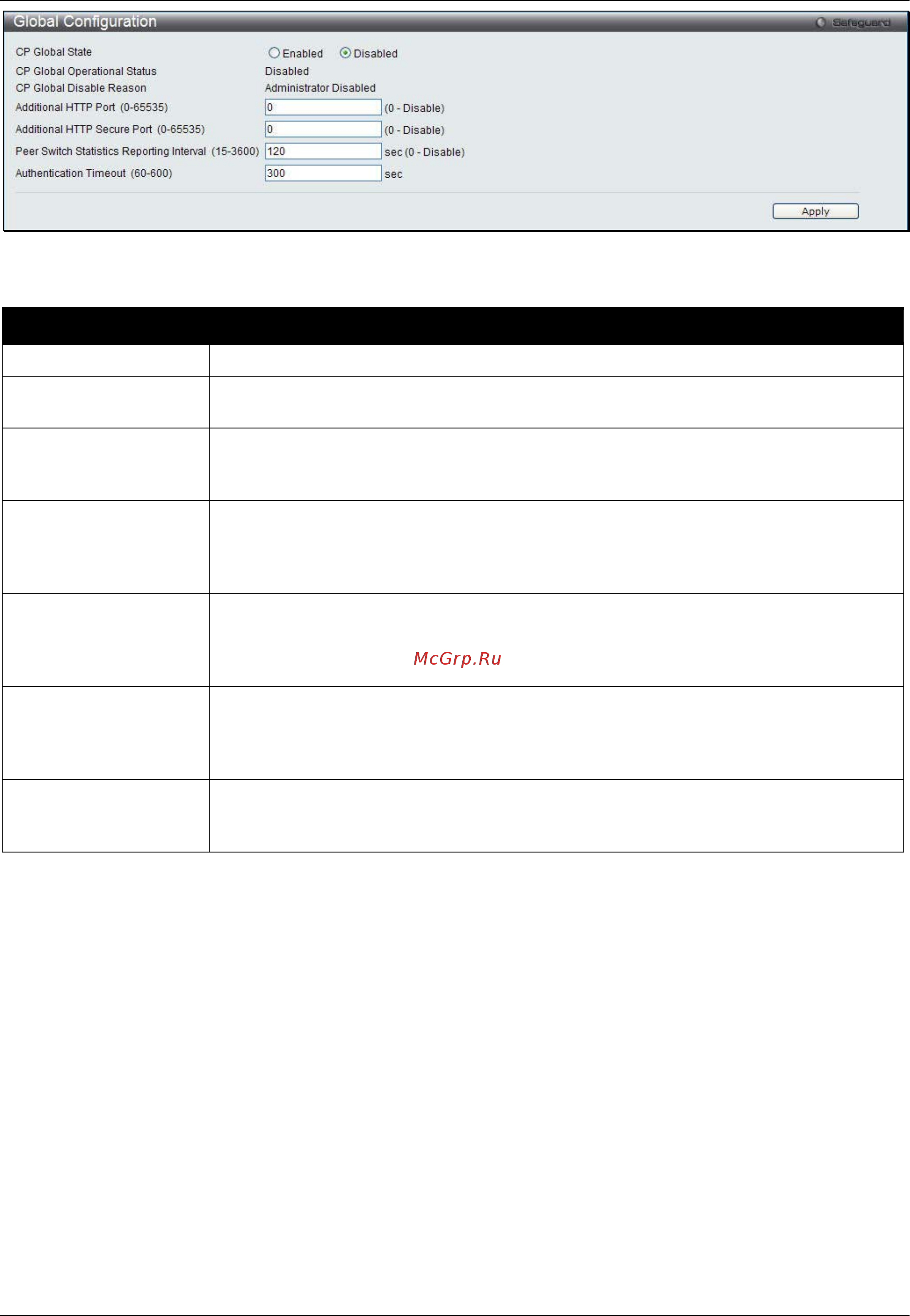

Figure 11-67 Global Configuration window

The fields that can be configured or displayed are described below:

Parameter Description

CP Global State

Click the radio buttons to enable or disable the CP global state.

CP Global

Operational Status

Display the status of the CP operational status.

CP Global Disable

Reason

When captive portal is disabled, the field displays the reason being disabled.

Available reasons are: Administrator Disabled, IP Address Not Configured, No IP

Routing Interface and Routing Disabled.

Additional HTTP Port

(0-65535)

Enter the additional HTTP port number between 0 and 65535, except 80 and 443. 80

is reserved for HTTP default port, and 443 is reserved for HTTPS default port. The

default value is 0 which represents that no additional port is used, and the default port

(80) is used.

Additional HTTP

Secure Port (0-65535)

Enter the additional HTTPS port number between 0 and 65535, except 80 and 443.

80 is reserved for HTTP default port, and 443 is reserved for HTTPS default port. The

default value is 0 which represents that no additional port is used, and the default port

(443) is used.

Peer Switch Statistics

Reporting Interval

(15-3600)

When clustering is supported on the switch, enter an interval that the peer switches

send its authenticated client statistics to the Cluster Controller periodically. The

reporting interval is in the range of 0, 15-3600 seconds. The value 0 means the

function is disabled. The default value is 120.

Authentication

Timeout (60-600)

Enter a time for authentication. If a CP user does not enter valid credentials within the

time, the authentication page needs to be served again in order for the client to gain

access to the network. The value is between 60 and 600 seconds.

Click the Apply button to accept the changes made for each individual section.

CP Configuration

This window is used to create CP configuration.

To view this window, click Security > Captive Portal (CP) > CP Configuration as shown below:
