DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
286
MA Index
Select and enter the Maintenance Association index used.
Click the Find button to locate a specific entry based on the information entered.
CFM MP Table
To view this window, click OAM > CFM > CFM MP Table, as shown below:

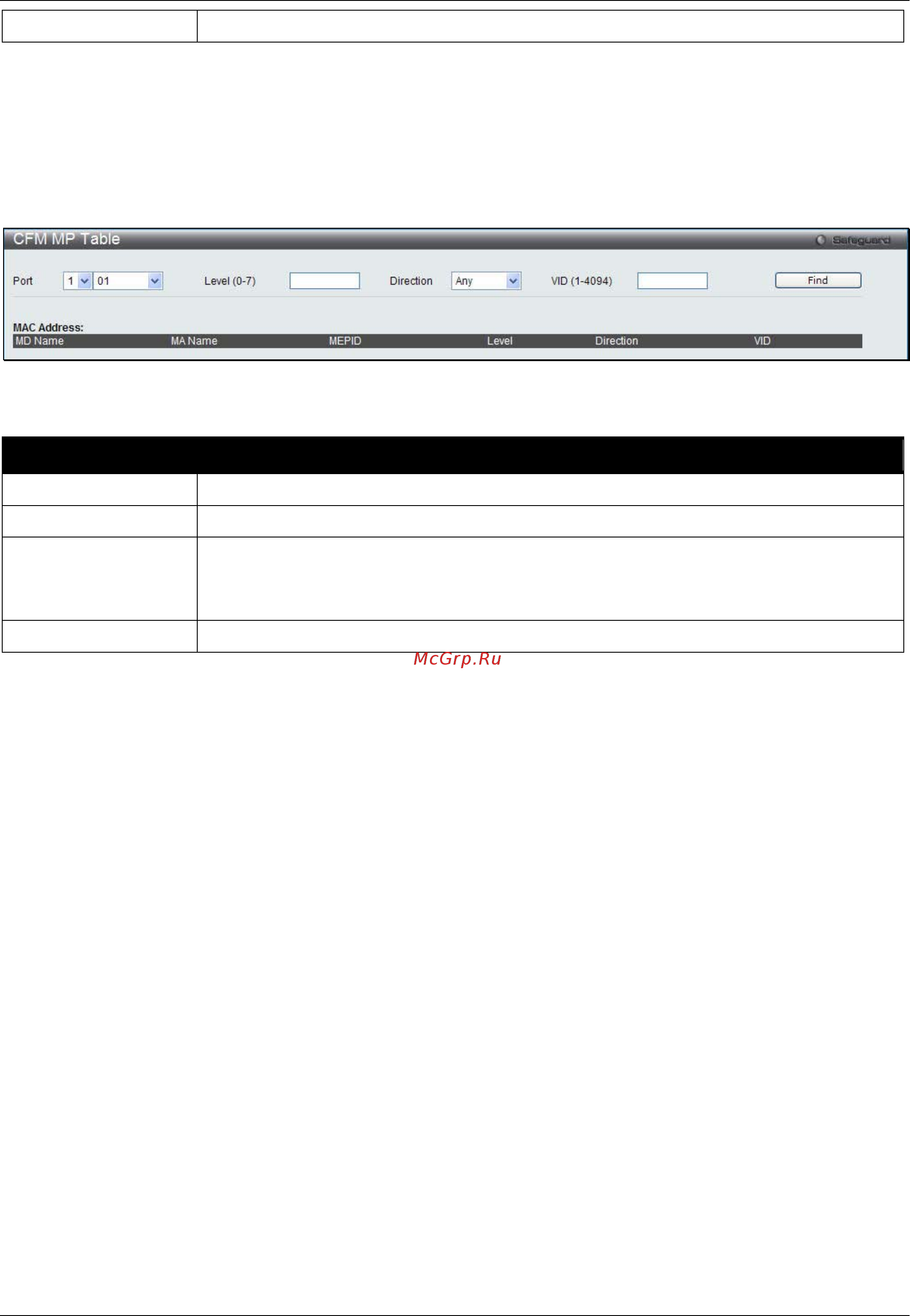

Figure 13-16 CFM MP Table Window
The fields that can be configured are described below:
Parameter Description
Port
Use the drop-down menu to select the unit ID and the port number to view.
Level (0-7)
Enter the level to view.
Direction
Use the drop-down menu to select the direction to view.
Inward - Inward facing (up) MP.
Outward - Outward facing (down) MP.
VID (1-4094)
Enter the VID to view.
Click the Find button to locate a specific entry based on the information entered.
Ethernet OAM
Ethernet OAM Settings
This window is used to configure the Ethernet OAM settings.
To view this window, click OAM > Ethernet OAM > Ethernet OAM Settings, as shown below:
