DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

166

Parameter Description

Access ID (1-100) Type in a unique identifier number for this access. This value can be set from 1 to

100.

Action Select Permit to specify that the packets that match the access profile are

forwarded by the Switch, according to any additional rule added (see below).

Select Deny to specify that the packets that match the access profile are not

forwarded by the Switch and will be filtered.

Ethernet Type (0-FFFF)

Enter the appropriate Ethernet Type information.

Time Range Name

Tick the check box and enter the name of the Time Range settings that has been

previously configured in the Time Range Settings window. This will set specific

times when this access rule will be implemented on the Switch.

Ports

Ticking the All Ports check box will denote all ports on the Switch.

Click the Apply button to accept the changes made.

Click the <<Back button to discard the changes made and return to the previous window.

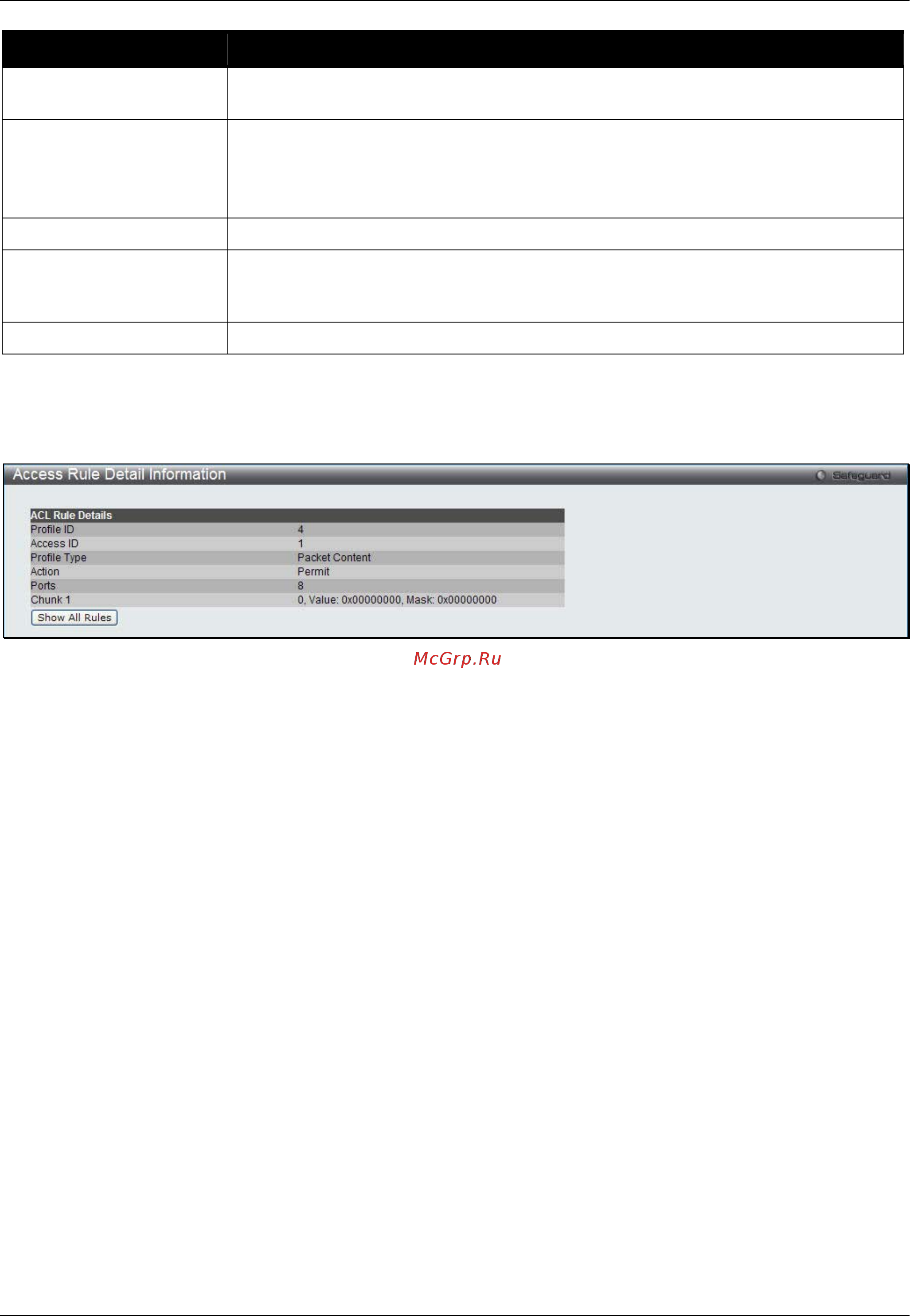

After clicking the Show Details button in the CPU Access Rule List, the following page will appear:

Figure 10-28 CPU Access Rule Detail Information (Ethernet ACL)

Click the Show All Rules button to navigate back to the CPU Access Rule List.

Adding a CPU IPv4 ACL Profile

The window shown below is the Add CPU ACL Profile window for IP (IPv4). To use specific filtering masks in this

ACL profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.

After clicking the Add CPU ACL Profile button, the following page will appear:
