DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
461
Chapter 2 Tools
License Management
This window is used to install an activation code. The activation code is a set of codes which actives/unlocks
function on the appliance.

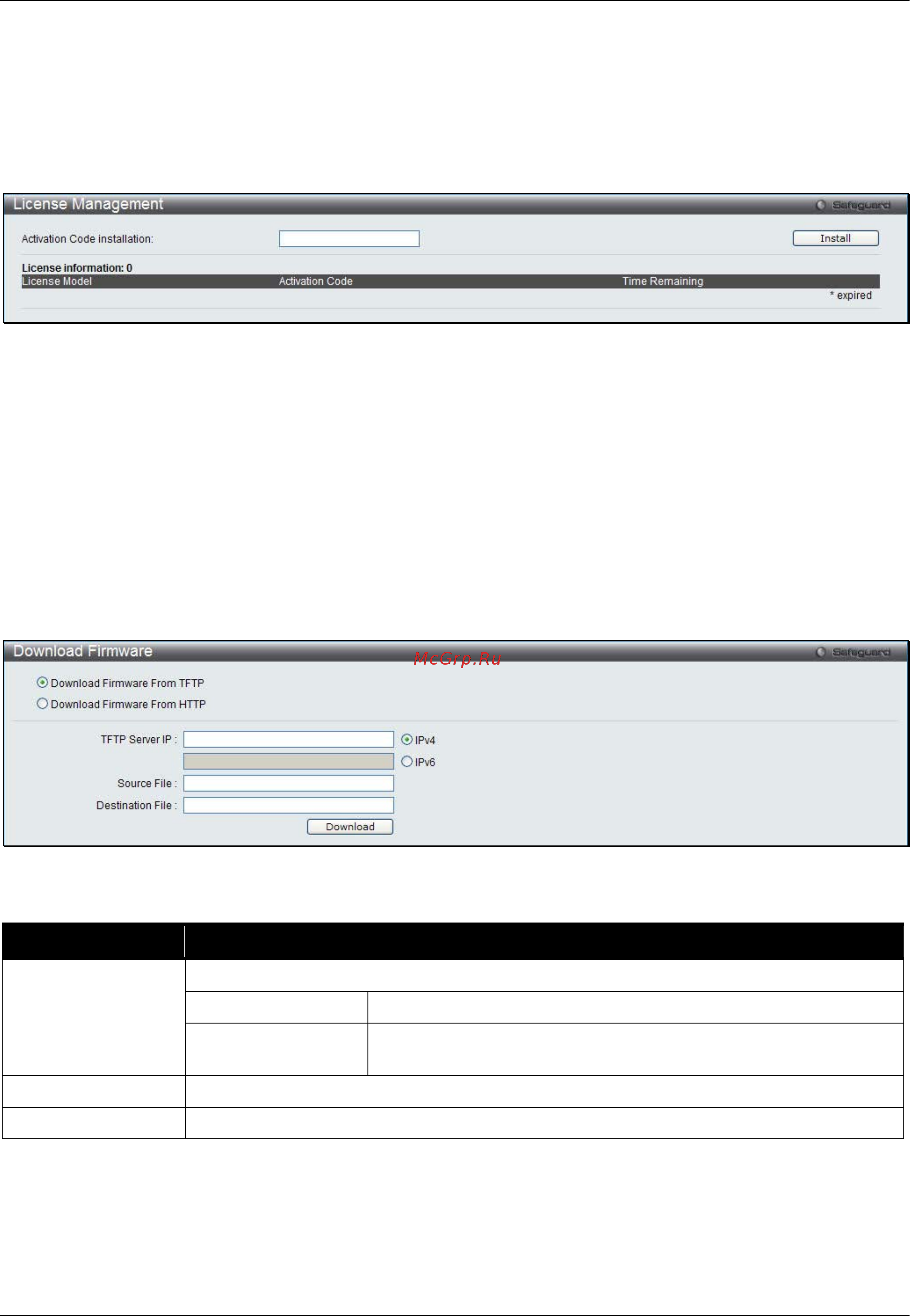

Figure 2-1 License Management window
Enter an activation code in the field and click the Install button.
Download Firmware
The following window is used to download firmware for the Switch.
Download Firmware From TFTP
This window is used to download firmware from a TFTP Server to the Switch and updates the switch.
Figure 2-2 Download Firmware – TFTP window
The fields that can be configured are described below:
Parameter Description
TFTP Server IP
Enter the TFTP server IP address used.
IPv4
Click the radio button to enter the TFTP server IP address used.
IPv6
Click the radio button to enter the TFTP server IPv6 address
used.
Source File
Enter the location and name of the Source File.
Destination File
Enter the location and name of the Destination File.
Click Download to initiate the download.
Download Firmware From HTTP
This page allows the user to download firmware from a computer to the Switch and updates the switch.
