DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

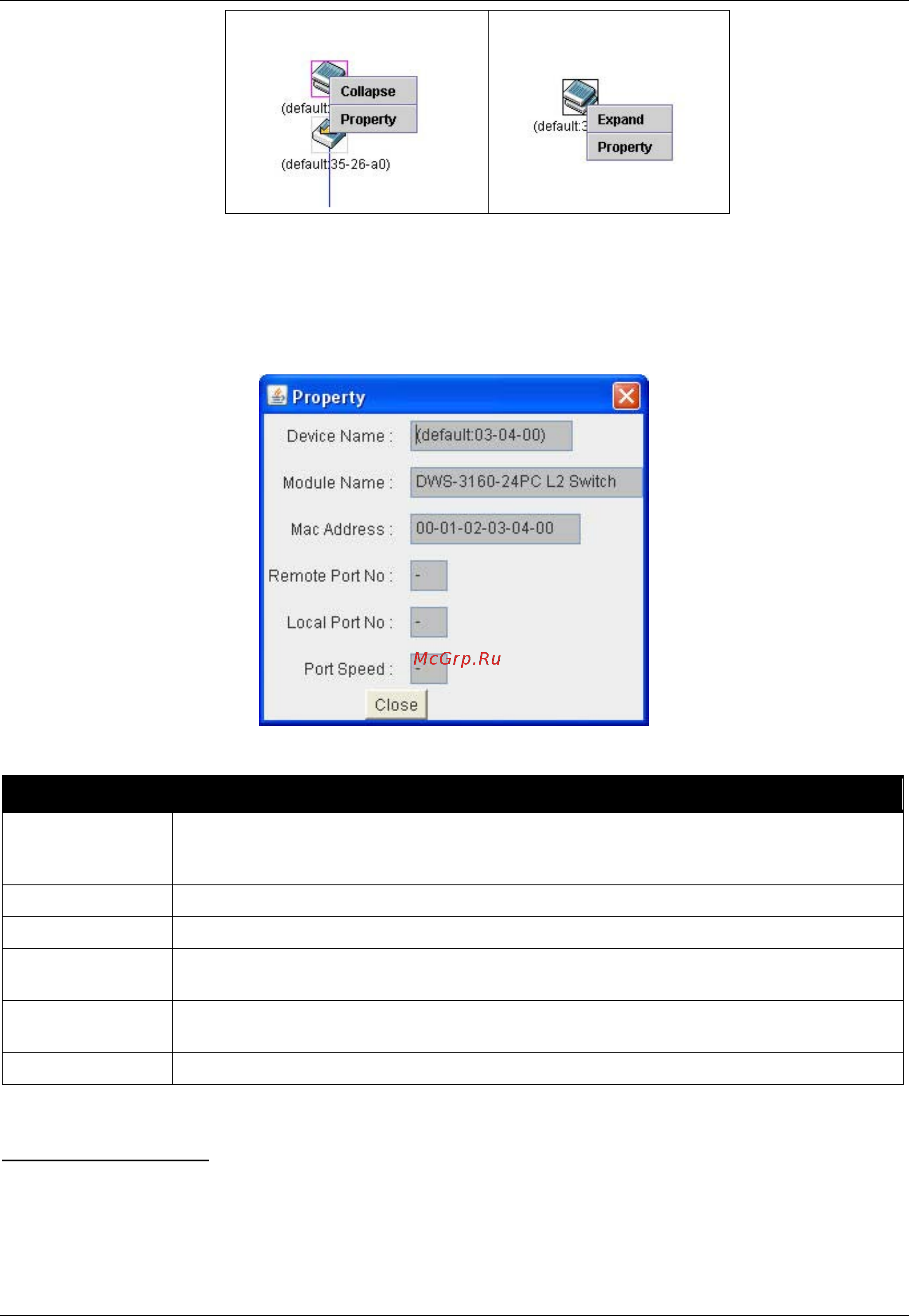

Figure 6-20 Right-Clicking a Group Icon

The following options may appear for the user to configure:

• Collapse – To collapse the group that will be represented by a single icon.

• Expand – To expand the SIM group, in detail.

• Property – To pop up a window to display the group information.

Figure 6-21 Property window

Parameter Description

Device Name

This field will display the Device Name of the switches in the SIM group configured by the

user. If no Device Name is configured by the name, it will be given the name default and

tagged with the last six digits of the MAC Address to identify it.

Module Name

Displays the full module name of the switch that was right-clicked.

MAC Address

Displays the MAC Address of the corresponding Switch.

Remote Port No

Displays the number of the physical port on the MS or CaS that the CS is connected to.

The CS will have no entry in this field.

Local Port No

Displays the number of the physical port on the CS that the MS or CaS is connected to.

The CS will have no entry in this field.

Port Speed

Displays the connection speed between the CS and the MS or CaS

Click the Close button to close the property window.

Commander Switch Icon
