DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
37

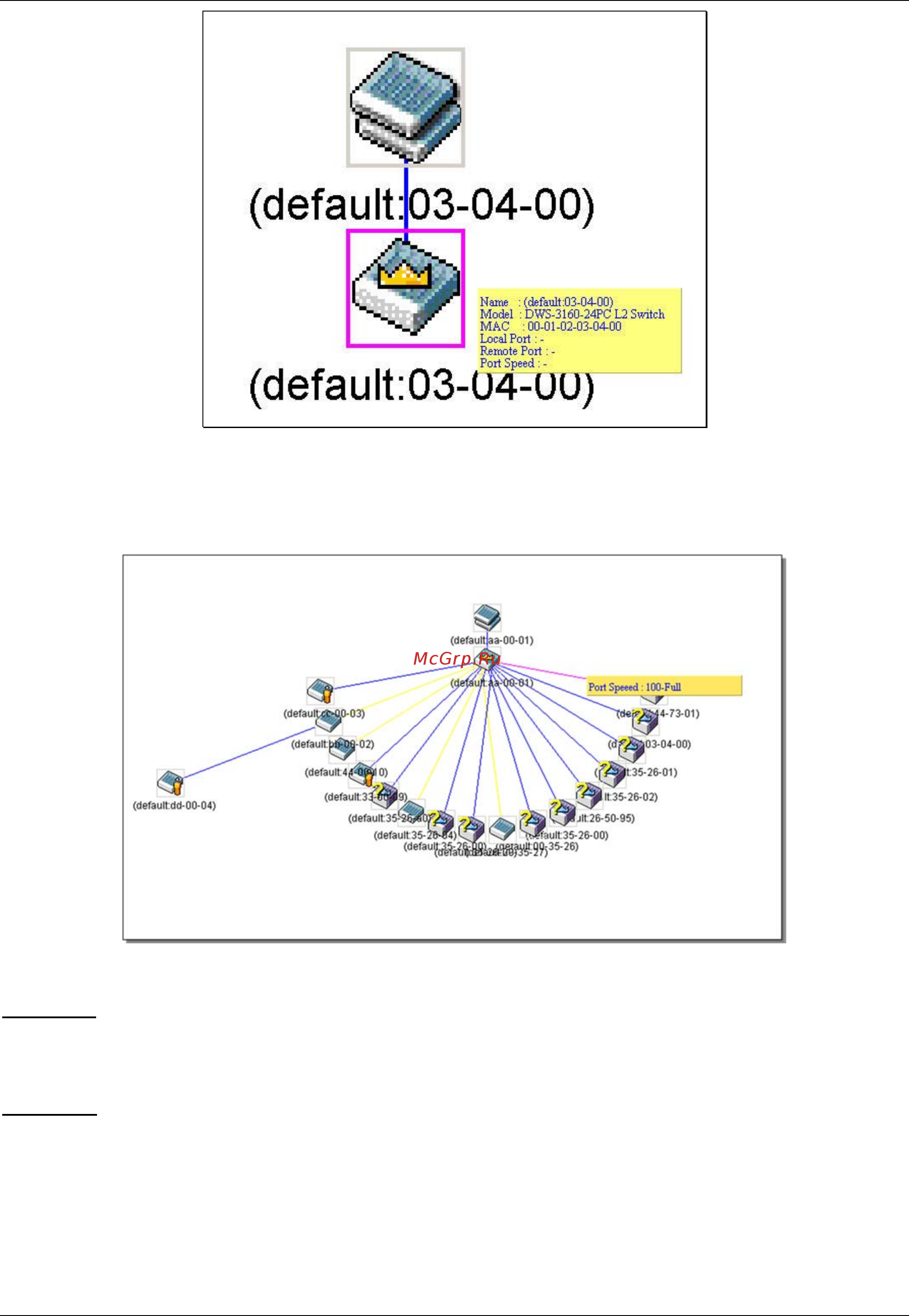

Figure 6-18 Device Information Utilizing the Tool Tip
Setting the mouse cursor over a line between two devices will display the connection speed between the two
devices, as shown below.
Figure 6-19 Port Speed Utilizing the Tool Tip
Right-clicking on a device will allow the user to perform various functions, depending on the role of the Switch in
the SIM group and the icon associated with it.
Right-Click
Group Icon
