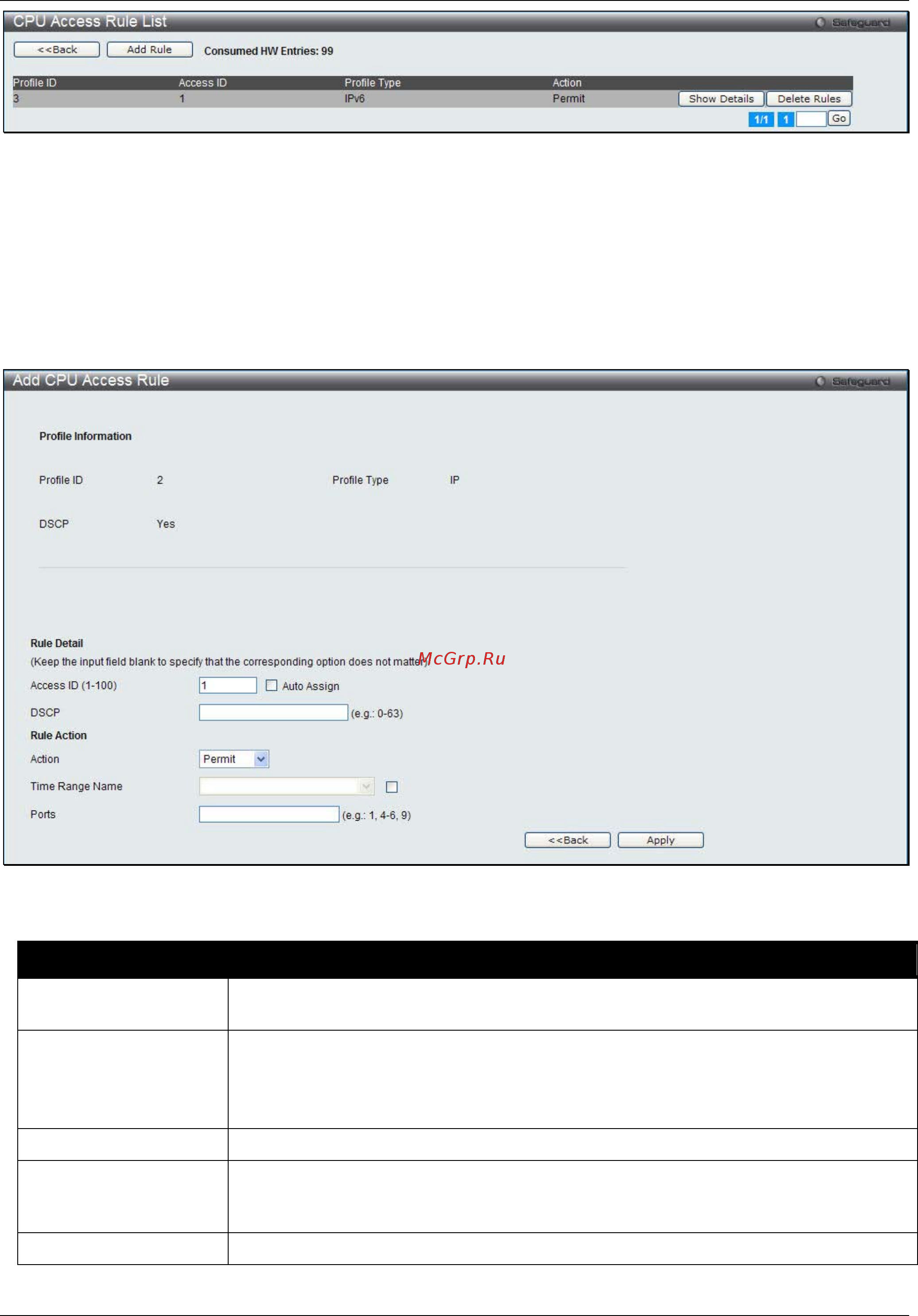

Figure 10-31 CPU Access Rule List (IPv4 ACL)

Click the Add Rule button to create a new CPU ACL rule in this profile.

Click the <<Back button to return to the previous window.

Click the Show Details button to view more information about the specific rule created.

Click the Delete Rules button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Add Rule button, the following page will appear:

Figure 10-32 Add CPU Access Rule (IPv4 ACL)

The fields that can be configured are described below:

Parameter Description

Access ID (1-100) Type in a unique identifier number for this access. This value can be set from 1 to

100.

Action Select Permit to specify that the packets that match the access profile are forwarded

by the Switch, according to any additional rule added (see below).

Select Deny to specify that the packets that match the access profile are not

forwarded by the Switch and will be filtered.

VLAN Name

Allows the entry of a name for a previously configured VLAN.

Time Range Name

Tick the check box and enter the name of the Time Range settings that has been

previously configured in the Time Range Settings window. This will set specific

times when this access rule will be implemented on the Switch.

Ports

Ticking the All Ports check box will denote all ports on the Switch.

Click the Apply button to accept the changes made.
