DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

439

Parameter Description

New IP ACL Name

Enter a new name of IP ACL.

Click the Apply button to accept the changes made.

Click the Cancel button to discard the configuration.

After clicking the Add / Delete Rules button or the specific IP ACL ID (Name) hyperlink, the following page will

appear:

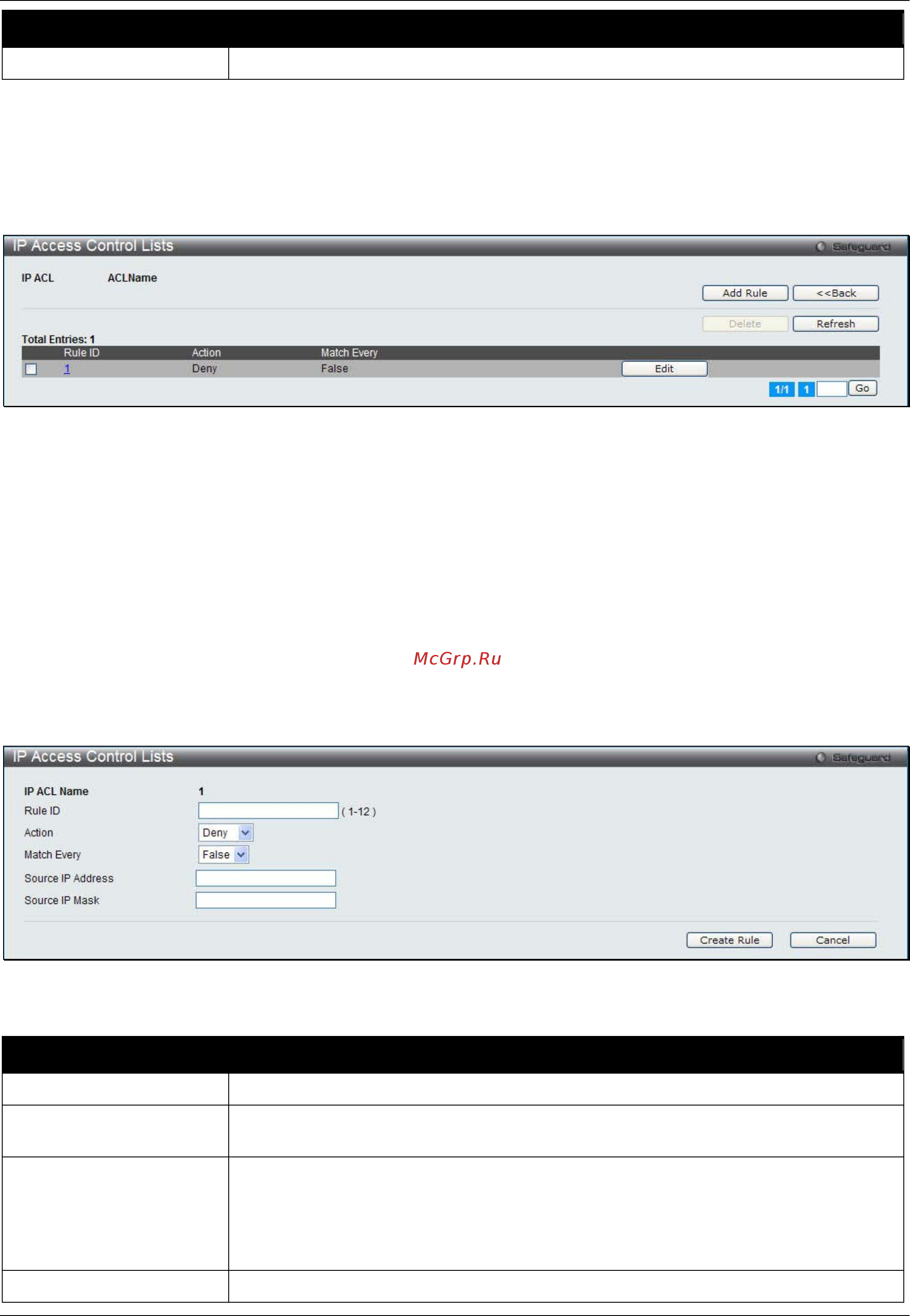

Figure 4-3 IP Access Control Lists – Add / Delete Rules window

Click the Add Rule button to create a new rule.

Click the <<Back button to return to the previous window.

Tick the check box and click the Delete button to remove the specific rule.

Click the Refresh button to update the list.

Click the Rule ID hyperlink or the Edit button to modify the specific rule.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

With different types of IP ACL, the rule settings vary.

After clicking the Add Rule button to add a rule for Standard IP ACL, the following page appears:

Figure 4-4 IP Access Control Lists – Add Rule (Standard IP ACL) window

The fields that can be configured are described below:

Parameter Description

Rule ID

Enter an ID for the rule.

Action

Use the drop-down menu to select the ACL forwarding action when a packet

matches the rule’s criteria.

Match Every Use the drop-down menu to select True or False. True means that all packets will

match the selected IP ACL and Rule, and will be either permitted or denied. When

True is selected, the option of configuring other match criteria will not be offered

since all packets match the rule. To configure specific match criteria for the rule,

select False to configure the other match criteria.

Source IP Address

Enter an IP address and a packet’s source IP address must match the address
