DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
440
entered.
Source IP Mask
Enter the source IP mask.
Click the Create Rule button to add a new rule.
Click the Cancel button to discard the configuration.
After clicking the Add Rule button to add a rule for Extended IP ACL, the following page appears:

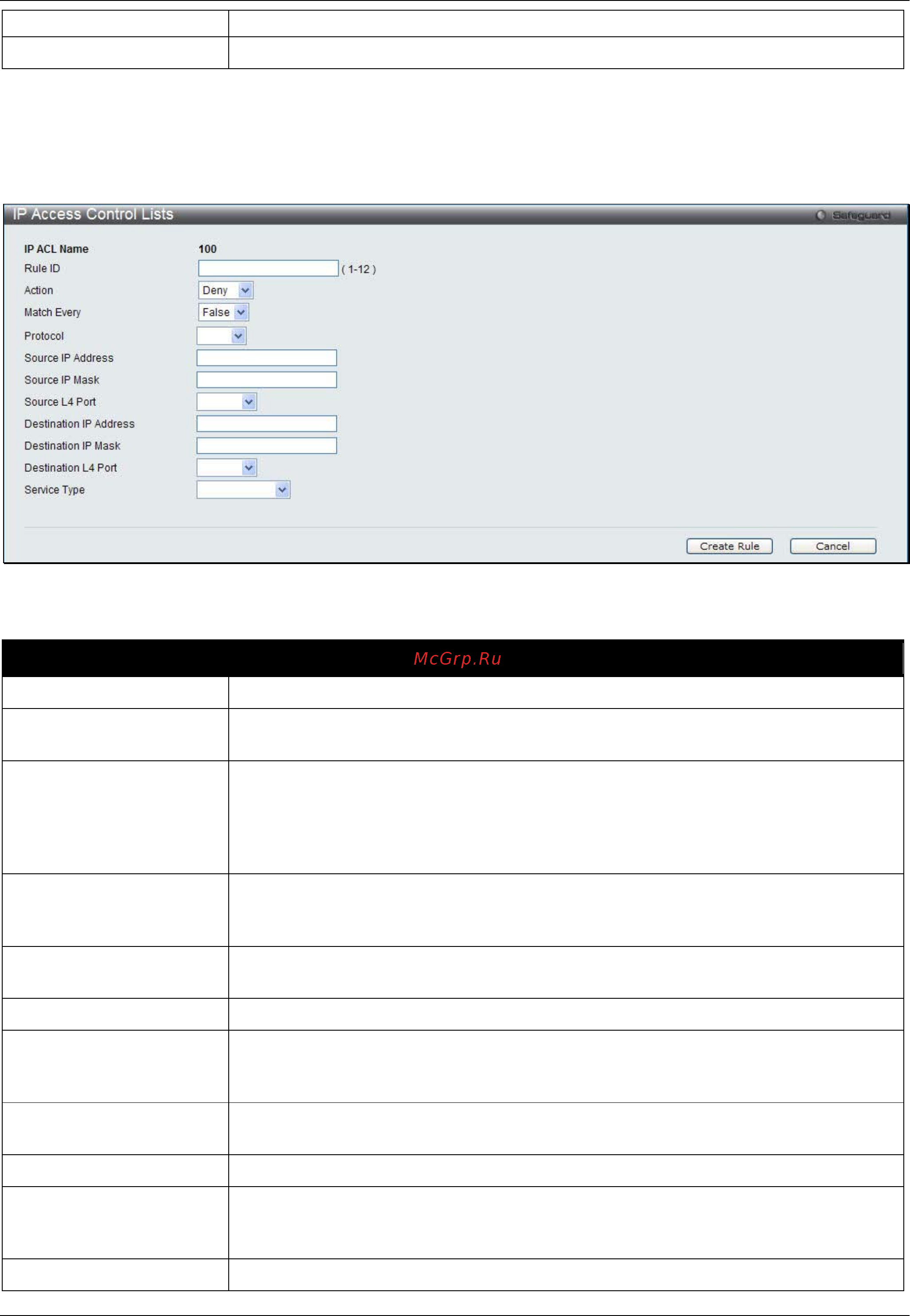

Figure 4-5 IP Access Control Lists – Add Rule (Extended IP ACL) window
The fields that can be configured are described below:
Parameter Description
Rule ID
Enter an ID for the rule.
Action
Use the drop-down menu to select the ACL forwarding action when a packet
matches the rule’s criteria.
Match Every Use the drop-down menu to select True or False. True means that all packets will
match the selected IP ACL and Rule, and will be either permitted or denied. When
True is selected, the option of configuring other match criteria will not be offered
since all packets match the rule. To configure specific match criteria for the rule,
select False to configure the other match criteria.
Protocol
Use the drop-down menu to select a packet’s IP protocol to match condition for the
selected IP ACL rule. When selecting Other, the Protocol Value field appears.
Enter a value in the field.
Source IP Address
Enter an IP address and a packet’s source IP address must match the address
entered.
Source IP Mask
Enter the source IP mask.
Source L4 Port
Use the drop-down menu to select L4 keyword of source ports to match a packet’s
TCP/UDP source port. When selecting Other, the Source Port Value field
appears. Enter a value in the field.
Destination IP Address
Enter an IP address and a packet’s destination IP address must match the address
entered.
Destination IP Mask
Enter the destination IP mask.
Destination L4 Port
Use the drop-down menu to select L4 keyword of destination ports to match a
packet’s TCP/UDP destination port. When selecting Other, Destination Port
Value appears. Enter a value in the field.
Service Type
Select one of the following three Match conditions for the extended IP ACL rule.
