DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

441

IP DSCP – Select one of the DSCP keyword values from the IP DSCP drop-down

menu. When selecting Other, the IP DSCP Value field appears. Enter a value in

the field.

IP Precedence – Enter a value between 0 and 7 in the IP Precedence field.

IP ToS – Enter a value as a hexadecimal number from 00 to FF in the IP ToS Bits

and IP ToS Mask field.

Click the Create Rule button to add a new rule.

Click the Cancel button to discard the configuration.

When clicking the Add Rule button to add a rule for Named IP ACL, the following page appears:

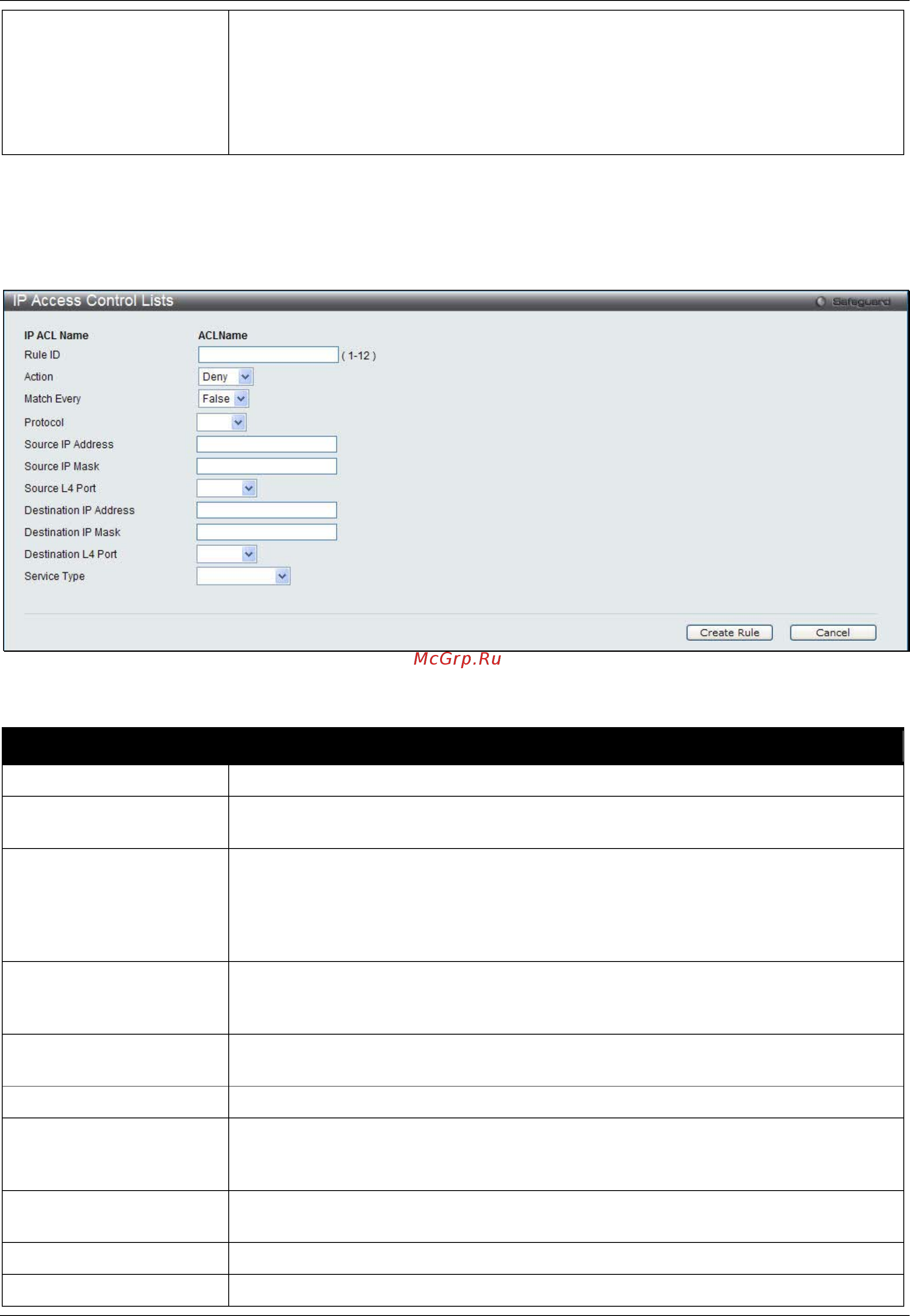

Figure 4-6 IP Access Control Lists – Add Rule (Named IP ACL) window

The fields that can be configured are described below:

Parameter Description

Rule ID

Enter an ID for the rule.

Action

Use the drop-down menu to select the ACL forwarding action when a packet

matches the rule’s criteria.

Match Every Use the drop-down menu to select True or False. True means that all packets will

match the selected IP ACL and Rule, and will be either permitted or denied. When

True is selected, the option of configuring other match criteria will not be offered

since all packets match the rule. To configure specific match criteria for the rule,

select False to configure the other match criteria.

Protocol

Use the drop-down menu to select a packet’s IP protocol to match condition for the

selected IP ACL rule. When selecting Other, the Protocol Value field appears.

Enter a value in the field.

Source IP Address

Enter an IP address and a packet’s source IP address must match the address

entered.

Source IP Mask

Enter the source IP mask.

Source L4 Port

Use the drop-down menu to select L4 keyword of source ports to match a packet’s

TCP/UDP source port. When selecting Other, the Source Port Value field

appears. Enter a value in the field.

Destination IP Address

Enter an IP address and a packet’s destination IP address must match the address

entered.

Destination IP Mask

Enter the destination IP mask.

Destination L4 Port

Use the drop-down menu to select L4 keyword of destination ports to match a
