DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

447

Source Prefix

Enter an IPv6 prefix and a packet’s source IPv6 prefix must match the address

entered.

Source Prefix Mask

Enter the source IPv6 mask.

Source L4 Port

Use the drop-down menu to select L4 keyword of source ports to match a packet’s

TCP/UDP source port. When selecting Other, the Source Port Value field

appears. Enter a value in the field.

Destination Prefix

Enter an IPv6 prefix and a packet’s destination port IPv6 prefix must match the

address entered.

Destination Prefix Mask

Enter the destination IPv6 mask.

Destination L4 Port

Use the drop-down menu to select L4 keyword of destination ports to match a

packet’s TCP/UDP destination port. When selecting Other, Destination Port

Value appears. Enter a value in the field.

Flow Label

Enter a value of IPv6 flow label.

IP DSCP Service Select one of the DSCP keyword values from the IP DSCP drop-down menu. When

selecting Other, the IP DSCP Value field appears. Enter a value in the field.

Click the Create Rule button to add a new rule.

Click the Cancel button to discard the configuration.

After clicking the Rule ID hyperlink or the Edit button, the following page appears:

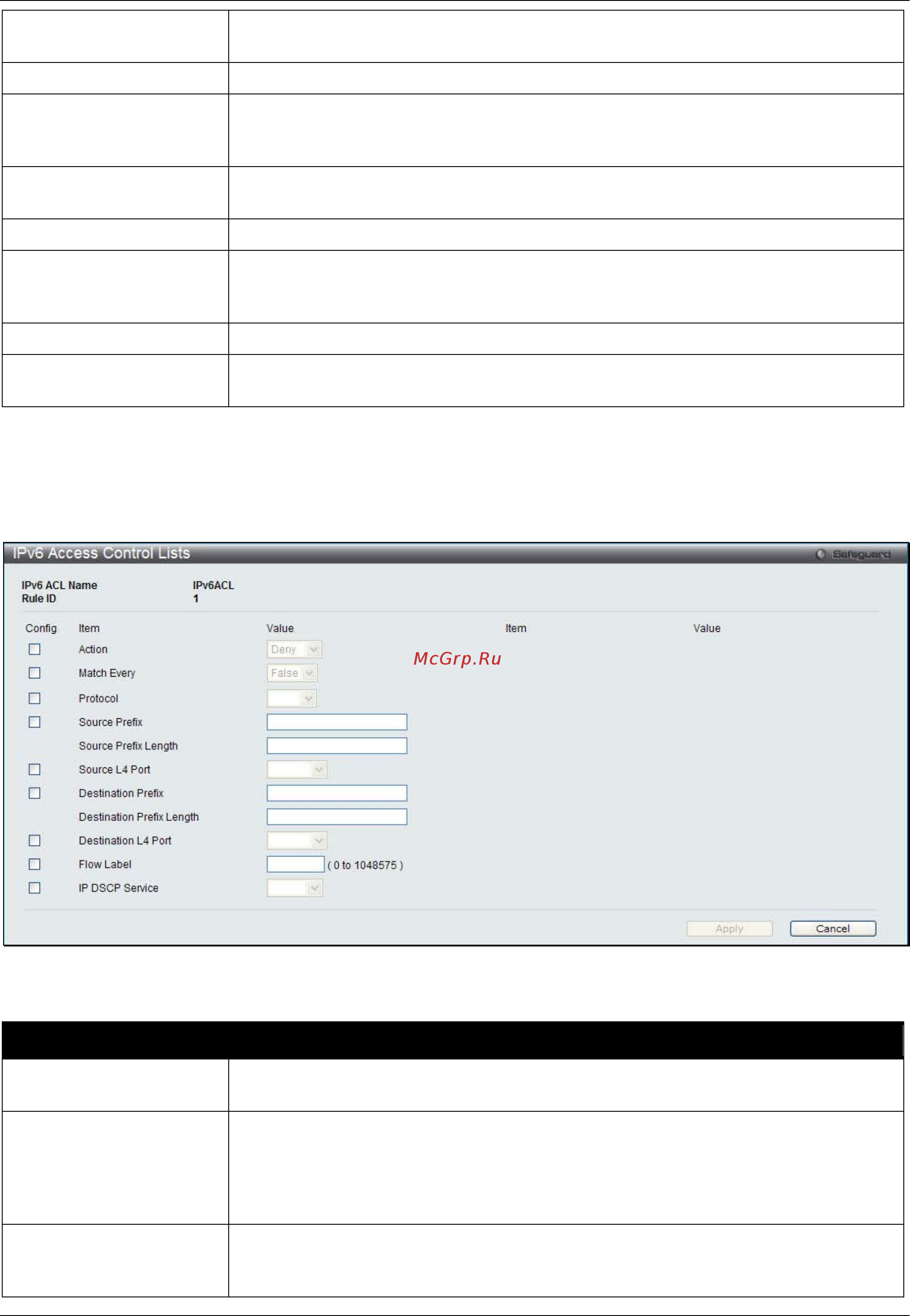

Figure 4-14 IPv6 Access Control Lists – Edit Rule window

The fields that can be configured are described below:

Parameter Description

Action

Tick the check box and use the drop-down menu to select the ACL forwarding

action.

Match Every Tick the check box and use the drop-down menu to select True or False. True

means that all packets will match the selected IPv6 ACL and Rule, and will be

either permitted or denied. When True is selected, the option of configuring other

match criteria will not be offered since all packets match the rule. To configure

specific match criteria for the rule, select False to configure the other match criteria.

Protocol

Tick the check box and use the drop-down menu to select a packet’s IP protocol to

match condition for the selected IP ACL rule. When selecting Other, the Protocol

Value

field appears. Enter a value in the field.
