DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

446

After clicking the Add / Delete Rules button or the specific IPv6 ACL Name hyperlink, the following page will

appear:

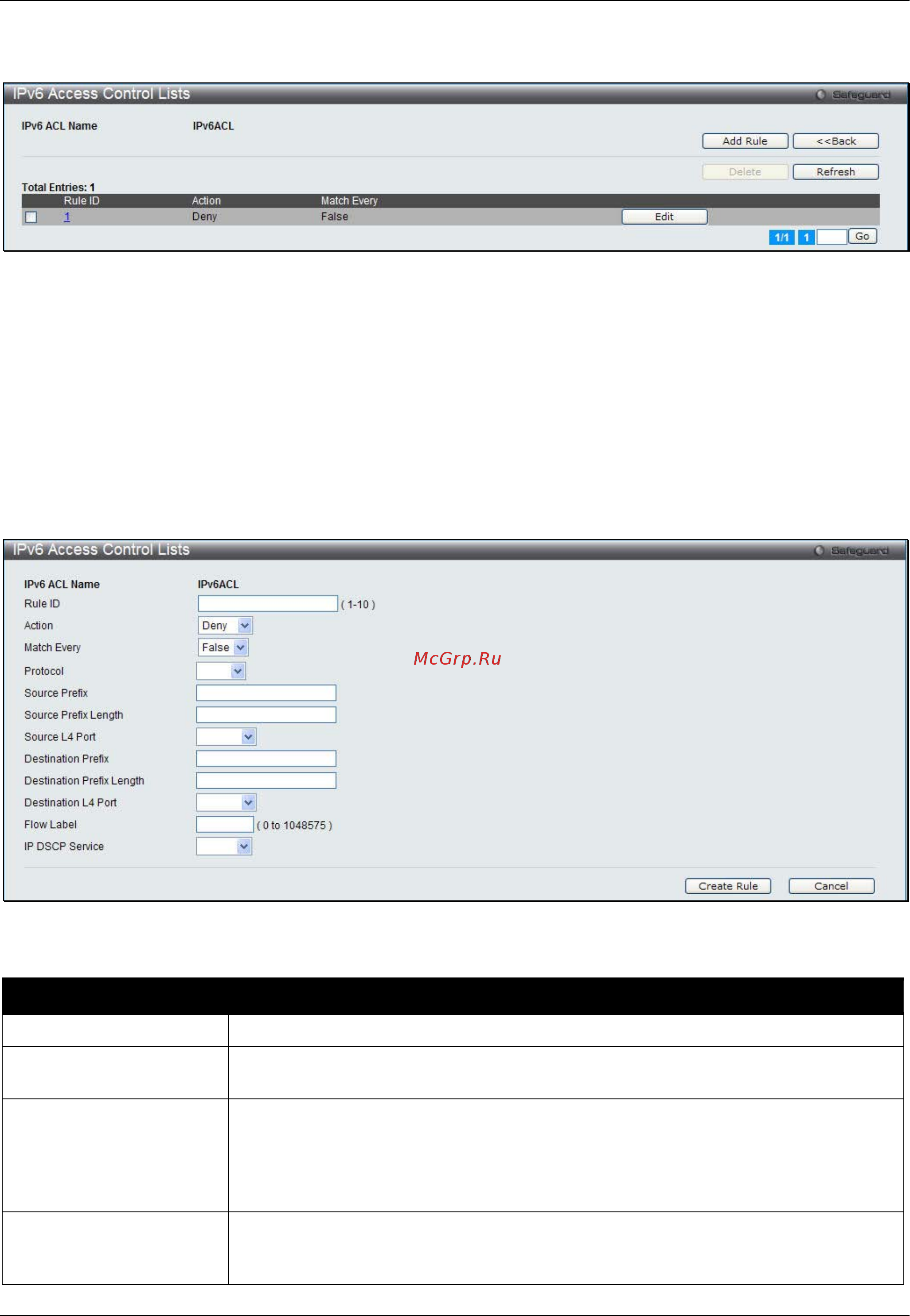

Figure 4-12 IPv6 Access Control Lists – Add / Delete Rules window

Click the Add Rule button to create a new rule.

Click the <<Back button to return to the previous window.

Tick the check box and click the Delete button to remove the specific rule.

Click the Refresh button to update the list.

Click the Rule ID hyperlink or the Edit button to modify the specific rule.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Add Rule button, the following page appears:

Figure 4-13 IPv6 Access Control Lists – Add Rule window

The fields that can be configured are described below:

Parameter Description

Rule ID

Enter an ID for the rule.

Action

Use the drop-down menu to select the ACL forwarding action when a packet

matches the rule’s criteria.

Match Every Use the drop-down menu to select True or False. True means that all packets will

match the selected IPv6 ACL and Rule, and will be either permitted or denied.

When True is selected, the option of configuring other match criteria will not be

offered since all packets match the rule. To configure specific match criteria for the

rule, select False to configure the other match criteria.

Protocol

Use the drop-down menu to select a packet’s IP protocol to match condition for the

selected IP ACL rule. When selecting Other, the Protocol Value field appears.

Enter a value in the field.
