DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
107
Click the Edit button to configure the MLD Snooping Multicast VLAN Settings for the specific entry.
Click the Delete button to remove the specific entry.
Click the
Profile List
link to configure the MLD Snooping Multicast VLAN Settings for the specific entry.
After clicking the Edit button, the following page will appear:

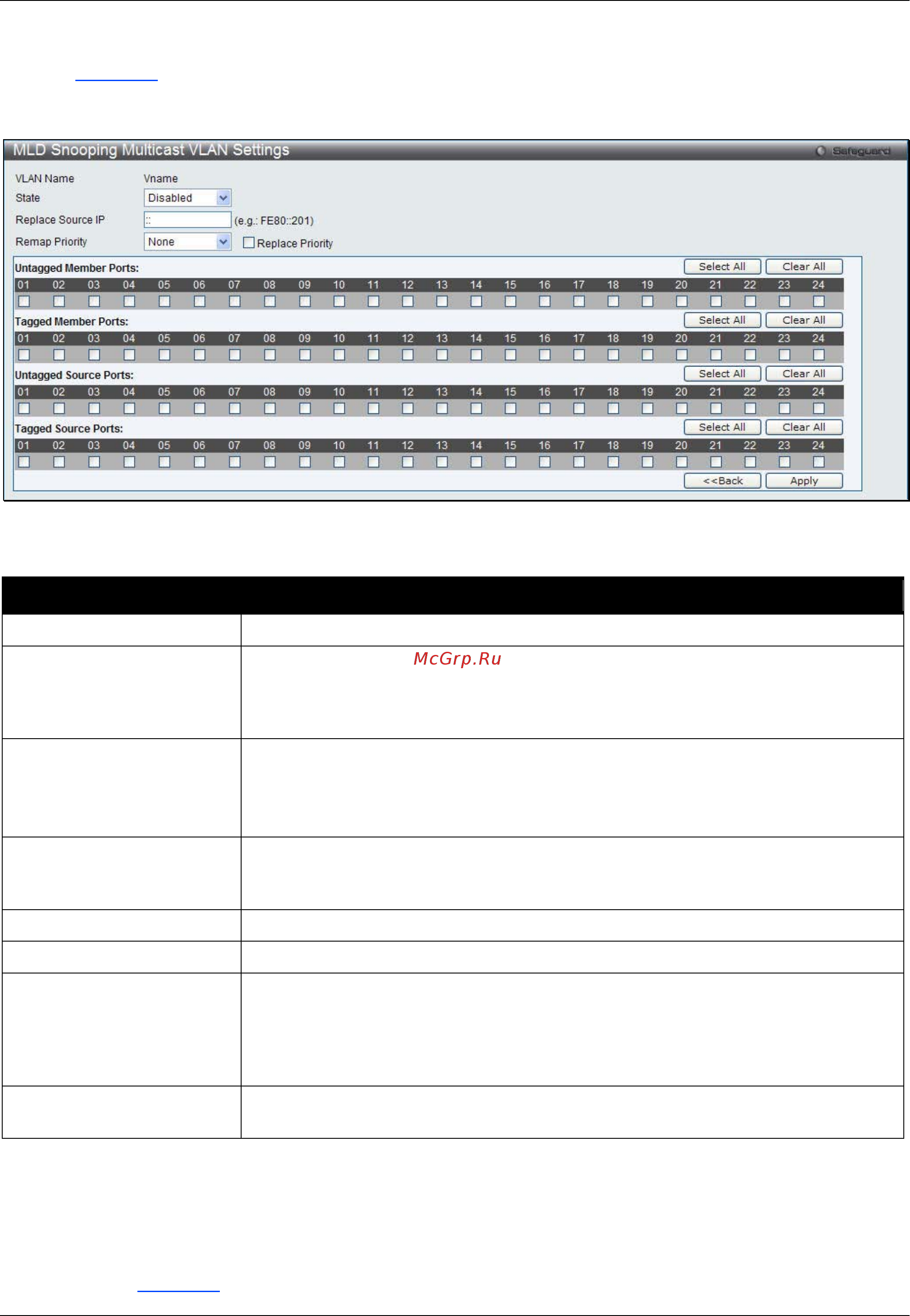

Figure 7-74 MLD Snooping Multicast VLAN Settings – Edit window
The fields that can be configured are described below:
Parameter Description
State
Use the drop-down menu to enable or disable the state.
Replace Source IP
With the MLD snooping function, the MLD report packet sent by the host will be
forwarded to the source port. Before forwarding of the packet, the source IP
address in the join packet needs to be replaced by this IP address. If none is
specified, the source IP address will not be replaced.
Remap Priority 0-7 – The remap priority value (0 to 7) to be associated with the data traffic to be
forwarded on the multicast VLAN.
None – If this is specified, the packet’s original priority is used. The default setting
is None.
Replace Priority
Tick the check box to specify that the packet’s priority will be changed by the
switch, based on the remap priority. This flag will only take effect when the remap
priority is set.
Untagged Member Ports
Specify the untagged member port of the multicast VLAN.
Tagged Member Ports
Specify the tagged member port of the multicast VLAN.
Untagged Source Ports
Specify the source port or range of source ports as untagged members of the
multicast VLAN. The PVID of the untagged source port is automatically changed
to the multicast VLAN. Source ports must be either tagged or untagged for any
single multicast VLAN, i.e. both types cannot be members of the same multicast
VLAN.
Tagged Source Ports
Specify the source port or range of source ports as tagged members of the
multicast VLAN.
Click the Select All button to select all the ports for configuration.
Click the Clear All button to unselect all the ports for configuration.
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous window.
After clicking the
Profile List link, the following page will appear:
