DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

153

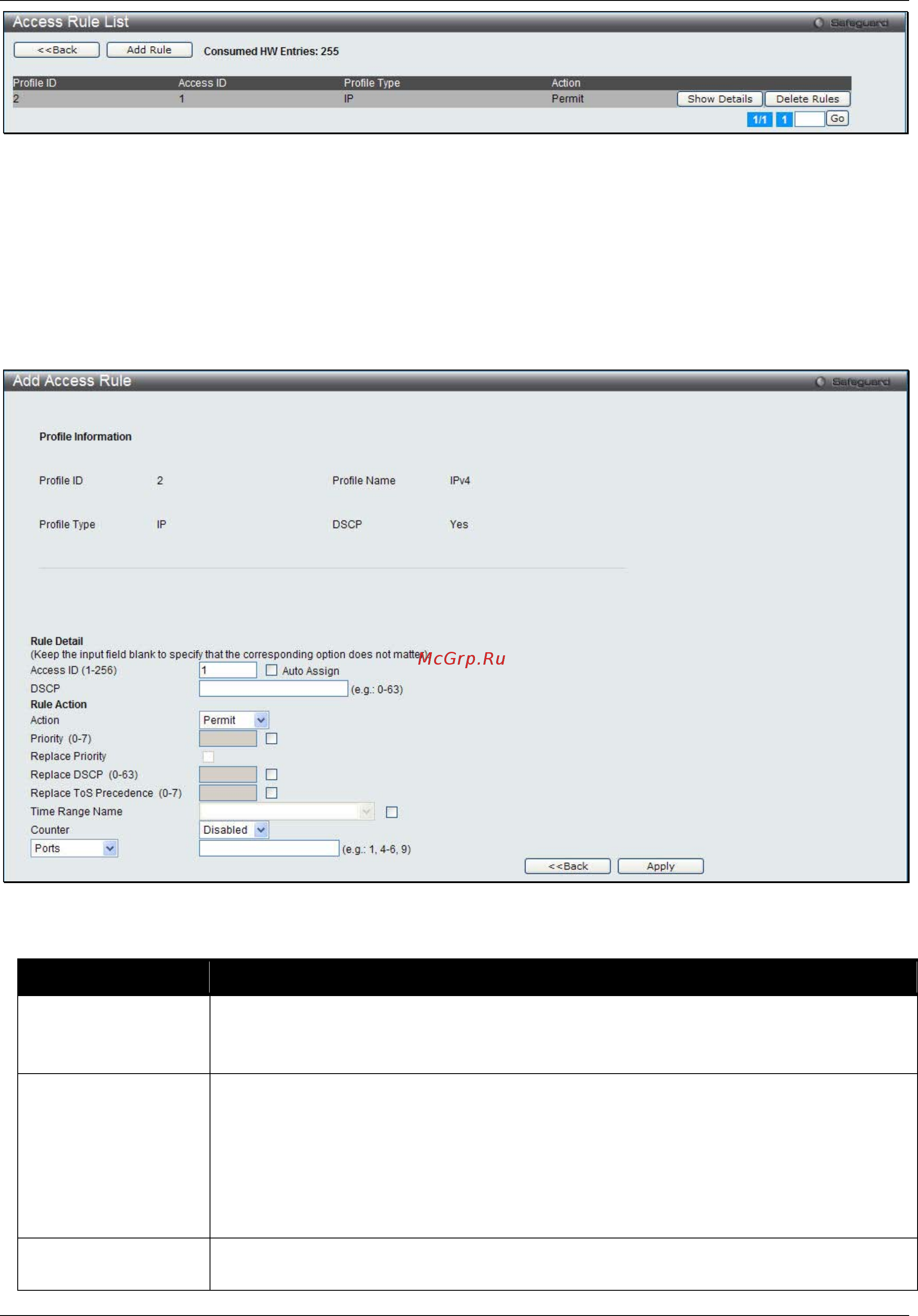

Figure 10-10 Access Rule List window (IPv4 ACL)

Click the Add Rule button to create a new ACL rule in this profile.

Click the <<Back button to return to the previous window.

Click the Show Details button to view more information about the specific rule created.

Click the Delete Rules button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Add Rule button, the following page will appear:

Figure 10-11 Add Access Rule (IPv4 ACL)

The fields that can be configured are described below:

Parameter Description

Access ID (1-256) Type in a unique identifier number for this access. This value can be set from 1 to 256.

Auto Assign – Ticking this check box will instruct the Switch to automatically assign an

Access ID for the rule being created.

Action

Select Permit to specify that the packets that match the access profile are forwarded by

the Switch, according to any additional rule added (see below).

Select Deny to specify that the packets that match the access profile are not forwarded

by the Switch and will be filtered.

Select Mirror to specify that packets that match the access profile are mirrored to a port

defined in the config mirror port command. Port Mirroring must be enabled and a target

port must be set.

Priority (0-7)

Tick the corresponding check box if you want to re-write the 802.1p default priority of a

packet to the value entered in the Priority field, which meets the criteria specified
