DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

178

Parameter Description

Profile ID

Use the drop-down menu to select it and enter the Profile ID for the flow meter.

Profile Name

Use the drop-down menu to select it and enter the Profile Name for the flow meter.

Access ID (1-256)

Here the user can enter the Access ID for the flow meter.

Click the Find button to locate a specific entry based on the information entered.

Click the Add button to add a new entry based on the information entered.

Click the View All button to display all the existing entries.

Click the Delete All button to remove all the entries listed.

Click the Modify button to re-configure the specific entry.

Click the View button to display the information of the specific entry.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Add or Modify button, the following page will appear:

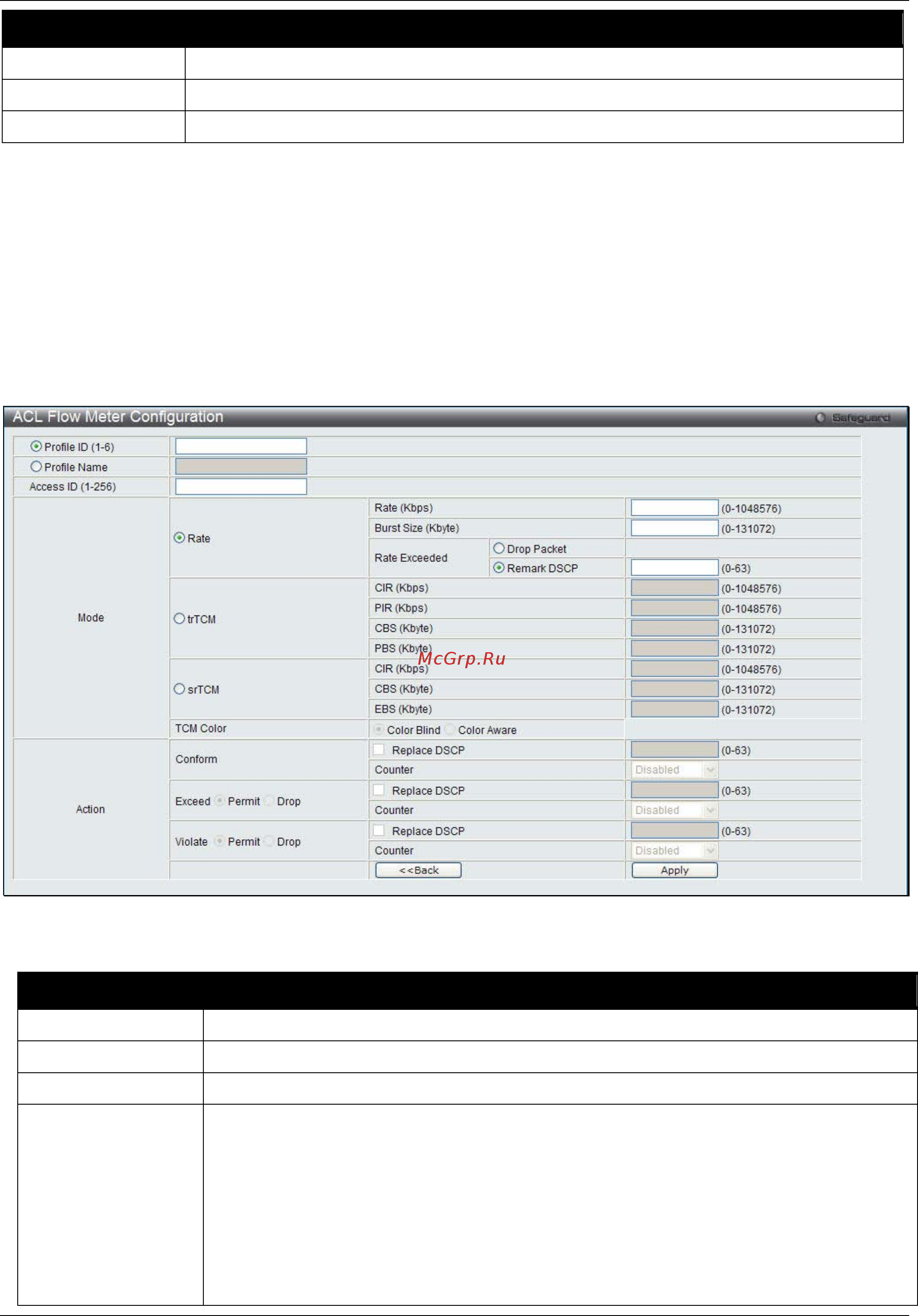

Figure 10-46 ACL Flow meter Configuration window

The fields that can be configured are described below:

Parameter Description

Profile ID (1-6)

Click the radio button and enter the Profile ID for the flow meter.

Profile Name

Click the radio button and enter the Profile Name for the flow meter.

Access ID (1-256)

Enter the Access ID for the flow meter.

Mode Rate – Specify the rate for single rate two color mode.

Rate – Specify the committed bandwidth in Kbps for the flow.

Burst Size – Specify the burst size for the single rate two color mode. The unit is in

kilobyte.

Rate Exceeded – Specify the action for packets that exceed the committed rate in single

rate two color mode. The action can be specified as one of the following:

Drop Packet – Drop the packet immediately.

Remark DSCP – Mark the packet with a specified DSCP. The packet is set to drop for
