Click the Show All Profiles button to navigate back to the Access Profile List Page.

After clicking the Add/View Rules button, the following page will appear:

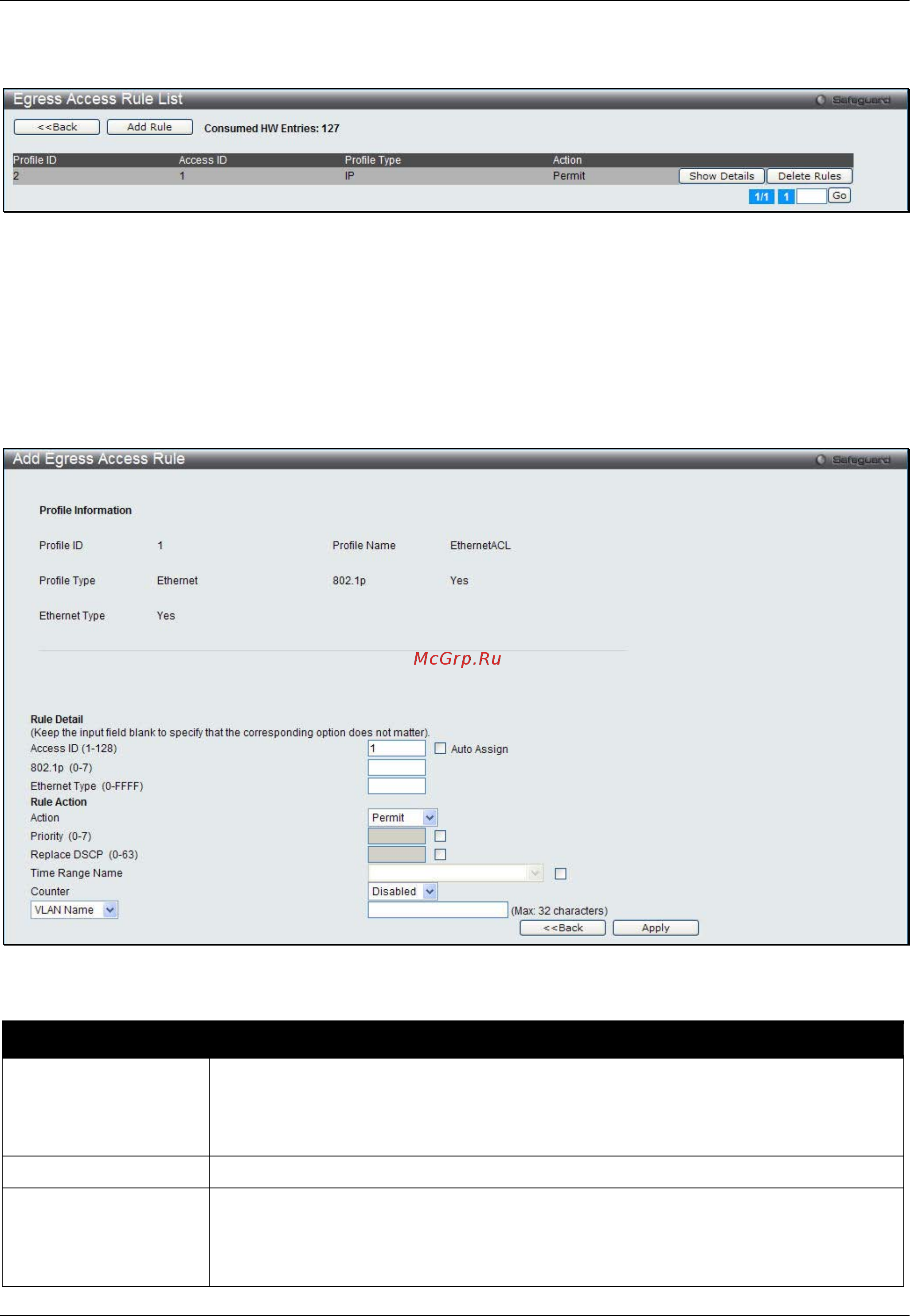

Figure 10-56 Egress Access Rule List window (IPv4 ACL)

Click the Add Rule button to create a new ACL rule in this profile.

Click the <<Back button to return to the previous window.

Click the Show Details button to view more information about the specific rule created.

Click the Delete Rules button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Add Rule button, the following page will appear:

Figure 10-57 Add Egress Access Rule (IPv4 ACL)

The fields that can be configured are described below:

Parameter Description

Access ID (1-128) Type in a unique identifier number for this access. This value can be set from 1 to

128.

Auto Assign – Ticking this check box will instruct the Switch to automatically assign

an Access ID for the rule being created.

DSCP

Specify the value of DSCP. The DSCP value ranges from 0 to 63.

Action

Select Permit to specify that the packets that match the access profile are forwarded

by the Switch, according to any additional rule added (see below).

Select Deny to specify that the packets that match the access profile are not

forwarded by the Switch and will be filtered.
