DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

192

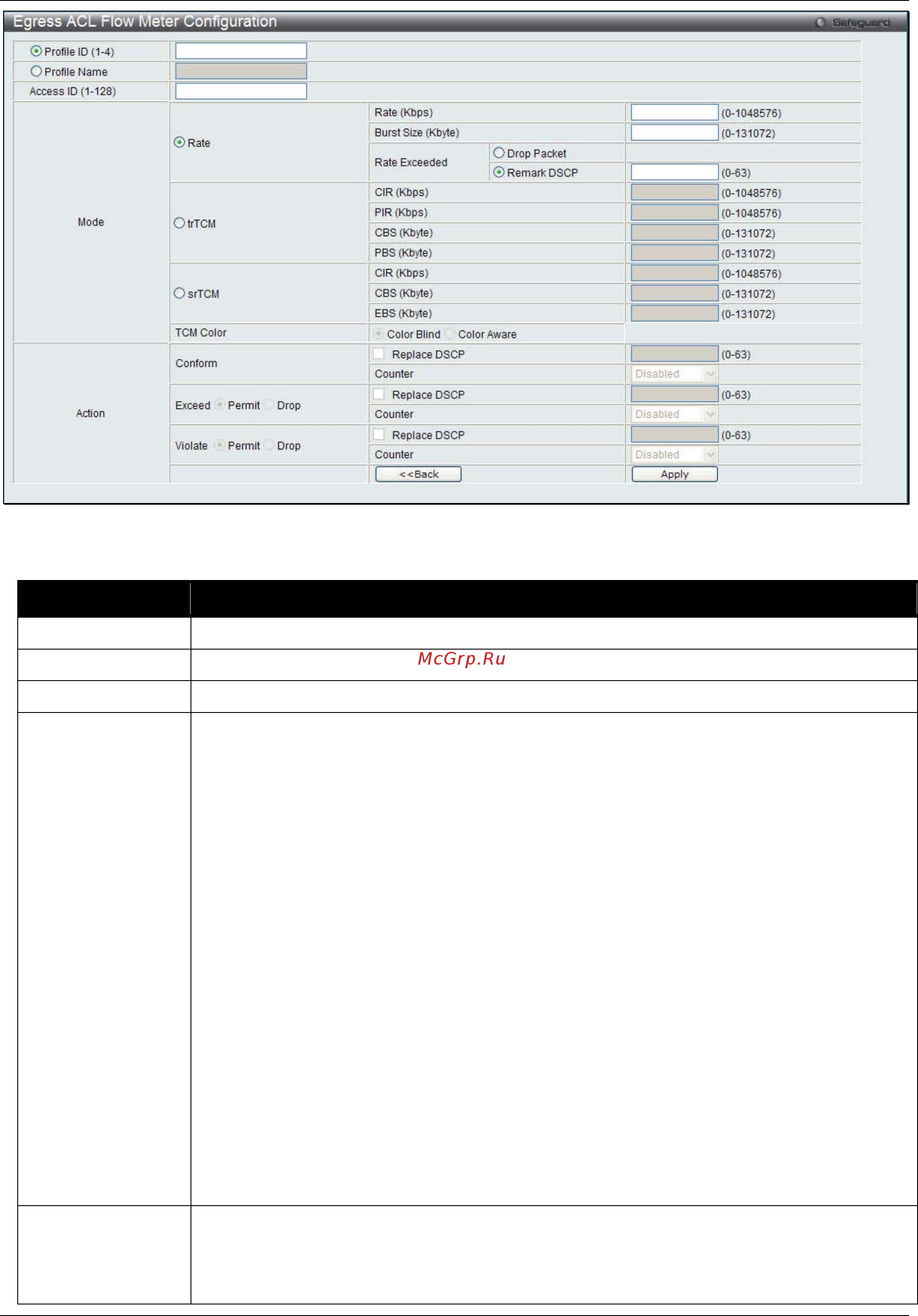

Figure 10-65 Egress ACL Flow Meter Configuration window

The fields that can be configured are described below:

Parameter Description

Profile ID (1-4)

Here the user can enter the Profile ID for the flow meter.

Profile Name

Here the user can enter the Profile Name for the flow meter.

Access ID (1-128)

Here the user can enter the Access ID for the flow meter.

Mode Rate – Specify the rate for single rate two color mode.

Rate – Specify the committed bandwidth in Kbps for the flow.

Burst Size – Specify the burst size for the single rate two color mode. The unit is in

kilobyte.

Rate Exceeded – Specify the action for packets that exceed the committed rate in single

rate two color mode. The action can be specified as one of the following:

Drop Packet – Drop the packet immediately.

Remark DSCP – Mark the packet with a specified DSCP. The packet is set to drop for

packets with a high precedence.

trTCM – Specify the “two-rate three-color mode.”

CIR – Specify the Committed information Rate. The unit is Kbps. CIR should always be

equal or less than PIR.

PIR – Specify the Peak information Rate. The unit is Kbps. PIR should always be equal to

or greater than CIR.

CBS – Specify the Committed Burst Size. The unit is in kilobyte.

PBS – Specify the Peak Burst Size. The unit is in kilobyte.

srTCM – Specify the “single-rate three-color mode”.

CIR – Specify the Committed Information Rate. The unit is in kilobyte.

CBS – Specify the Committed Burst Size. The unit is in kilobyte.

EBS – Specify the Excess Burst Size. The unit is in kilobyte.

Action Conform – This field denotes the green packet flow. Green packet flows may have their

DSCP field rewritten to a value stated in this field. Users may also choose to count green

packets by using counter parameter.

Replace DSCP – Packets that are in the green flow may have their DSCP field rewritten
