Click the Edit button to re-configure the specific entry.

Click the Delete button to remove the specific entry.

NOTE: The MD Name value should be less than 22 characters.

To add a maintenance association (MA), click on the Add MA button.

After clicking the Add MA button, the following page will appear:

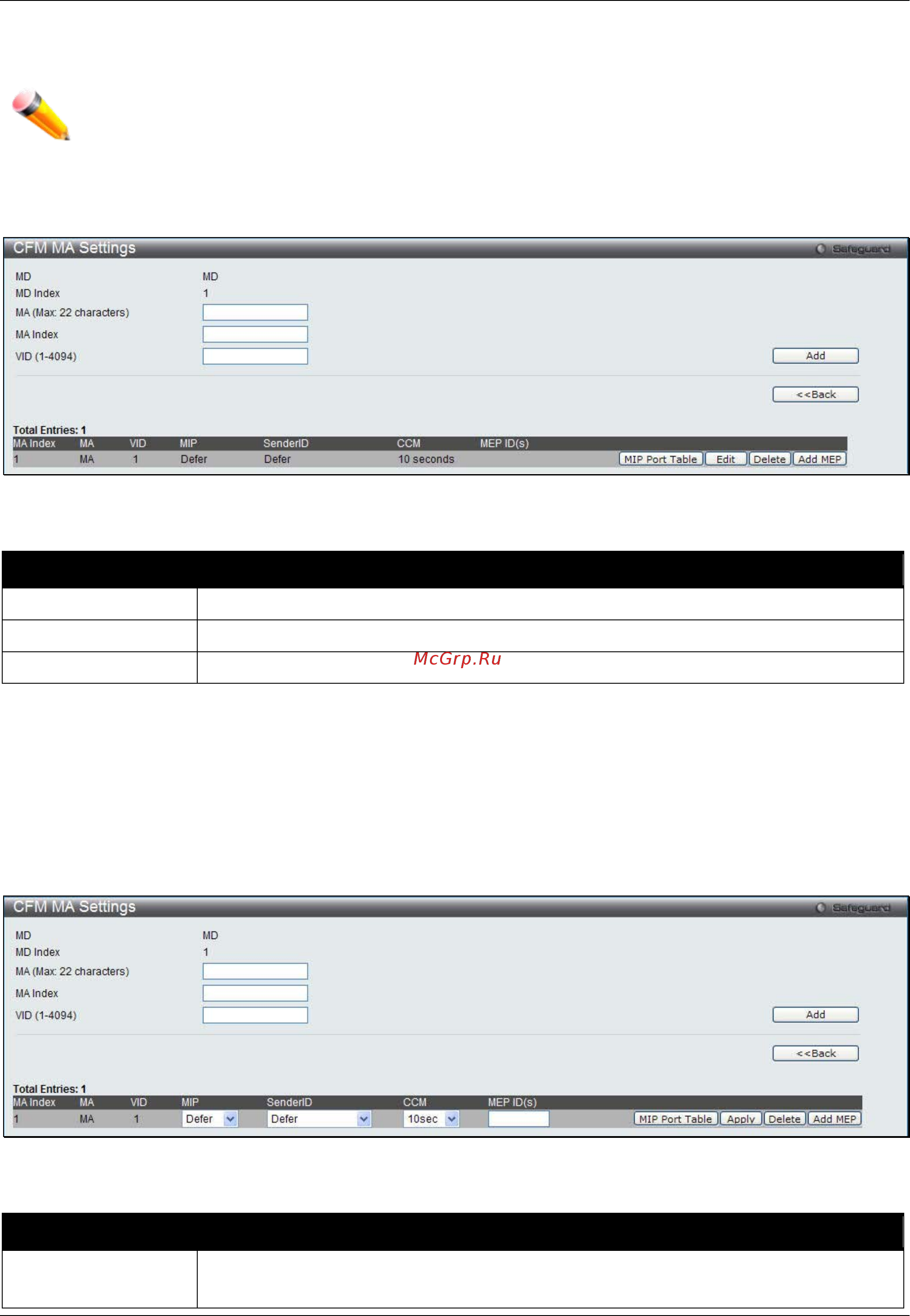

Figure 13-2 CFM MA Settings Window

The fields that can be configured are described below:

Parameter Description

Here the user can enter the maintenance association name.

MA Index

Here the user can enter the maintenance association index.

VID (1-4094)

VLAN Identifier. Different MA must be associated with different VLANs.

Click the Add button to add a new entry based on the information entered.

Click the <<Back button to discard the changes made and return to the previous window.

Click the Edit button to re-configure the specific entry.

Click the Delete button to remove the specific entry.

Click the MIP Port Table button to view the CFM MIP Table.

Click the Add MEP button to add a Maintenance End Point entry.

After click in the Edit button the following window appears:

Figure 13-3 CFM MA Settings - Edit Window

The fields that can be configured are described below:

Parameter Description

MIP

This is the control creation of MIPs.

None - Don’t create MIPs.
