After clicking the link or the tab, the following page will appear:

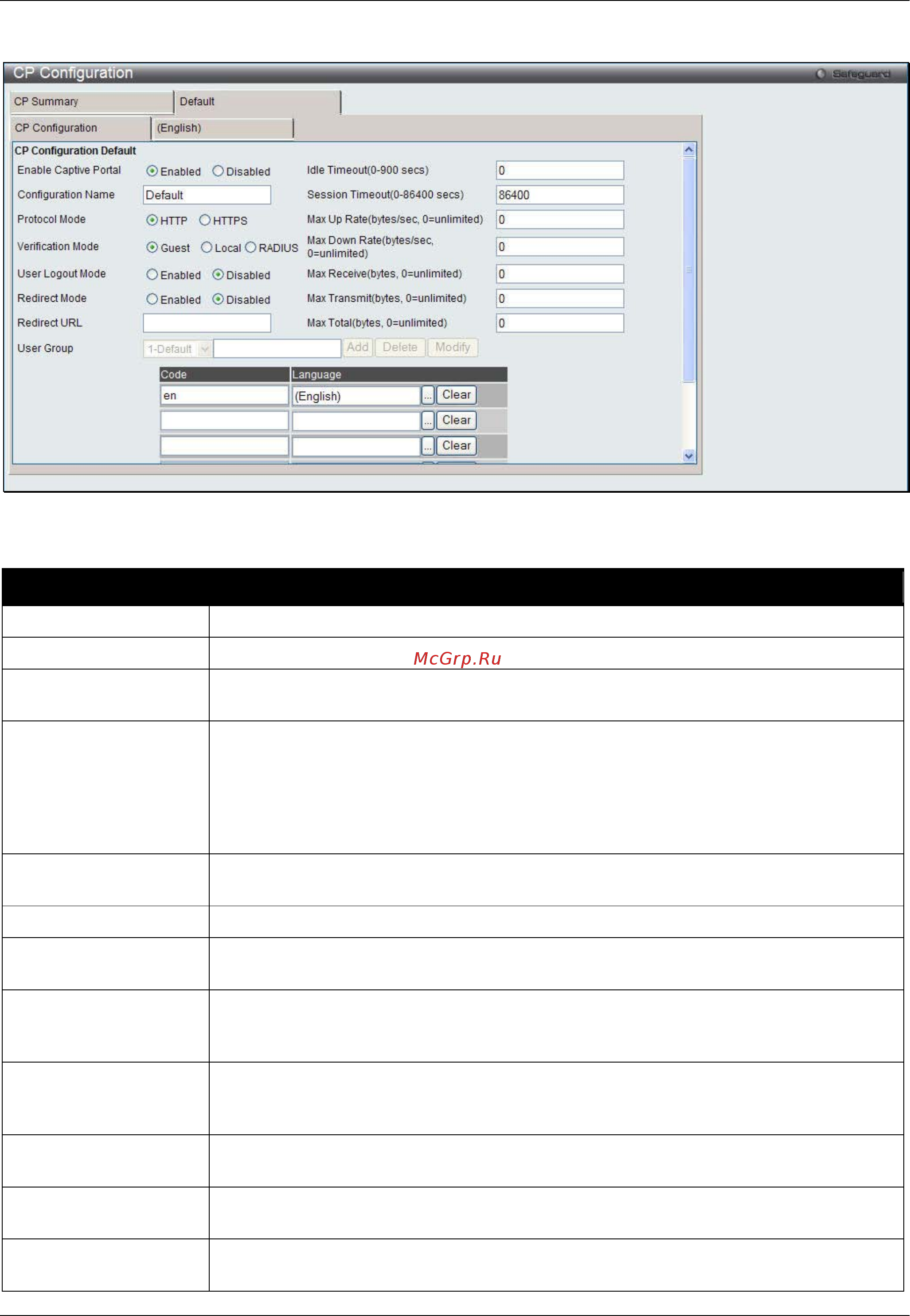

Figure 1-3 CP Configuration - Edit window

The fields that can be configured are described below:

Parameter Description

Enable Captive Portal

Click the radio buttons to enable or disable the CP configuration.

Configuration Name

Enter to modify the configuration name.

Protocol Mode

Click the radio buttons to use HTTP or HTTPS as the protocol that CP configuration is

used during verification process.

Verification Mode

Click the radio buttons to select the verification mode for the CP to verify clients.

• Guest – The user does not need to be authenticated by a database.

• Local – The Switch uses a local database to authenticate users.

• RADIUS – The Switch uses a database on a remote RADIUS server to

authenticate users.

User Logout Mode

Click the radio buttons to enable or disable the ability for an authenticated user to de-

authenticate from the network.

Redirect Mode

Click the radio buttons to enable or disable the redirect mode for a CP configuration.

Redirect URL

When the Redirect Mode is enabled, enter the URL to which the newly authenticated

client is redirected.

Idle Time

Enter the idle time in seconds to allow a user remain idle before automatically being

logged out. The value 0 indicates that the timeout is not enforced. The default value is

Session Timeout

Enter the waiting time in seconds before terminating a session. A user is logged out

once the session timeout is reached. The value 0 indicates that the timeout is not

enforced.

Max Up Rate

Enter the maximum rate, in bytes per second, that a client can transmit data into the

network when using the captive portal. The rate is between 0 and 536870911.

Max Down Rate

Enter the maximum rate, in bytes per second, that a client can receive data from the

network when using the captive portal. The rate is between 0 and 536870911.

Max Receive

Enter the maximum number of bytes that a client is allowed to receive when using the

captive portal. After this limit has been reached the user will be disconnected.
