DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
317
User Label
Enter the text to display next to the user name text box.
Password Label
Enter the text to display next to the password text box.
Button Label
Enter the text to display on the button for users to click and connect to the network.
Acceptance Use
Policy Text Box
Enter the text to display in the Acceptance Use Policy text box. The acceptance use
policy instructs users about the conditions under which they are allowed to access the
network.
Acceptance Use
Policy Check Box
Enter the text to display next to the check box to indicate that the user has to accept
the terms of use.
Instructional Text
Enter the detailed information to instruct users to authenticate. This text appears
under the button.
Denied message
Enter the message to display when the user does not provide valid authentication
information.
Resource Message
Enter the message to display when the system has rejected authentication due to
system resource limitations.
Timeout Message
Enter the message to display when the system has rejected authentication because
the authentication transaction took too long.
Busy Message
Enter the message to display when the CP is processing the authentication request.
No Accept Message
Enter the message to display when the user did not tick the Acceptance Use Policy
check box.
Click the Apply button to accept the changes made.
Click the Clear button to wipe all the configurations and set back to the default settings.
Click the Preview button to view the result of the web page.
Select Welcome Page from the drop-down menu on the top of the page to see the following page:

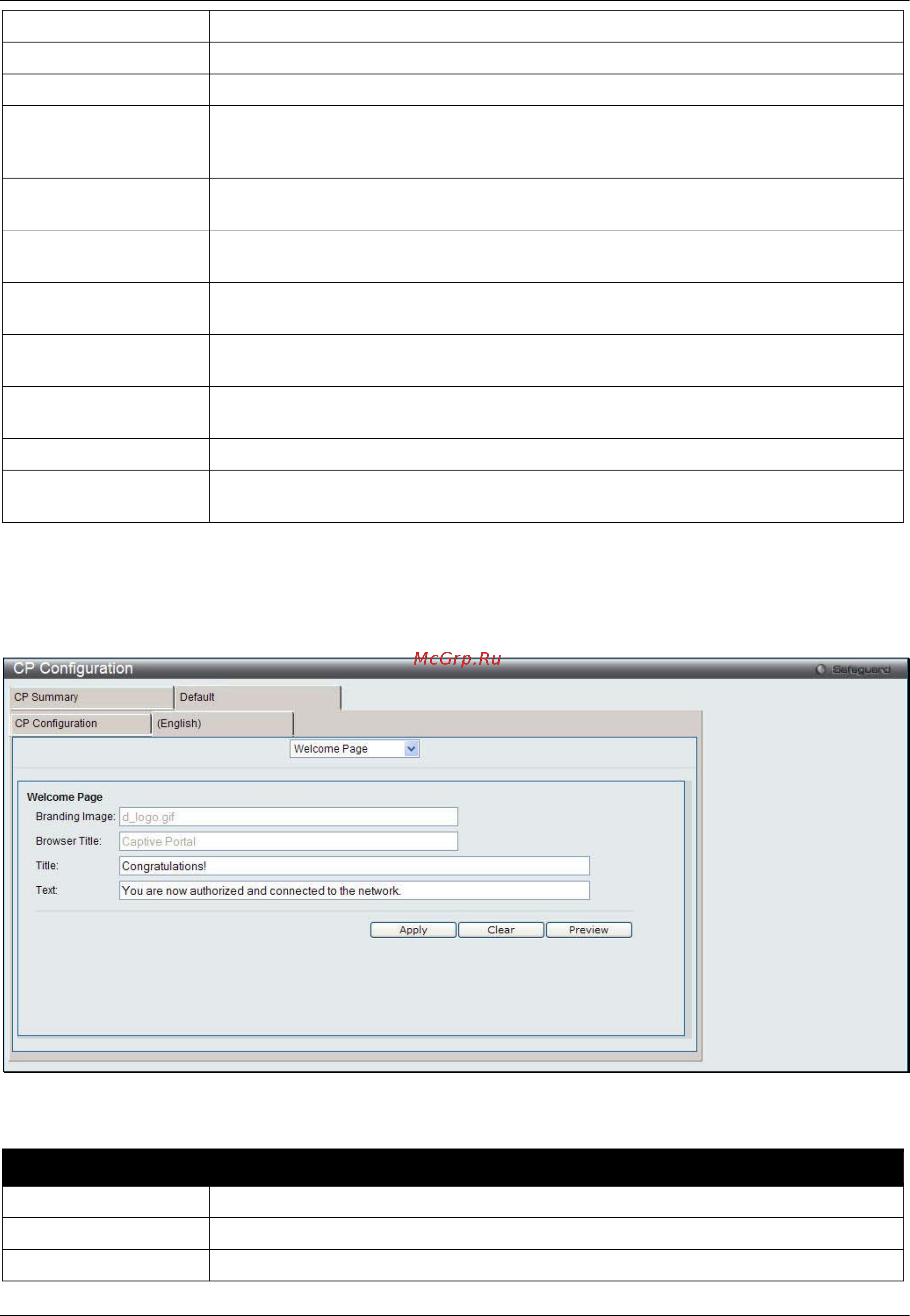

Figure 1-6 CP Configuration – Customize window (Welcome Page)
The fields that can be displayed or configured are described below:
Parameter Description
Branding Image
Display the name of the current branding image on the Welcome Page.
Browser Title
Display the text to display on the client’s web browser title bar or tab.
Title
Enter the title to greet the user after successfully connecting to the network.
