DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
323

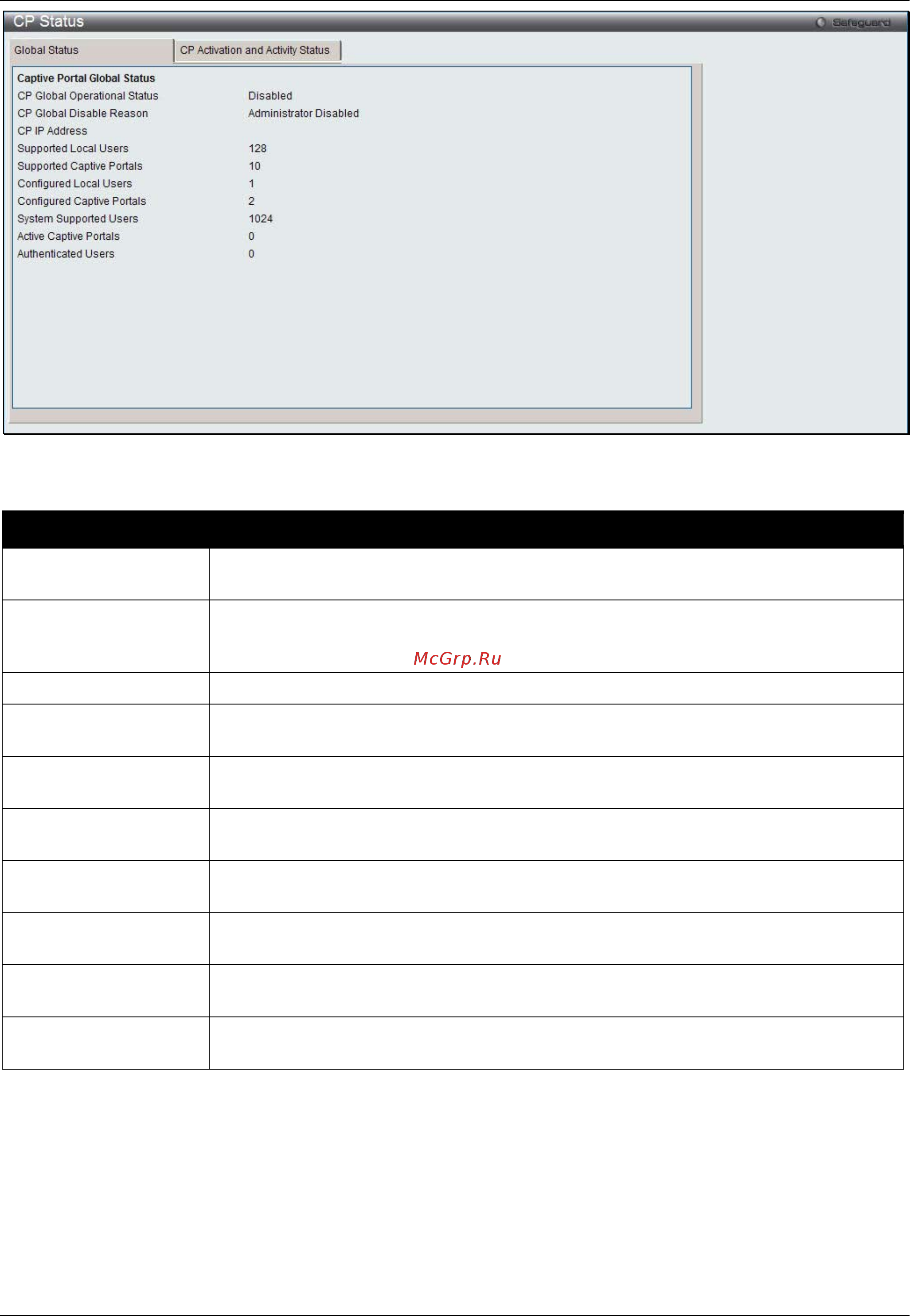

Figure 1-13 CP Global Status window
The fields that can be displayed are described below:
Parameter Description
CP Global
Operational Status
Display the status of the CP operational status.
CP Global Disable
Reason
When captive portal is disabled, the field displays the reason being disabled.
Available reasons are: Administrator Disabled, IP Address Not Configured, No IP
Routing Interface and Routing Disabled.
CP IP Address
Display the captive portal IP address.
Supported Local
Users
Display the number of entries that the Local User database supports.
Supported Captive
Portals
Display the number of supported captive portals in the system.
Configured Local
Users
Display the number of users configured in the system.
Configured Captive
Portals
Display the number of captive portals configured on the Switch.
System Supported
Users
Display the number of authenticated users that the system can support.
Active Captive
Portals
Display the number of captive portal instances that are operationally enabled.
Authenticated Users
Display the number of users currently authenticated to all captive portal instances on
the Switch.
After clicking the CP Activation and Activity Status tab, the following page will appear:
