DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
335
Transmitted
WLAN Packets
Transmitted
Total packets transmitted across all APs managed by the switch.
WLAN Bytes Received
Total bytes received across all APs managed by the switch.
WLAN Packets
Received
Total packets received across all APs managed by the switch.
WLAN Bytes Transmit
Dropped
Total bytes transmitted across all APs managed by the switch that were dropped.
WLAN Packets Transmit
Dropped
Total packets transmitted across all APs managed by the switch that were dropped.
WLAN Bytes Received
Dropped
Total bytes received across all APs managed by the switch that were dropped.
WLAN Packets Receive
Dropped
Total packets received across all APs managed by the switch that were dropped.

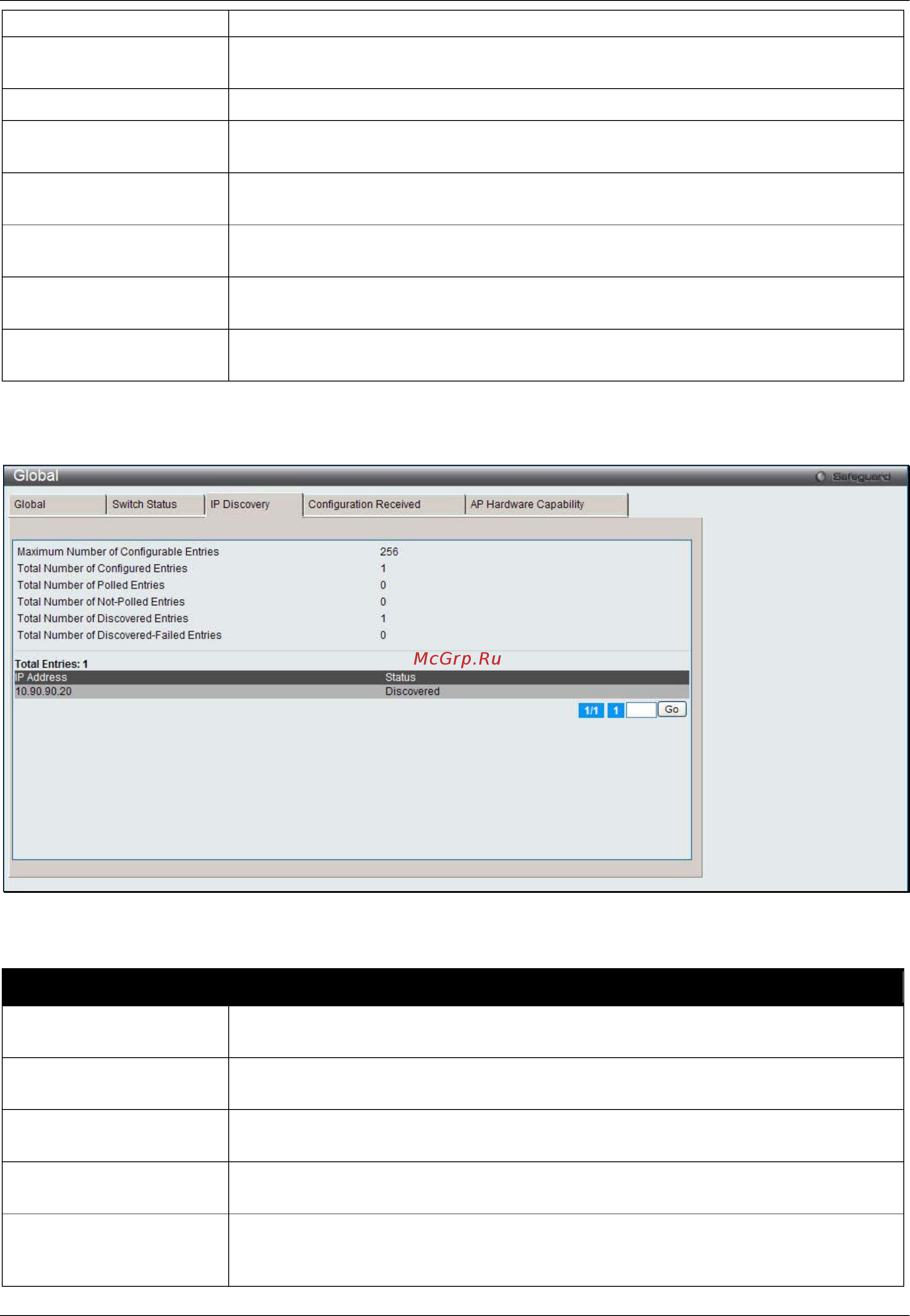

After clicking the IP Discovery tab, the following page will appear:
Figure 2-3 IP Discovery window
The fields that can be displayed are described below:
Parameter Description
Maximum Number of
Configurable entries
Display the maximum number of IP addresses that can be configured in the IP
Discovery list.
Total Number of
Configured Entries
Display the number of IP addresses that have been configured in the IP Discovery
list.
Total Number of Polled
Entries
Display the amount of the IP addresses in the IP Discovery list the switch has
attempted to contact.
Total Number of Not-
Polled Entries
Display the amount of the IP addresses in the IP Discovery list the switch has not
attempted to contact.
Total Number of
Discovered Entries
Display the amount of devices (peer switches or APs) the switch has successfully
discovered, authenticated, and validated by polling the IP address configured in the
IP Discovery list.
