DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
373
Bytes Transmit Dropped
Number of bytes transmitted to the client station that were dropped.
Fragments Received
Total fragmented packets received from the client station.
Fragments Transmitted
Total fragmented packets transmitted to the client station.
Transmit Retries
Number of times transmits to client station succeeded after one or more retries.
Transmit Retries Failed
Number of times transmits to client station failed after one or more retries.
Duplicates Received
Total duplicate packets received from the client station.
After clicking the Session Detail tab under the Statistics tab, the following page will appear:
This page is used to display information about the traffic that a wireless client receives and transmits while it is
connected to the same WLAN network shared by APs that the switch manages. Each client is identified by its MAC
address

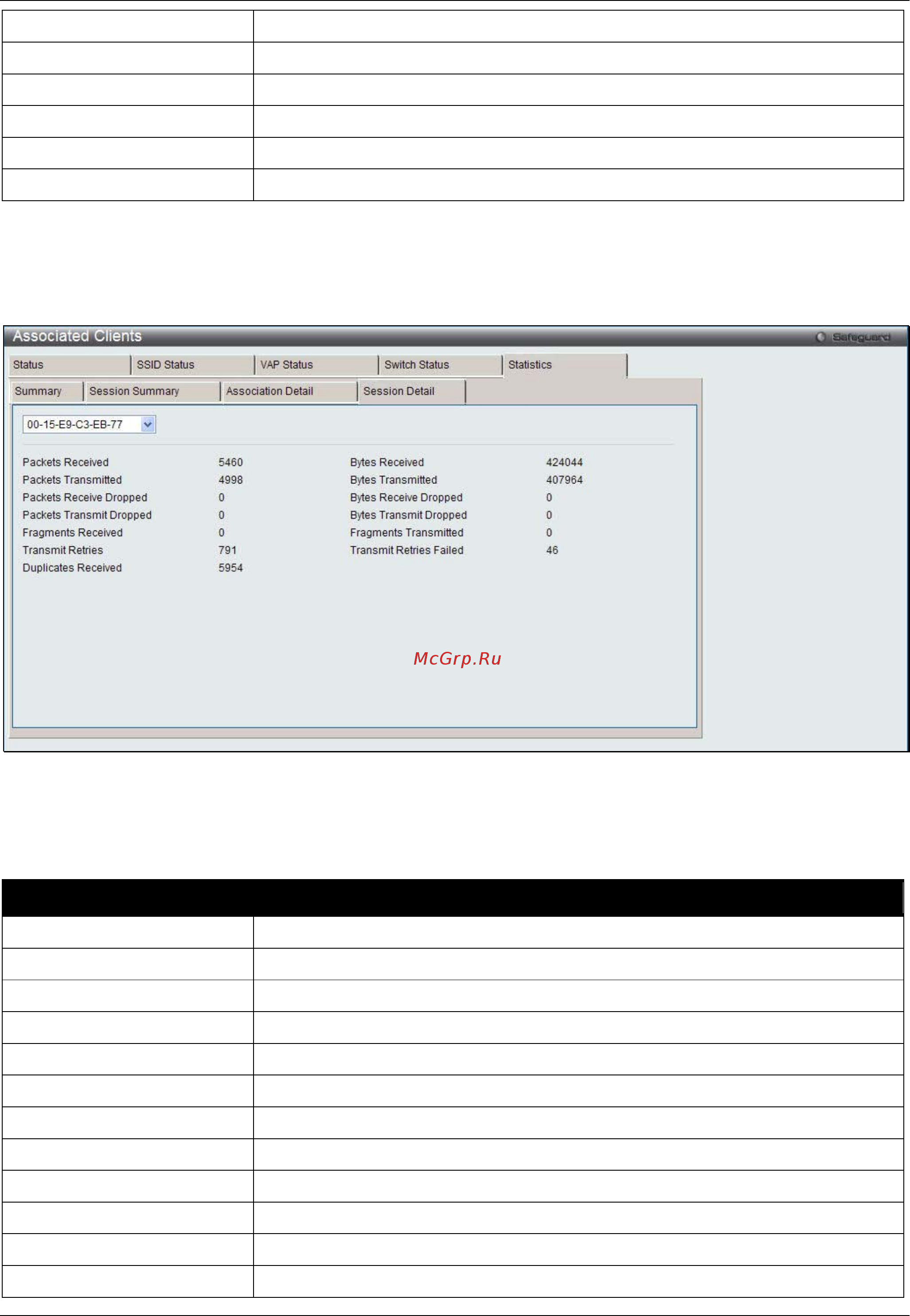

Figure 2-45 Associated Clients Statistics - Session Detail window
Click the drop-down menu to select the MAC address of the client with the information to view.
The fields that can be displayed are described below:
Parameter Description
Packets Received
Total packets received from the client station.
Bytes Received
Total bytes received from the client station.
Packets Transmitted
Total packets transmitted to the client station.
Bytes Transmitted
Total bytes transmitted to the client station.
Packets Receive Dropped
Number of packets received from the client station that were dropped.
Bytes Received Dropped
Number of bytes received from the client station that were dropped.
Packets Transmit Dropped
Number of packets transmitted to the client station that were dropped.
Bytes Transmit Dropped
Number of bytes transmitted to the client station that were dropped.
Fragments Received
Total fragmented packets received from the client station.
Fragments Transmitted
Total fragmented packets transmitted to the client station.
Transmit Retries
Number of times transmits to client station succeeded after one or more retries.
Transmit Retries Failed
Number of times transmits to client station failed after one or more retries.
