DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
378

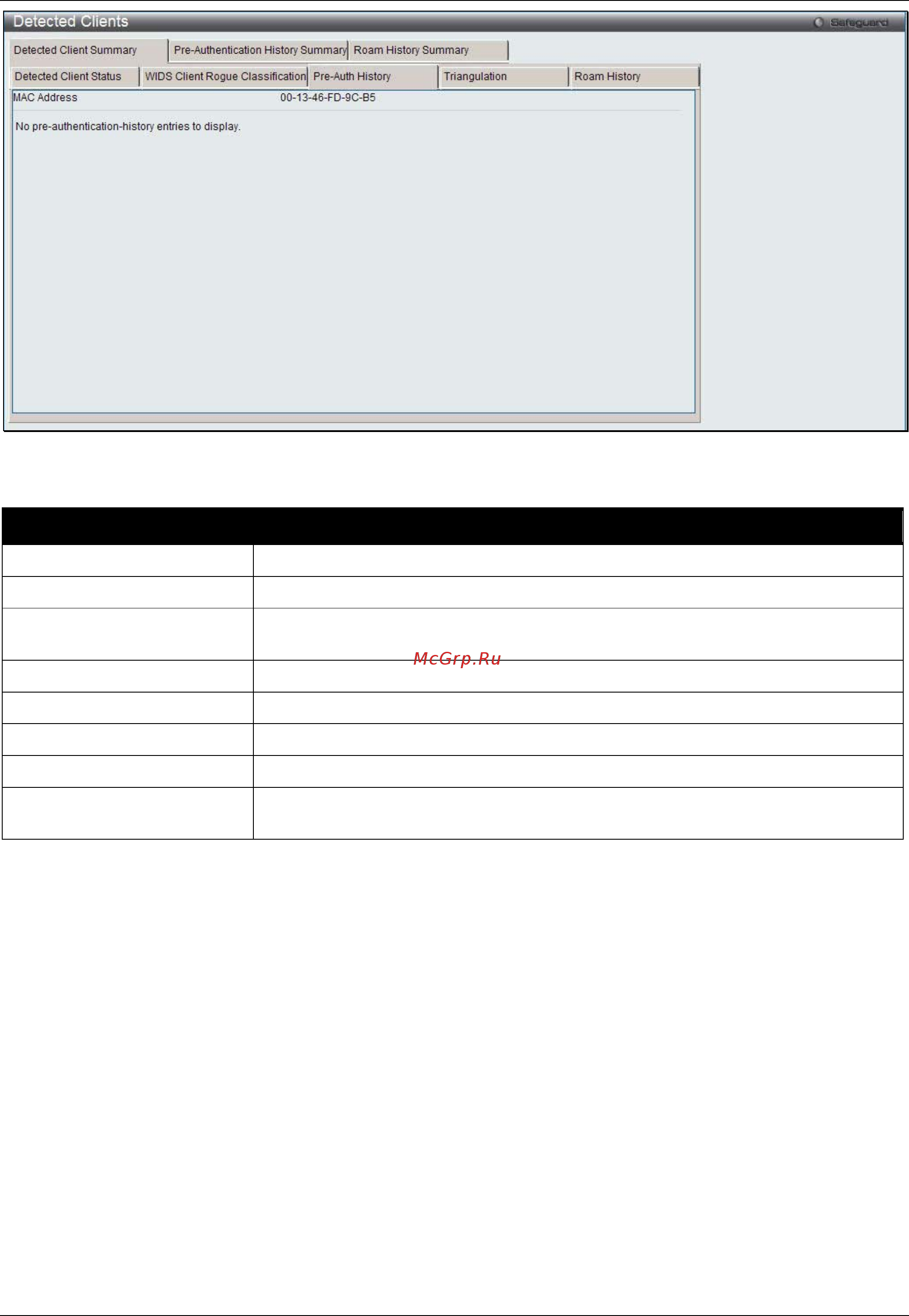

Figure 2-49 Detected Client Summary –Pre-Auth History window
The fields that can be displayed are described below:
Parameter Description
MAC Address
MAC address of the client.
AP MAC Address
MAC Address of the managed AP to which the client has pre-authenticated.
Radio Interface Number
Radio number to which the client is authenticated, which is either Radio 1 or
Radio 2.
VAP MAC Address
VAP MAC address to which the client roamed.
SSID
SSID Name used by the VAP.
Age
Time since the history entry was added.
User Name
Display the user name of client that authenticated via 802.1X.
Pre-Authentication Status
Display whether the client successfully authenticated and shows a status of
Success or Failure.
After clicking the Triangulation tab under the Detected Client Summary tab, the following page will appear:
