DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
383

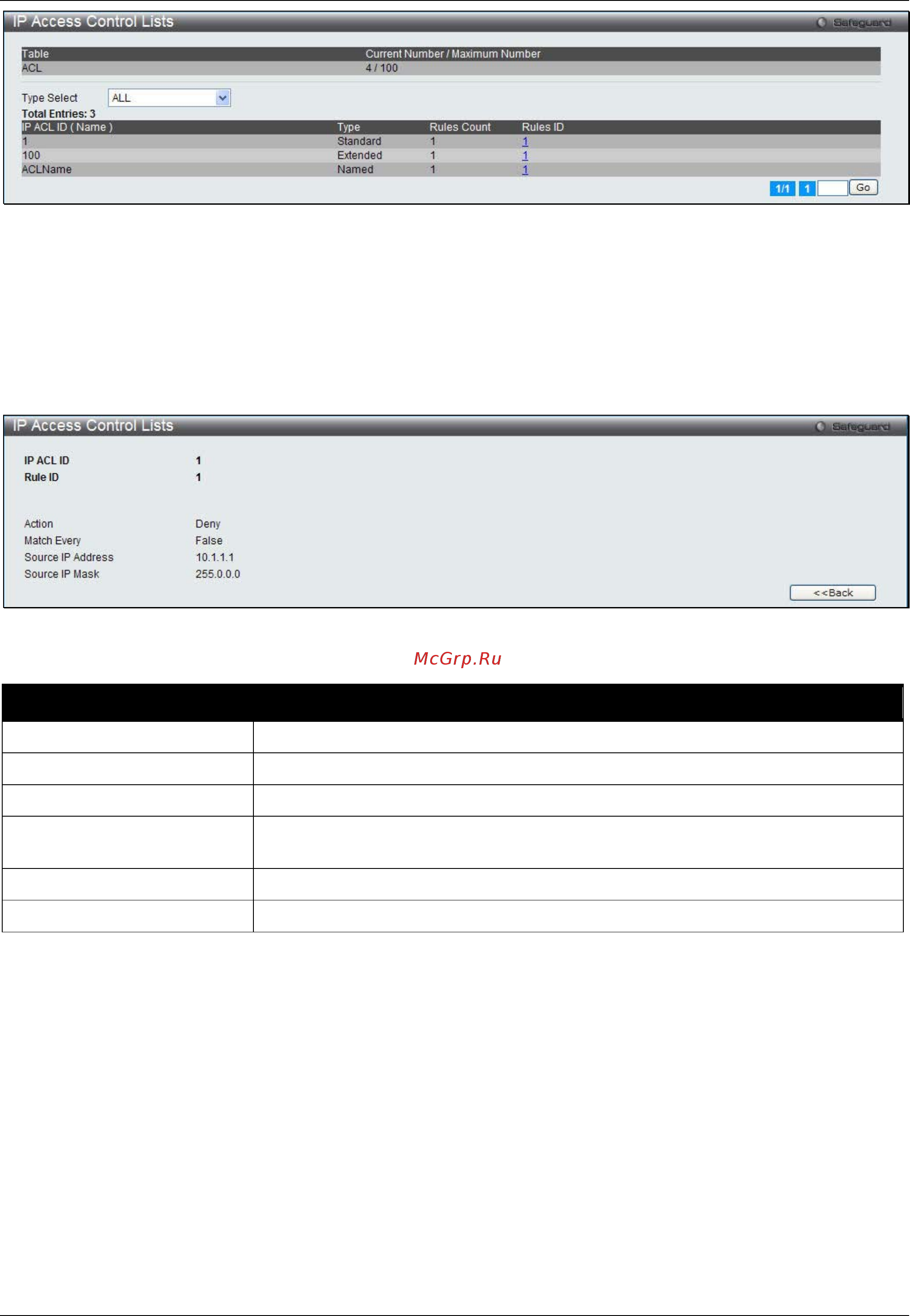

Figure 2-55 IP Access Control Lists window
Use the Type Select drop-down menu to display various types of IP ACL.
Click the Rules ID hyperlink to see the detail information about the rule.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Rules ID hyperlink, one of the following pages will appear:
Figure 2-56 IP Access Control Lists - Rule ID window (Standard IP ACL)
The fields that can be displayed are described below:
Parameter Description
IP ACL ID
The ID of the IP ACL.
Rule ID
The number identifier for each rule that is defined for the IP ACL.
Action
The action associated with each rule. Available values are Permit and Deny.
Match Every
Display whether this access list applies to every packet. Available values are
True and False.
Source IP Address
The source IP address for this rule.
Source IP Mask
The source IP Mask for this rule.
Click the <<Back button to return to the previous window.
