DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
443

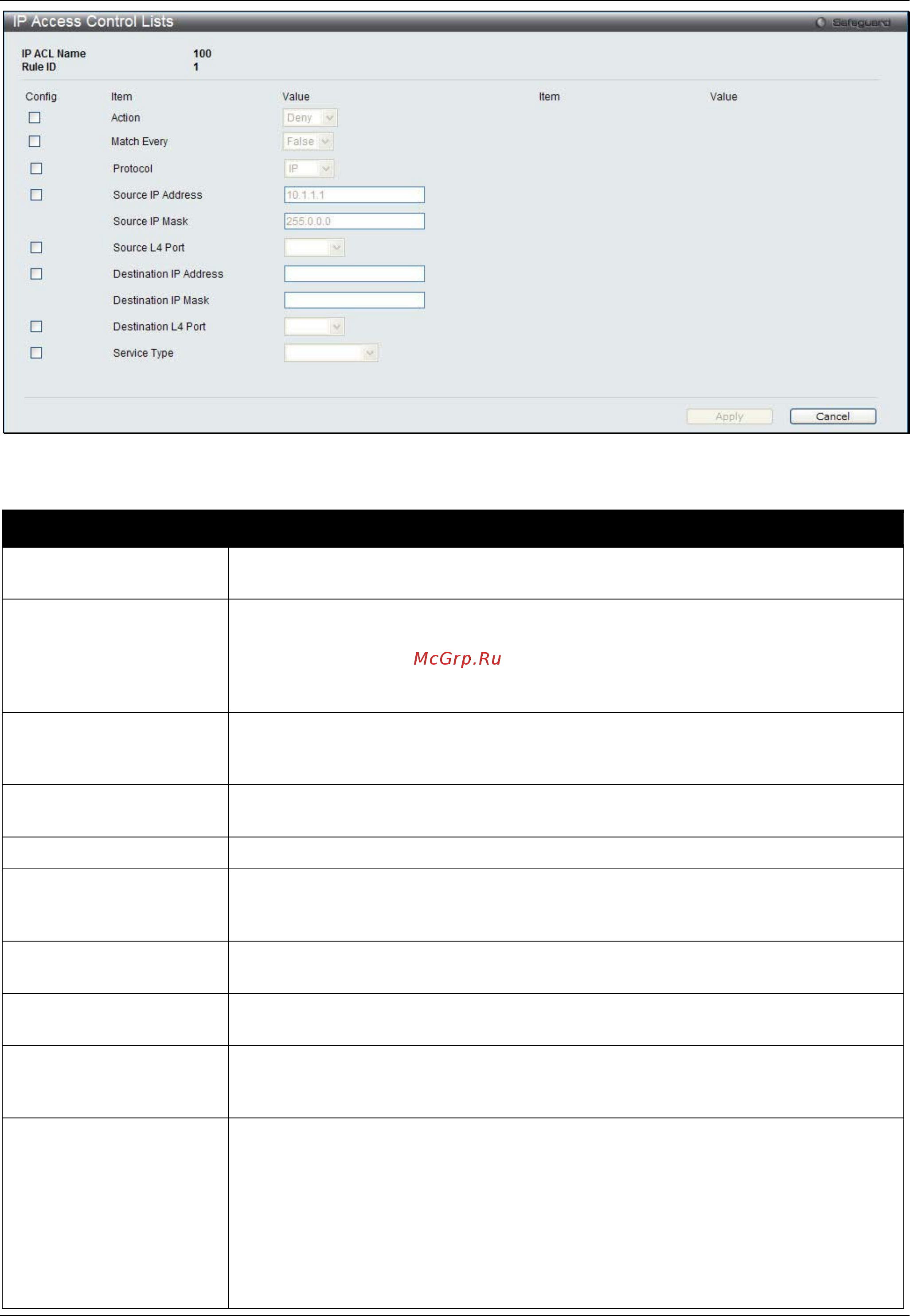

Figure 4-8 IP Access Control Lists – Edit Rule (Extended IP ACL) window
The fields that can be configured are described below:
Parameter Description
Action
Tick the check box and use the drop-down menu to select the ACL forwarding
action.
Match Every Tick the check box and use the drop-down menu to select True or False. True
means that all packets will match the selected IP ACL and Rule, and will be either
permitted or denied. When True is selected, the option of configuring other match
criteria will not be offered since all packets match the rule. To configure specific
match criteria for the rule, select False to configure the other match criteria.
Protocol
Tick the check box and use the drop-down menu to select a packet’s IP protocol to
match condition for the selected IP ACL rule. When selecting Other, the Protocol
Value field appears. Enter a value in the field.
Source IP Address
Tick the check box and enter an IP address and a packet’s source IP address must
match the address entered.
Source IP Mask
Enter the source IP mask, when the Source IP Address check box is selected.
Source L4 Port
Tick the check box and use the drop-down menu to select L4 keyword of source
ports to match a packet’s TCP/UDP source port. When selecting Other, the
Source Port Value field appears. Enter a value in the field.
Destination IP Address
Tick the check box and enter an IP address and a packet’s destination IP address
must match the address entered.
Destination IP Mask
Enter the destination IP mask, when the Destination IP Address check box is
selected.
Destination L4 Port
Tick the check box and use the drop-down menu to select L4 keyword of
destination ports to match a packet’s TCP/UDP destination port. When selecting
Other
,
Destination Port Value
appears. Enter a value in the field.
Service Type
Tick the check box and select one of the following three Match conditions for the
extended IP ACL rule.
IP DSCP – Select one of the DSCP keyword values from the IP DSCP drop-down
menu. When selecting Other, the IP DSCP Value field appears. Enter a value in
the field.
IP Precedence – Enter a value between 0 and 7 in the IP Precedence field.
IP ToS – Enter a value as a hexadecimal number from 00 to FF in the IP ToS Bits
and IP ToS Mask field.
