DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

452

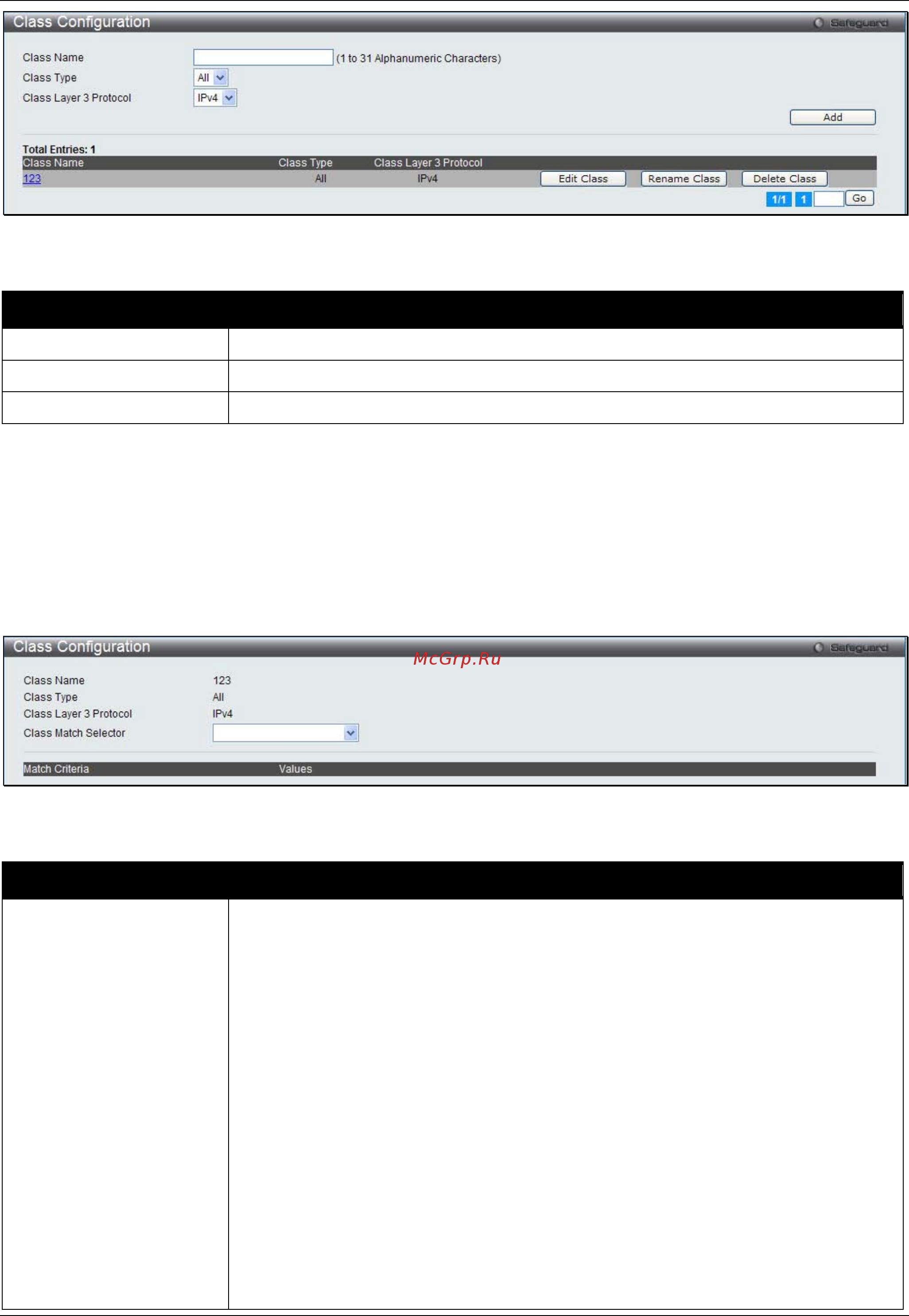

Figure 4-21 Class Configuration window

The fields that can be configured are described below:

Parameter Description

Class Name

Enter a class name.

Class Type

Select the class type.

Class Layer 3 Protocol

Select the class layer 3 protocol as IPv4 or IPv6.

Click the Add button to add a new entry based on the information entered.

Click the Edit Class to configure the entry.

Click the Rename Class button to change the name of the specific class.

Click the Delete Class to remove the entry from the list.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Edit Class button, the following page appears:

Figure 4-22 Class Configuration – Edit Class window

The fields that can be configured are described below:

Parameter Description

Class Match Selector Use the drop-down menu to select match criteria to a specified class. Click the Add

Match Criteria button to see the criteria configuration for that class.

When Class Layer 3 Protocol is IPv4, the following selections display in the drop-

down menu.

Class of Service – Select this and select a value (between 0 and 7) of Class of

Service in the next window.

Destination IP Address – Select this to enter an IP address and its mask in the next

window. A packet’s destination IP address must match the address entered.

Destination Layer4 Port – Select this to choose protocol keyword in the next

window. A packet’s TCP/UDP destination port must match the selected port. Select

Other to enter a user-defined Port ID in the Protocol Value field by which packets

are matched to the rule.

Destination MAC Address – Select this to enter a MAC address and its mask in the

next window. A packet’s destination MAC address must match the address

entered.

Ethertype – Select this to choose the Ethertype Key in the next window. A frames’

Ethertype must match the selected Ethertype. Select User Value to enter a user-

defined

Ethertype Value

in the field.
