port of the primary VLAN will behave as the tagged member of the secondary VLAN. A secondary VLAN cannot be

specified with advertisement. Only the primary VLAN can be configured as a layer 3 interface. The private VLAN

member port cannot be configured with the traffic segmentation function.

This window allows the user to configure the private VLAN parameters.

To view the following window, click L2 Features > VLAN > Private VLAN Settings, as show below:

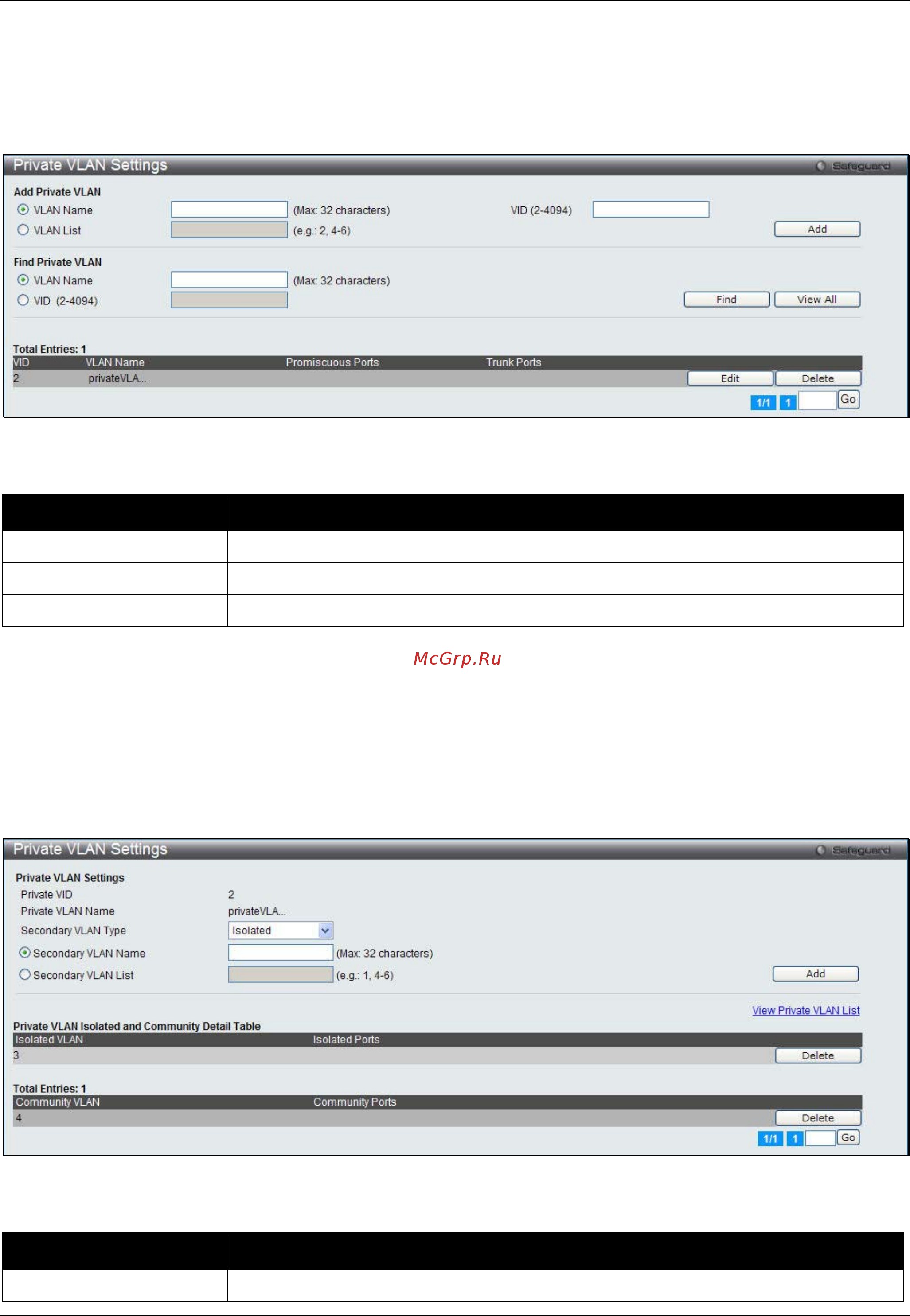

Figure 7-14 Private VLAN Settings window

The fields that can be configured are described below:

Parameter Description

VLAN Name

Enter a VLAN name.

VID (2-4094)

Enter a VID value.

VLAN List

Enter a list of VLAN IDs.

Click the Add button to add a new entry based on the information entered.

Click the Find button to locate a specific entry based on the information entered.

Click the View All button to display all the existing entries.

Click the Edit button to configure the secondary VLAN.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

Click the Edit button to see the following window.

Figure 7-15 Private VLAN Settings - Edit window

The fields that can be configured are described below:

Parameter Description

Secondary VLAN Type

Use the drop-down menu to select secondary VLAN type between Isolated or
