Selecting the Sort, Sort-and-Staple,
Group, or Hole Punch Mode
Selecting the Finishing Mode
1136P322CA
Finishing
Hole
Punch
Sort
Sort
Staple
Group
1136P322CA

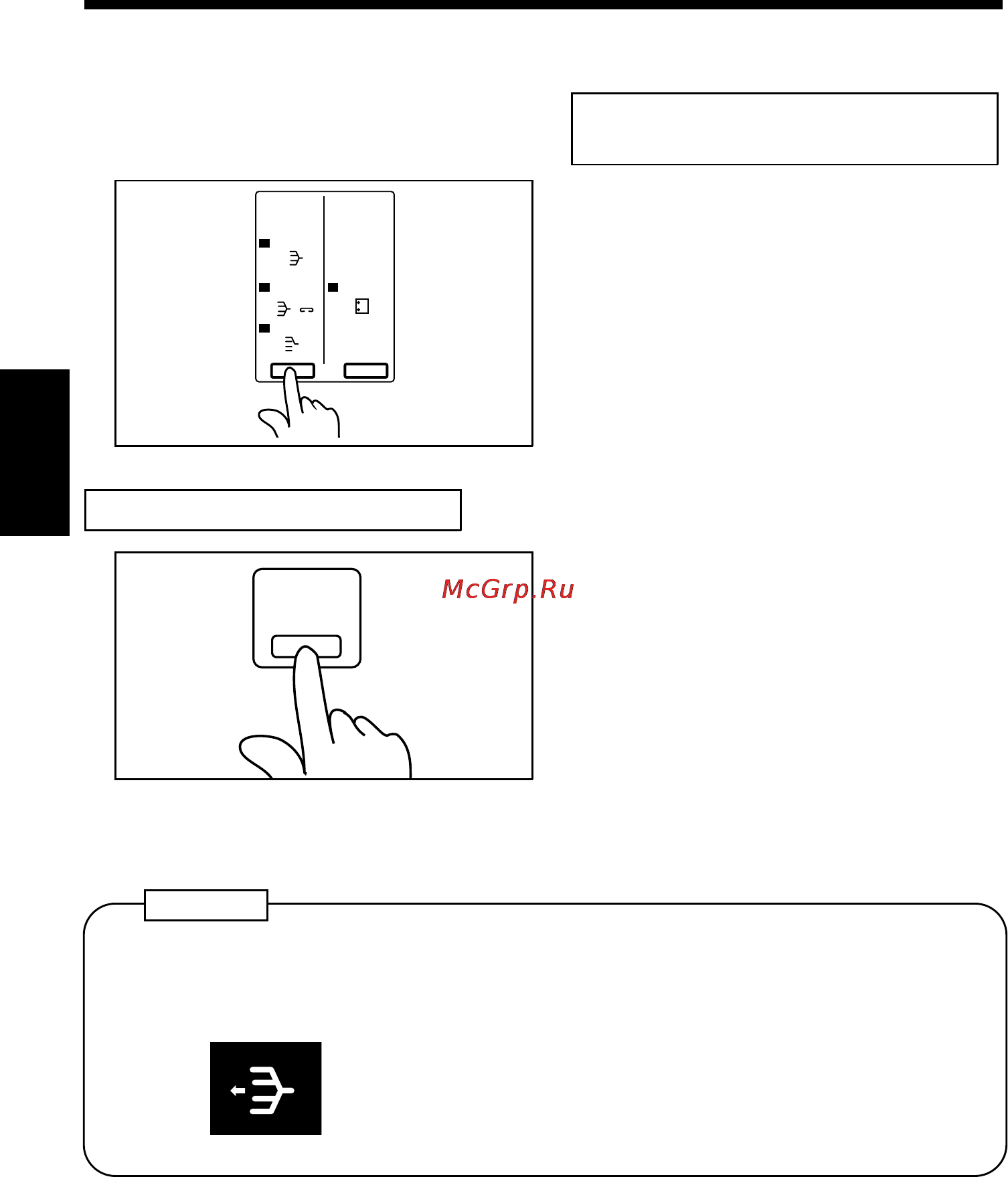

Press the Finishing Mode Select Key
or Hole Punch Mode Key to select the
desired mode.
* Each time the Key is pressed, the
newly selected indicator lights.
The capacity of each Sorter Bin is 50 copies for the S-205 and ST-206 and 25
for the S-104 and ST-101.
NOTE
If this capacity is exceeded, the Remove Copies
Indicator lights up on the control panel and the
Start Key turns orange, inhibiting the initiation of a
new copy cycle.
1139O3400A
4. System Job Setting
Manual
Staple
1139O2732A
1139O2732A
To staple copies after they have been
made:
Make sure that each copy set or
stack has been fed into the Sorter
Bin. Then, press the Manual
Staple Key. Then the copy set or
stack in the Sorter Bin will be
stapled.
Using the Manual Staple Mode
Chapter 3
Making Copies
90
