Konica Minolta EP2050 [180/225] When a warning message appears

1136P30OAA

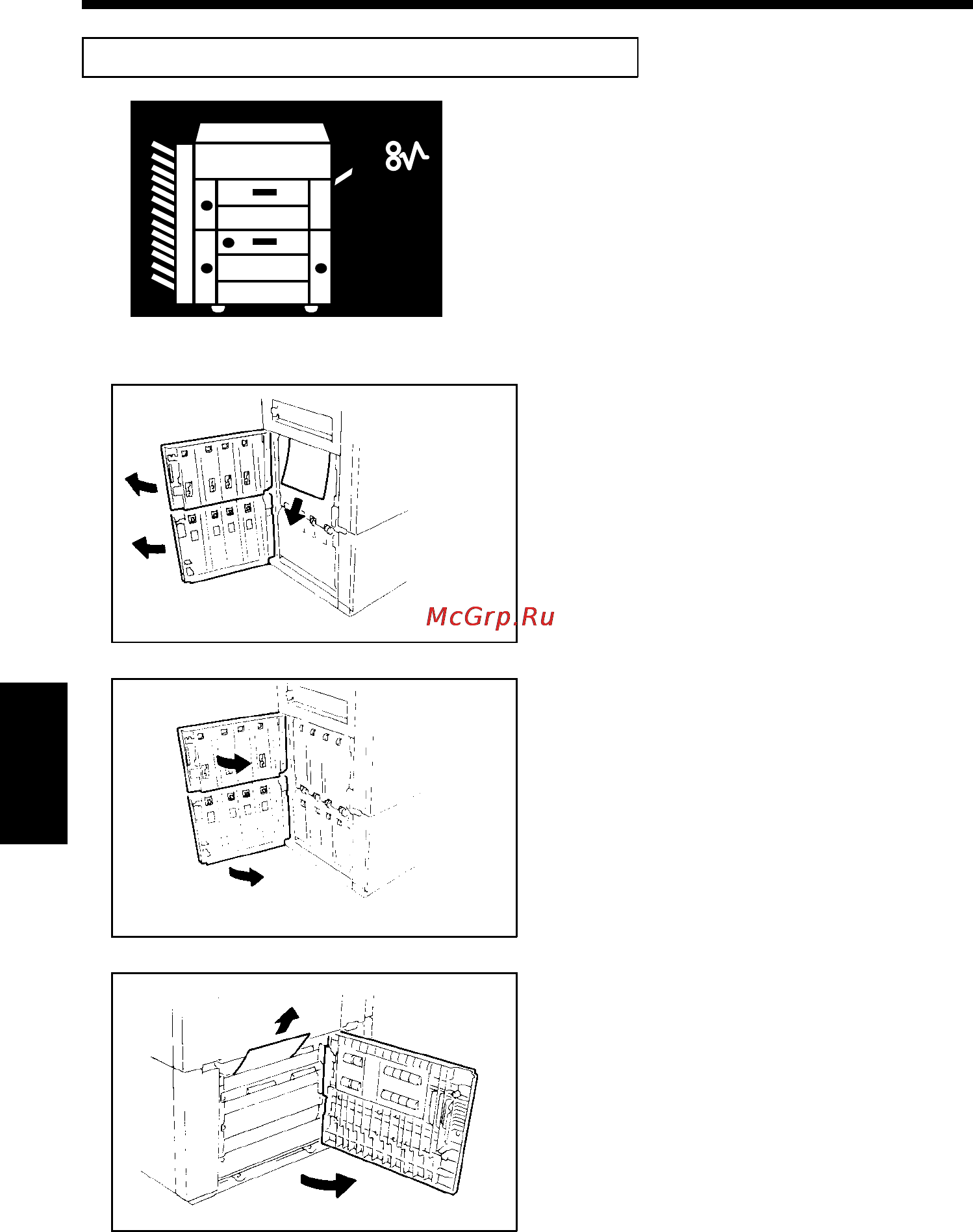

Misfeed Clearing Procedure: Duplex Unit AD-5

1136P300AA

There is a misfed sheet of paper either in

the Duplex Unit or the Transport Sections

or both.

1136O046AA

Open the Middle Left Door and

Lower Left Door.

Pull out the sheet of paper from

the Transport Section.

2. Detailed Instructions for Messages/Indicator Lights

1136O048AA

Open the Lower Right Door and

pull out the sheet of paper from

the Transport Section.

1136O047AA

Close the Middle Left Door and

Lower Left Door.

Chapter 5

When a Warning Message Appears

176
