1136P304CA
X1.000
AUTO
A
Auto Select

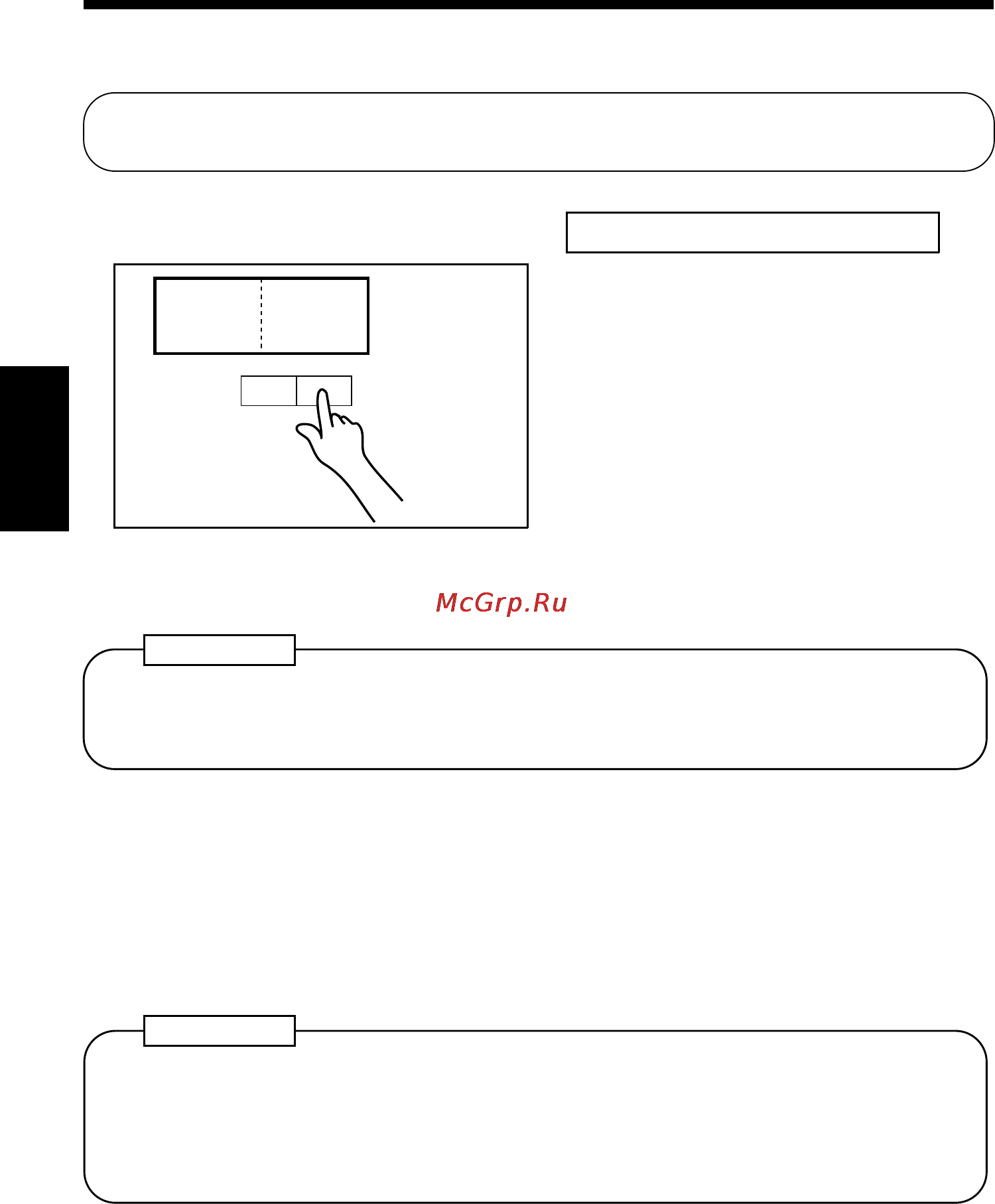

Press the Auto Paper Mode Key.
Then "Auto" appears on the Message
Display above "Paper," indicating that
the copier is now in the Auto Paper
Mode.
* Selecting the Fixed Zoom Ratio.
➭
p. 52
* Setting a Zoom Ratio.
➭
p. 53
Selecting the Auto Paper Mode
Auto Paper Mode
In the Auto Paper Mode, the copier automatically selects the correct copy
paper size according to the original size and zoom ratio selected for use.
This mode is efficient when you want to automatically make copies on paper
of the same size as your originals.
Useful Tip
1136P304CA
2. Basic Copying Procedure
This feature is a great advantage when you need to make a large number of
copies on the same size paper. For example, it is possible to make up to 1,000
copies without interruption by using the AF-3 or AFR-7 if the 3rd and 4th
Drawers are loaded with paper of the same size and in the same direction.
Useful Tip
Automatic Drawer Switching
If the Drawer currently selected for use runs out of paper and there is another
Drawer loaded with paper of the same size and in the same direction, the copier
automatically selects that second Drawer to continue copying.
Chapter 3
Making Copies
62
