1136P356CA
Toner
1136P356CA
Press the Auxiliary Toner
Replenishing Key.
This causes the copier to initiate a
toner replenishing sequence.
•
The copier cannot be set into the Auxiliary Toner Replenishing Mode while it
is warming up.
•
Do not turn the Power Switch OFF, or open a copier Door while in the
Auxiliary Toner Replenishing Mode.
NOTES
1136P354CA
Input
Job
Memory
Zoom
Memory
Auto Size
Meter
Count
Toner
Book 1
OHP
Inter-
leaving
Page
Insertion
Cover
(Front)
Book 2
Margin 1
Margin 2
Erase 1
Erase 2
Erase 3
Erase 4
Display
OK
Drum
Dehumidify
Cover
(Front
&
Back)
1136P354CA

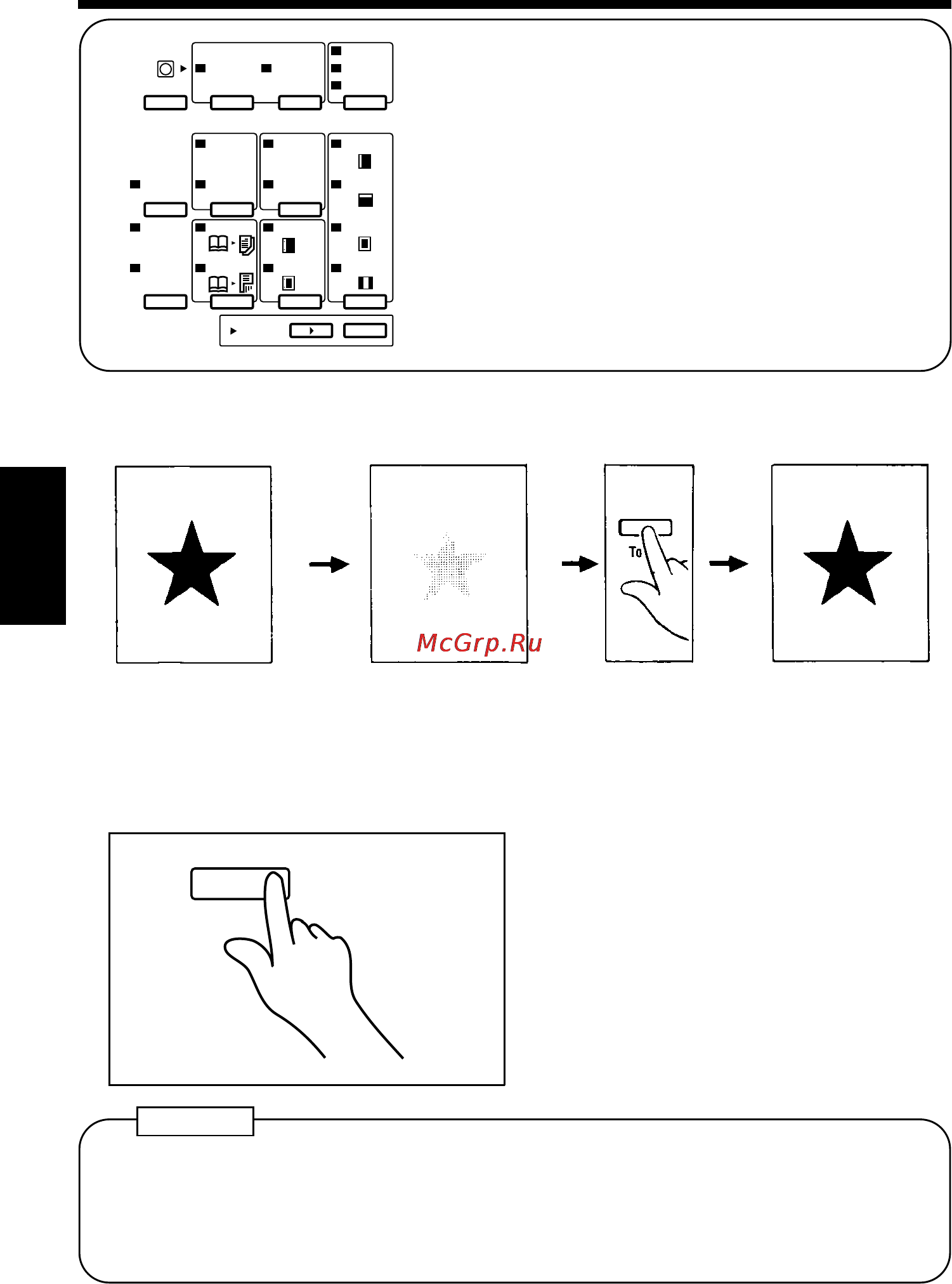

The copier tends to exhaust the supply of
toner rapidly when making a number of
copies from an original with dark solid areas.
As a result, the image density of the copy
will become lighter. In such a case, you can
set the copier into the Auxiliary Toner
Replenishing Mode.
Original Copy
Copy Made After
Auxiliary Toner
Replenishing
Even if you continue making copies after the image density has become lighter,
the copier will gradually recover the normal image density. The Auxiliary Toner
Replenishing Mode can, however, be used to obtain the normal image density
more quickly.
1136O177CA
2. Auxiliary Toner Replenishing Mode
2. (Increasing the Image Density)
Chapter 4
Special Functions
130
