Konica Minolta EP2050 [29/225] First things to know about ep2050
![Konica Minolta EP2050 [29/225] First things to know about ep2050](/views2/1122110/page29/bg1d.png)

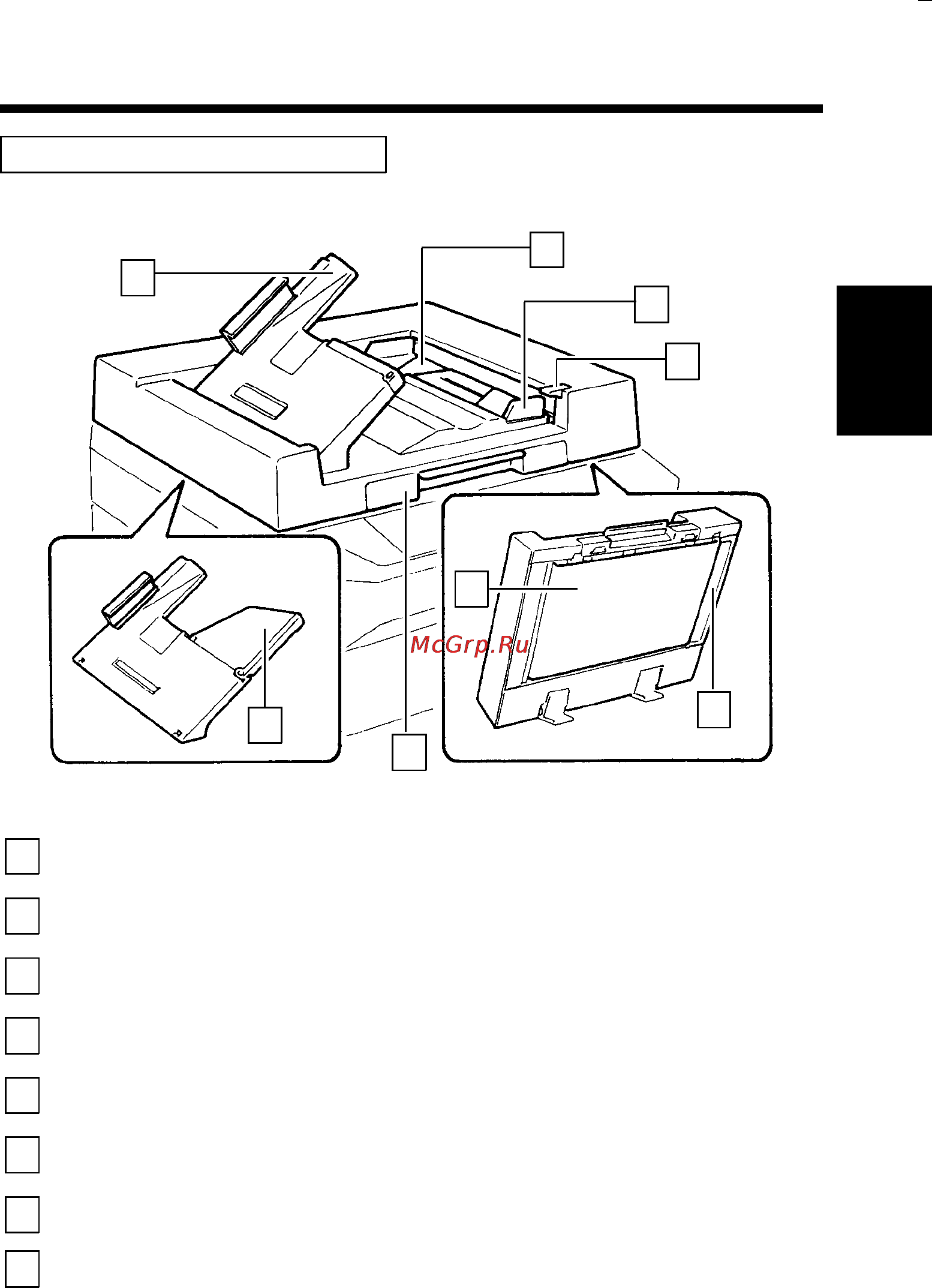

Automatic Document Feeder AF-3
1
1139O1070A
2
3
4
5
6
7
8
1
Document Exit
Tray
: Receives originals that are automatically ejected
from the AF-3.
2
Document Feed
Tray
: Load the originals face up on this tray.
➭
p. 43
3
Document Guide
Plates
: Slide the plates as necessary to the size of the
originals.
➭
p. 43
4
Document Release
Key
: Press to clear an original misfeed. Holding down
the lever, pull out the original.
➭
p. 179
5
Document Feed
Unit Guide Plate
: Open to clear an original misfeed.
➭
p. 179
6
Document
Transport Belt
: Moves the original from the Document Feed Tray
to the Document Exit Tray.
➭
p. 211
7
Lock Release Lever
: Press upward to raise the AF-3.
8
Document Exit
Tray Extender
: Pull out to make copies on larger paper.
➭
p. 43
2. Copier Parts and Accessories
Chapter 2
First Things to Know about EP2050
17
