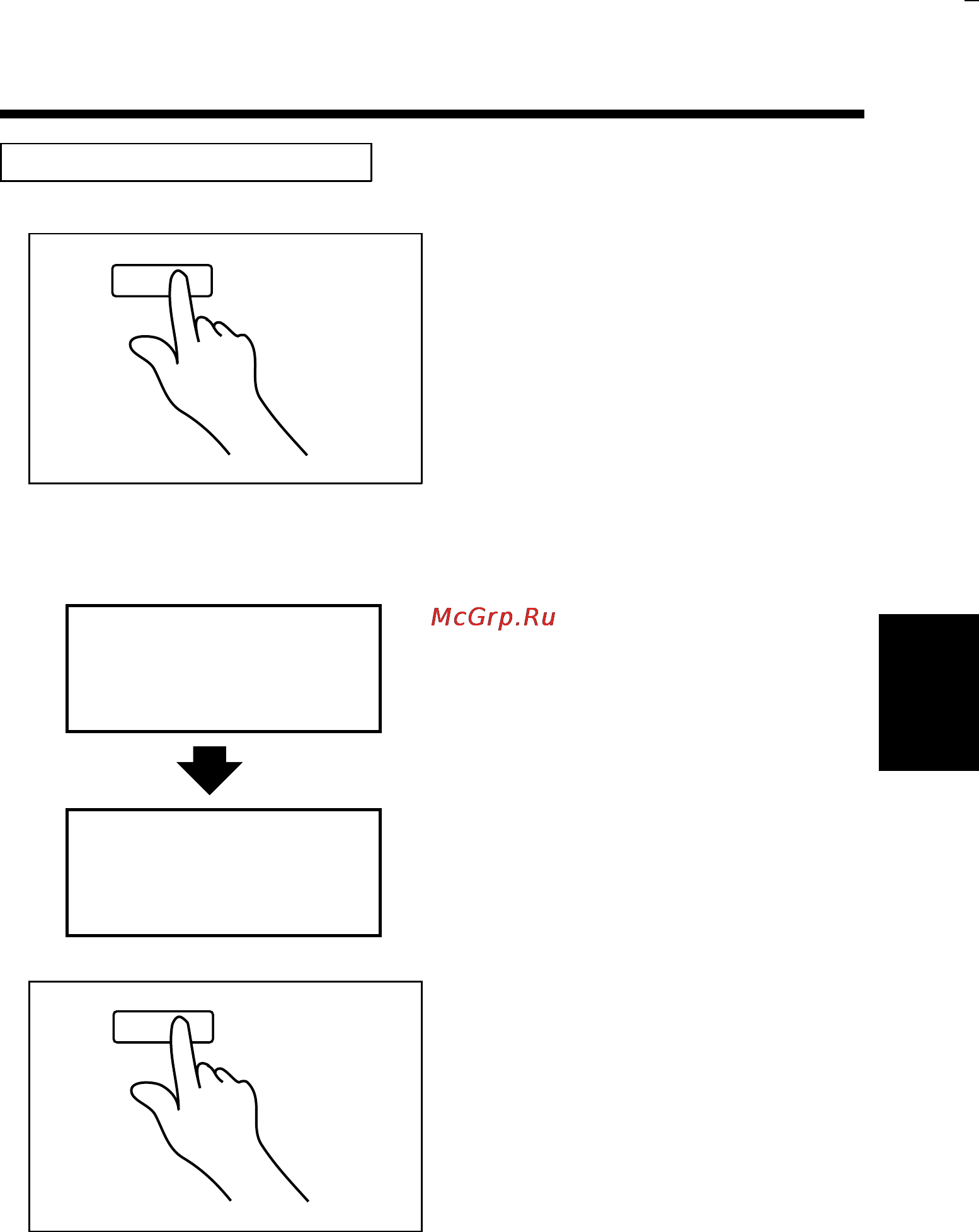

Using the Meter Count Function
1136P353CA
Meter
Count
1136P353CA
Press the Meter Count Key once.
The Message Display shows the
counts of the Total and Size
Counters.
1
2
Press the Meter Count Key a
second time.
Then, the counts of the 2-Sided
Total and 2-Sided Size Counters
appear.
1136P353CA
Meter
Count
1136P353CA
With the counts of the 2-Sided
Total and 2-Sided Size Counters
displayed, press the Meter Count
Key.
This restores the copier to the
state before entering the Meter
Count function.
3
1. Meter Count Function
Meter Count:
Total 370553
Size 17320
Meter Count:
2-Total 5810
2-Size 823
1136P402CA
Ex: Total Counter
count:
370,553 (copies)
Size Counter count:
17,320 (copies)
Ex: 2-Sided Total Counter
count:
5,810 (copies)
2-Sided Size Counter count:
823 (copies)
Chapter 4
Special Functions
129
