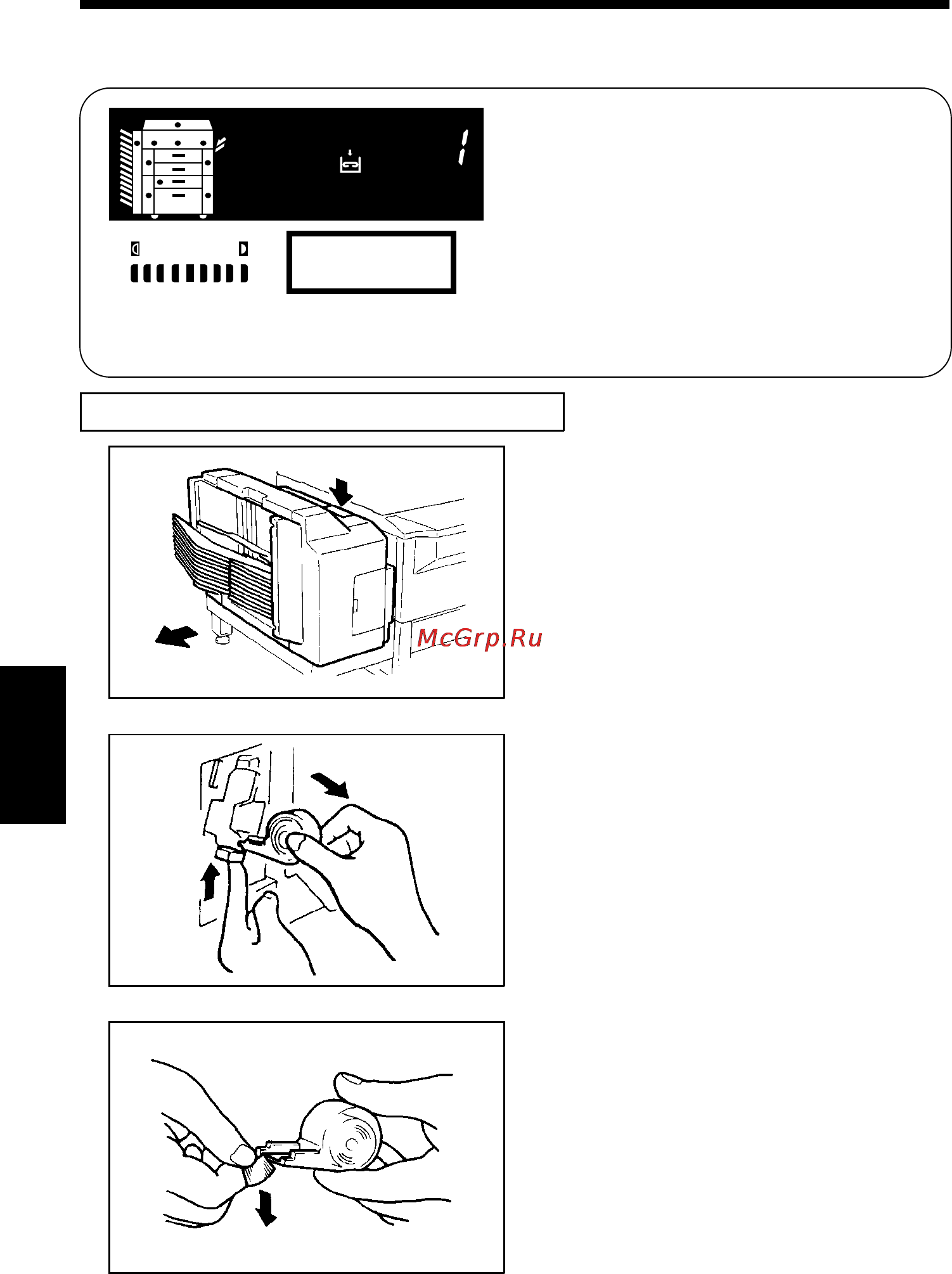

Add Staples Indicator
123
AUTO
Replace the
Staple Cartridge
1136P517EA
1136P517EA
When the staples are running out, the
message shown on the left appears and
the Add Staples Indicator lights up.
Replace the Staple Cartridge with a
new one by following the procedure
given below.
Replacing the Staple Cartridge for ST-101
1139O0490A
Holding the Lock Release Lever
of the Staple Sorter, slide the
Staple Sorter away from the
copier.
1
1136O003AA
Open the Staple Cover.
While lifting the Staple Cartridge
Release Lever, pull the Staple
Cartridge out of its port.
1139O0970A
Pull the staple sheet about 3 cm
out of the new Staple Cartridge
and break off that portion.
2
4
2. Detailed Instructions for Messages/Indicator Lights
3
Chapter 5
When a Warning Message Appears
152
