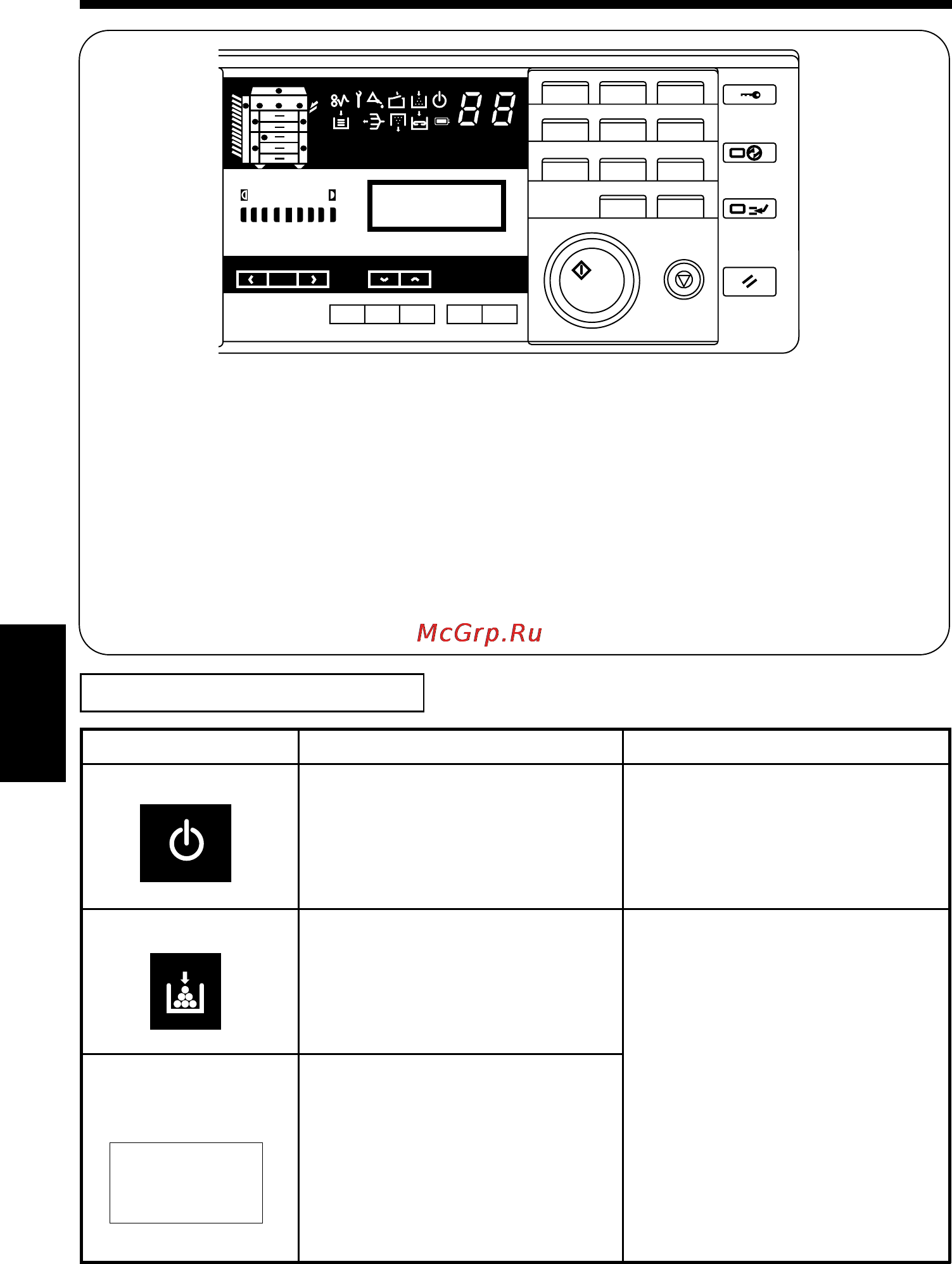

1. Quick Reference for Warning Messages and
Indicator Lights
When the copier encounters any of the following conditions, a corresponding
warning indicator lights up or a warning message appears on the Message
Display. Some of the warning conditions entail inhibition of the initiation of a
copy cycle:
•
A control panel key or keys have been incorrectly operated.
•
Not all necessary conditions are met to start a copy cycle.
•
The copier requires the operator’s intervention during a copy cycle.
The following table explains the most important warning conditions. You will
find more detailed procedures on the page referenced in the "Action" column.
Warning Indicators/Messages
Indicator/Message Copier State Action
Wait Indicator The copier is warming up.
Copy cycle cannot be initiated
while the Wait Indicator
remains lit.
Wait until the Wait Indicator
goes out.
Add Toner Indicator Toner is running out.
(Warning, but a copy cycle can
still be initiated.)
Replace the Toner Bottle by
following the procedure given
in the "Replacing the Toner
Bottle" Section.
➭
p. 146
Add Toner:
(MT Toner 201B)
Toner has run out.
(Warning and no new copy
cycle can now be initiated.)
*The Toner Bottle must be
replaced with a new one
before a new copy cycle can
be initiated.
Add toner :
(MT Toner 201B)
1136P431CA
1136P431CA
1136P51OAA
Chapter 5
When a Warning Message Appears
144
