Konica Minolta EP2050 [170/225] When a warning message appears

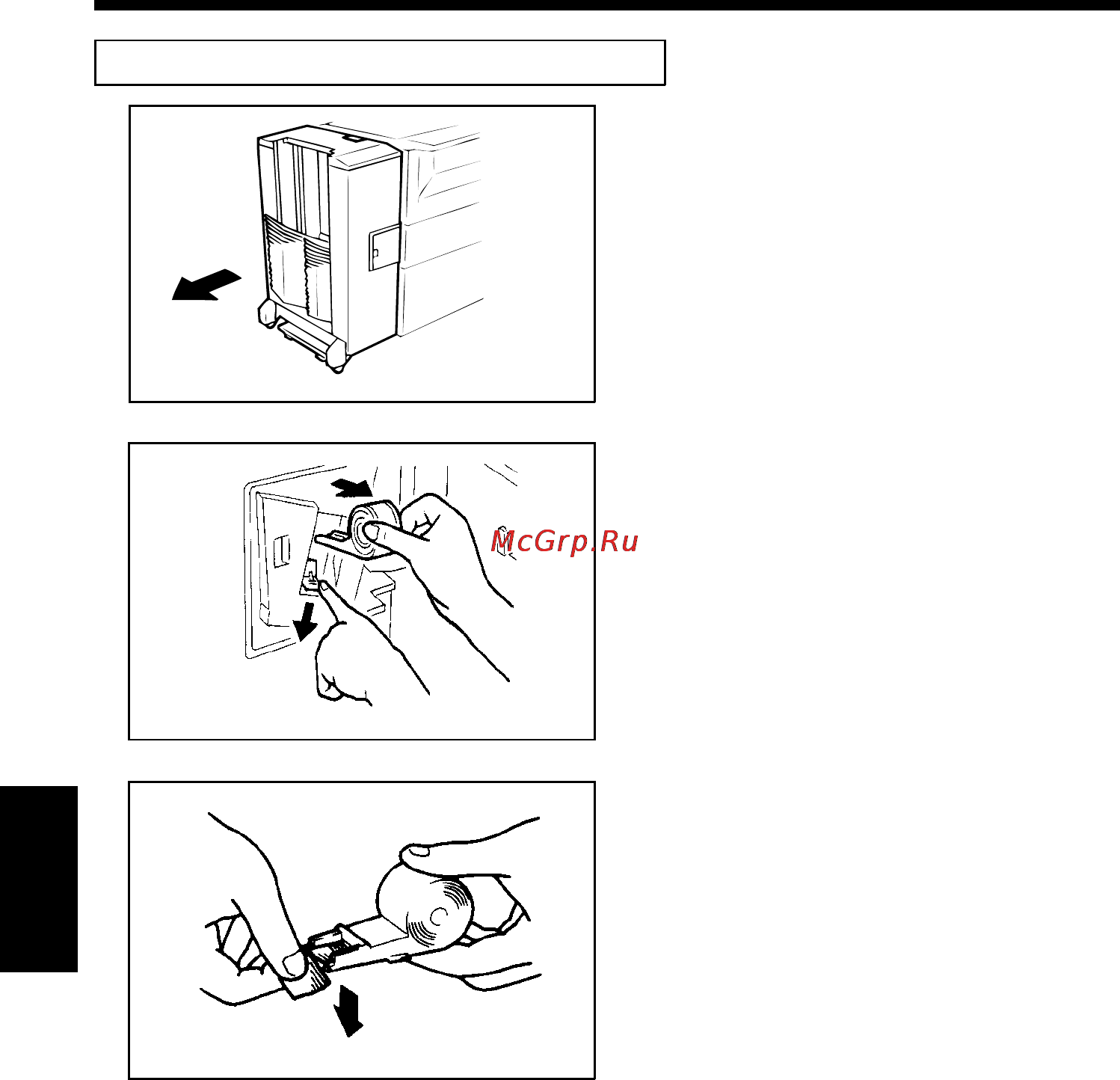

Replacing the Staple Cartridge for ST-206

1136O166AA

Holding the Lock Release Lever

of the Staple Sorter, slide the

Staple Sorter away from the

copier.

1136O011AA

Open the Staple Cover.

While pressing down the Staple

Cartridge Release Lever, pull the

Staple Cartridge out of its port.

1136O012AA

Pull the staple sheet about 3 cm

out of the new Staple Cartridge

and break off that portion.

2. Detailed Instructions for Messages/Indicator Lights

Chapter 5

When a Warning Message Appears

158
