![Konica Minolta EP2050 [95/225] Making copies](/img/pdf.png)
Konica Minolta EP2050 [95/225] Making copies
![Konica Minolta EP2050 [95/225] Making copies](/views2/1122110/page95/bg5f.png)
1
Auto Count
Even
Odd
# of Origs.
1136P317CA
1136P317CA
2
1139O0110A
Load the originals onto the
AFR-7.
•
Placing the Original
➭
p. 43
Press the Start Key to start the
original count sequence.
•
The AFR-7 starts feeding the
originals loaded onto it to count
the number of originals. (At this
time, no copy cycle is run.)
3
4
4. System Job Setting
1136P115AA
Unload the originals ejected onto
the Document Exit Tray and
reload them onto the Document
Feed Tray. Then, press the Start
Key.
•
The copy cycle is run in the
Orig. Copy type selected.
▲
5
Be sure to perform the original
count sequence after you have
selected the Orig. Copy type.
NOTE
▲
21
22
Orig. Copy
1
1
2in1
1
2
2in1
1136P320CA

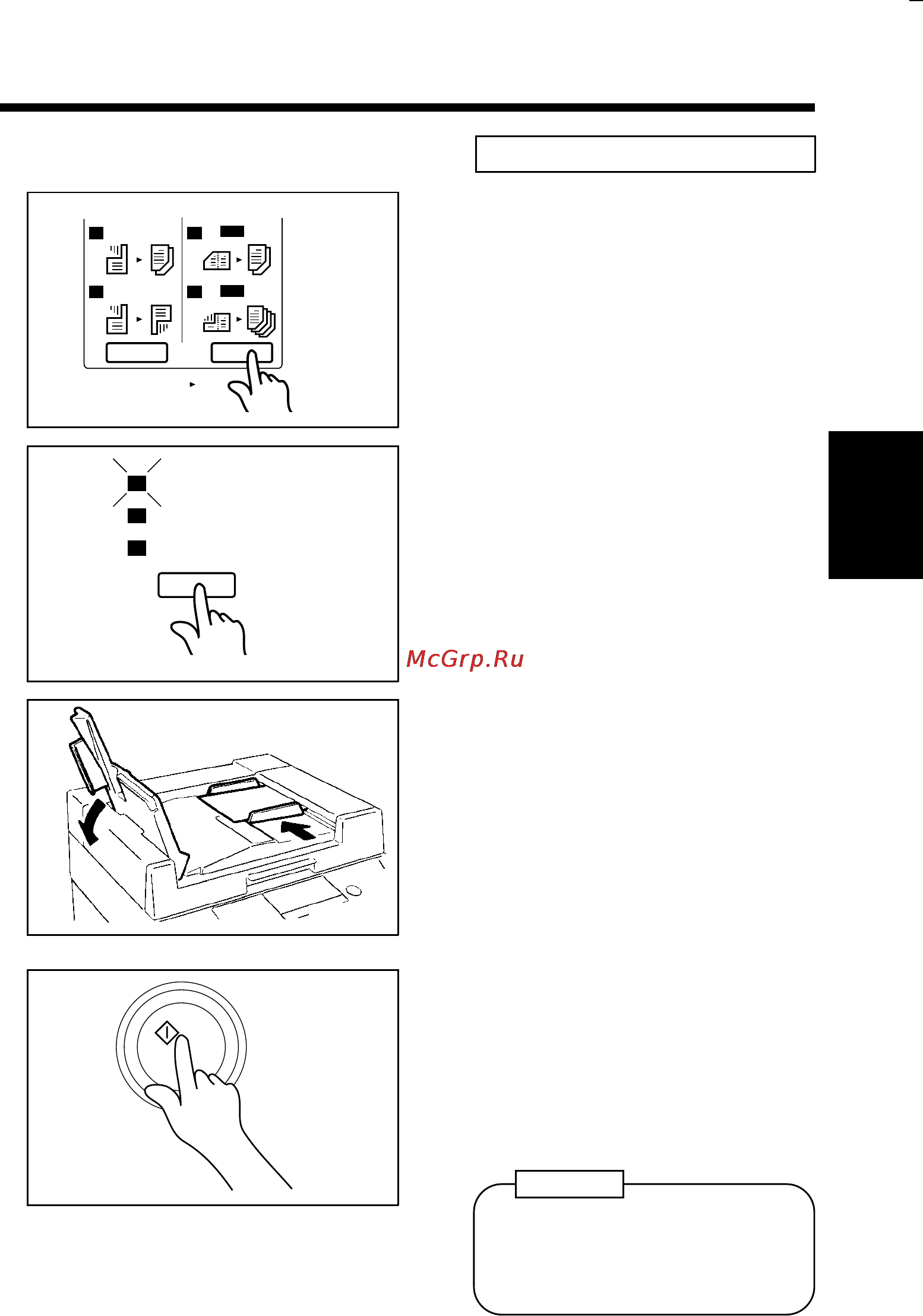

Using the Original Count Mode
1136P320CA
Select the Orig. Copy type.
➭
p. 80
Press the Original Count Mode
Key to select the appropriate
function according to the number
of originals you have.
If you do not know how many
originals you have, select "Auto
Count."
If you know that the number of
your originals is even, select
"Even."
If you know that the number of
your originals is odd, select
"Odd."
▲
Chapter 3
Making Copies
83
