12
Clear Key:
Press to clear the number of copies and other settings.
13
Panel Reset Key:
Press to set the copier into the initial mode, clearing all settings made previously on the control
panel.
➭
p. 35
*
It does not, however, clear the contents of the copying job program memory and the settings
made immediately before the Interrupt Mode.
Holding down the Key for 3 seconds will initiate the User’s Choice.
➭
p. 140
14
Stop Key:
Press to stop a multi-copy cycle.
➭
p. 67
15
Start Key:
Press to start a copy cycle.
➭
p. 67
It also tells the status of the copier as follows:
16
Paper Select Key:
Press to select the desired paper size.
➭
p. 60
17
Auto Paper Mode Key:
Press to select the Auto Paper Mode.
➭
p. 62
18
Enlargement Key:
Press to select a desired fixed enlargement ratio.
➭
p. 52
19
Full Size Key:
Press to select full size (100%).
➭
p. 52
20
Reduction Key:
Press to select a desired fixed reduction ratio.
➭
p. 52
21
Zoom Up/Down Keys:
Press as necessary to make the zoom ratio larger or smaller in 0.1% increments.
➭
p. 53
22
Message Display:
Serves as the basic source of information showing such information as warning messages and
copying mode currently selected for use.
Lit green: The copier is ready to make copies.
Lit orange: The copier is warming up, or the Add Paper, Misfeed, or
Call-Technical-Representative Indicator is lit.
123
456
789
0C
123
x0.5~x2.0
Reduce Full size Enlarge
A
Auto Select
PaperZoom
1136P250DA
16
15
8
17
7
19 1822
1136P250DA
21
20
9
10
11
12
13
14

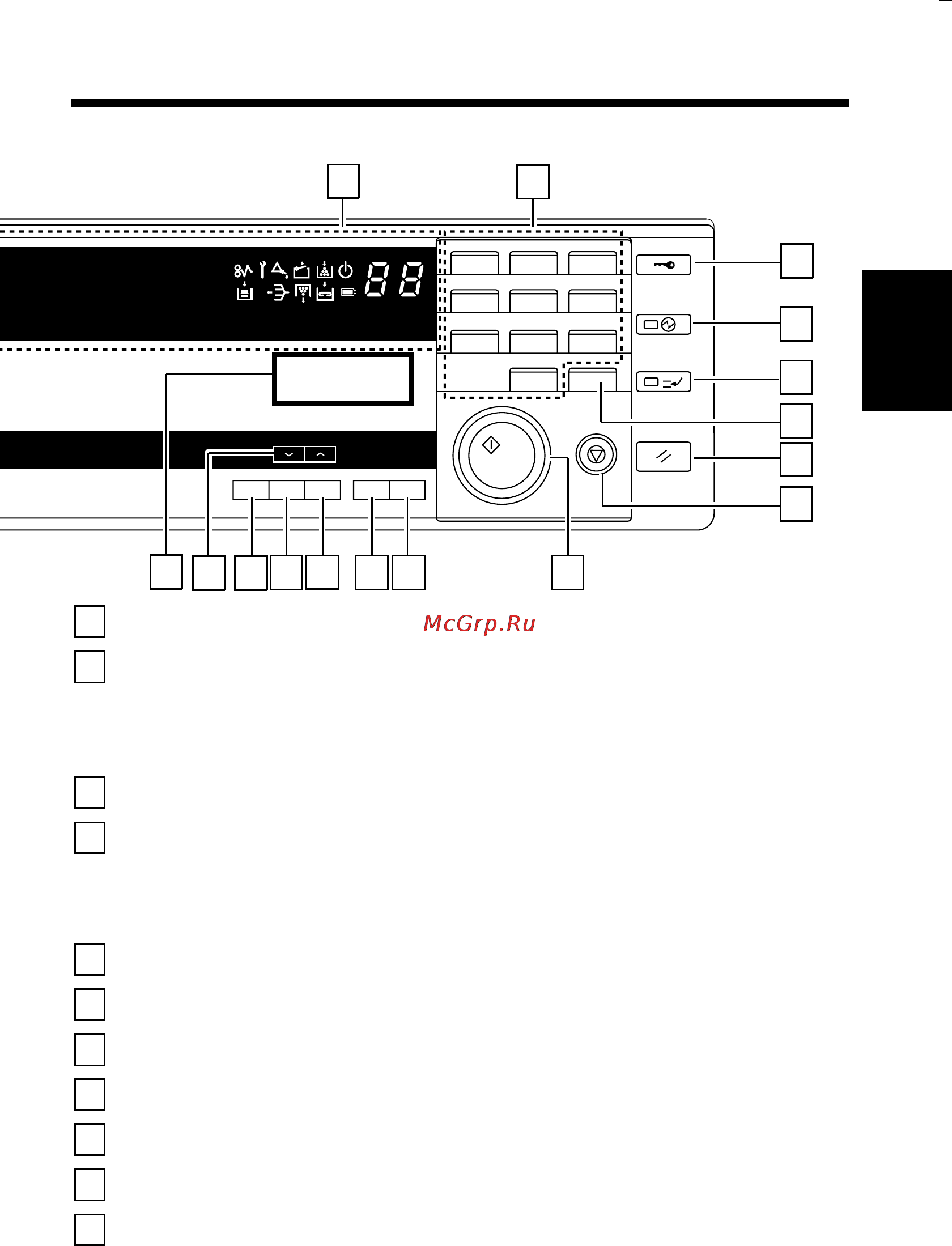

3. Control Panel Keys and Indicators
Chapter 2
First Things to Know about EP2050
23
