Konica Minolta EP2050 [61/225] Making copies
![Konica Minolta EP2050 [61/225] Making copies](/views2/1122110/page61/bg3d.png)
36P277CA
Darker
A
Lighter
Exposure
1136P277CA

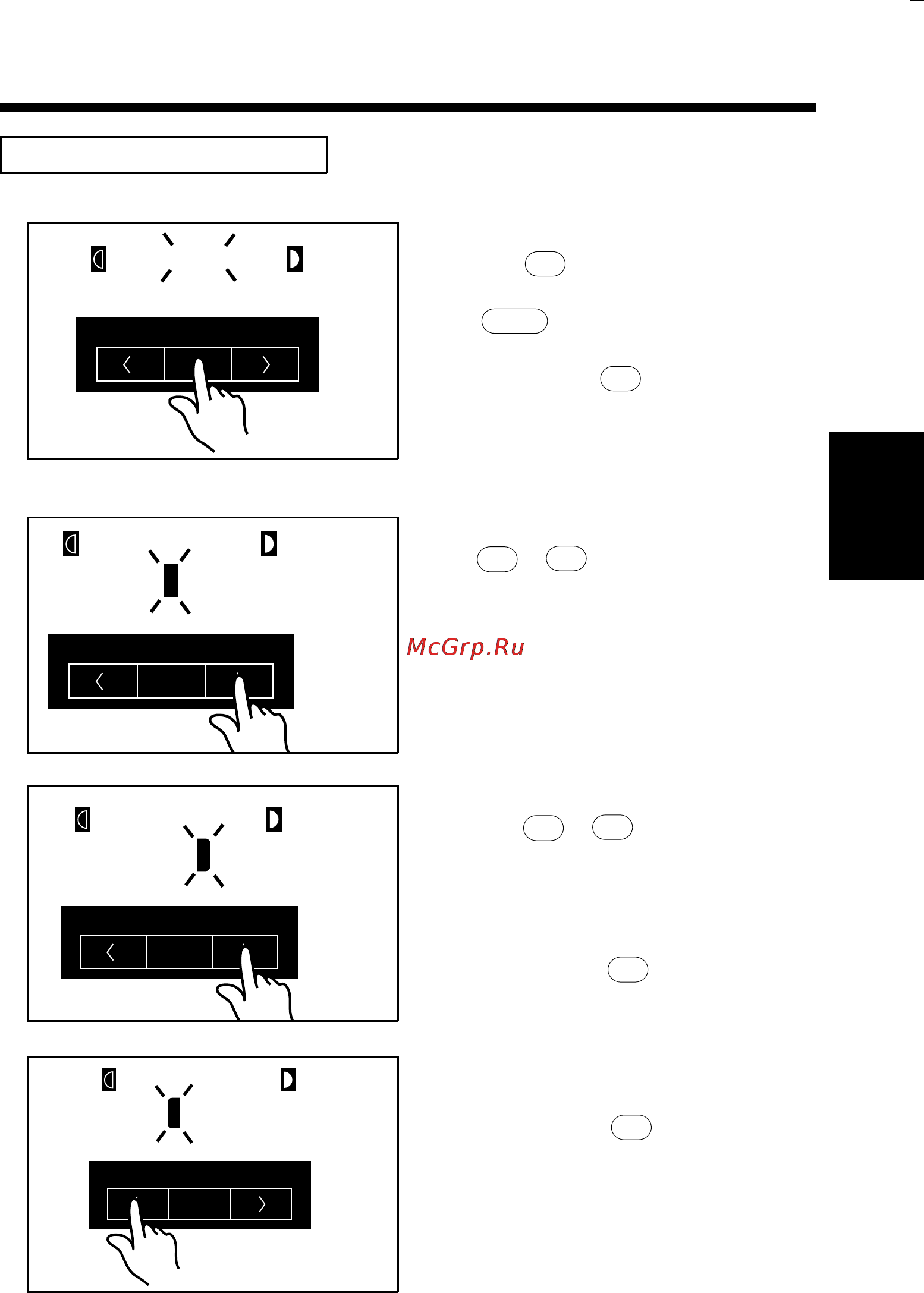

Press the Exposure Control Key
< or > to light up the
Exposure Level Indicator.
Manual Exposure Mode
1136P276CA
Auto
Darker
A
Lighter
Exposure
1136P276CA
Press the Auto Exposure Mode
Key A as necessary to light up
the Auto Exposure Indicator
Auto .
*
Each time the Auto Exposure
Mode Key A is pressed, the
Manual and Auto Exposure
Mode are selected alternately.
Selecting the Exposure Mode
Auto Exposure Mode
1
2
136P278CA
Darker
A
Lighter
Exposure
1136P278CA
Hold down the Exposure Control
Key < or > until the desired
exposure level is reached.
To make the image darker:
Press or hold down the Exposure
Control Key > .
1136P279CA
Darker
A
Lighter
Exposure
1136P279CA
To make the image lighter:
Press or hold down the Exposure
Control Key < .
2. Basic Copying Procedure
Chapter 3
Making Copies
49
