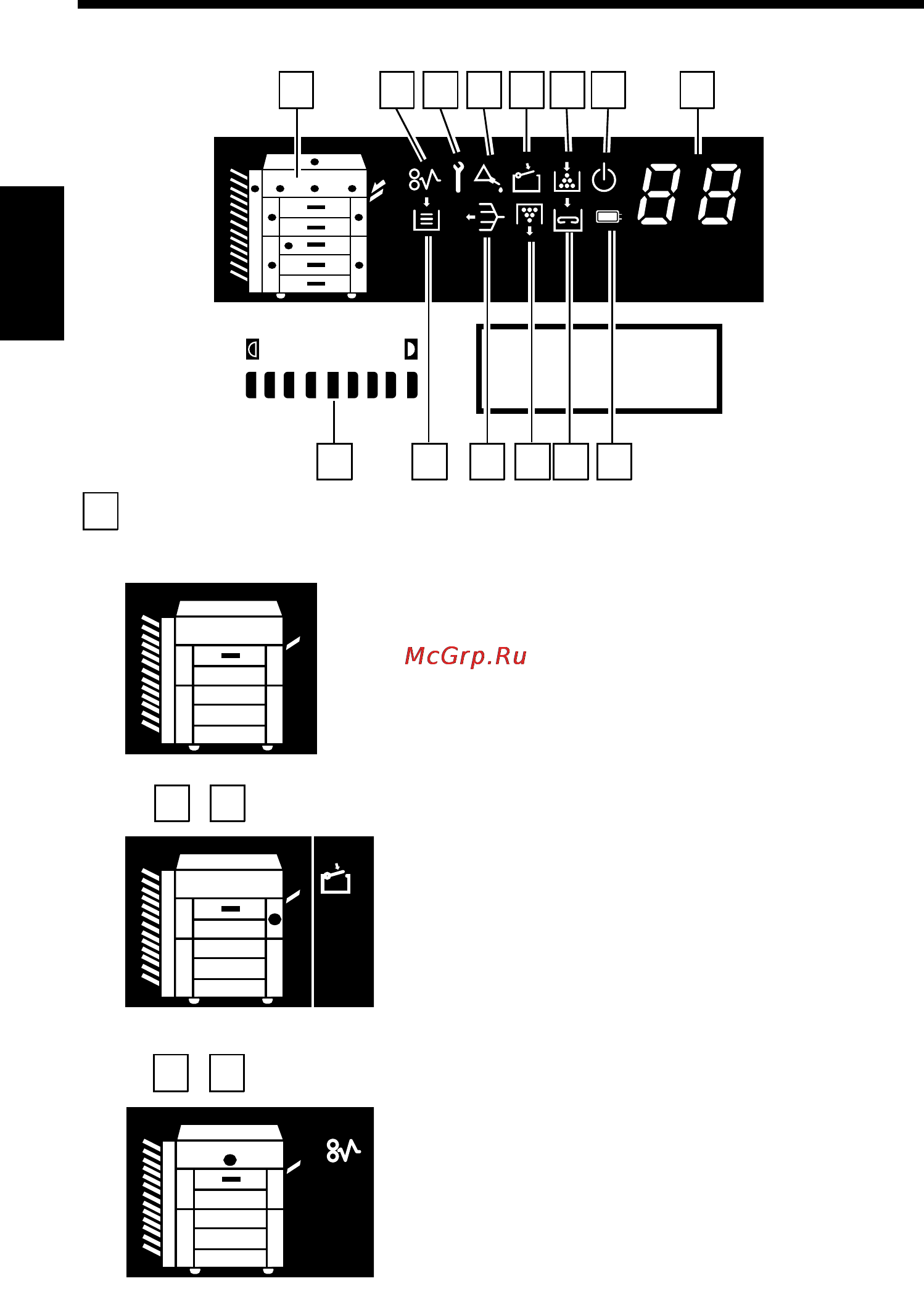

Display Panel
Auto
123
1
1136P253CA
14
5 6 7 4 3 2 8
13 12 11 10 9
1
Monitor Display
•
Paper Source Indicator:
Shows the Drawer which is currently selected for
use.
➭
p. 61
It also lights up when a 1-sided copy is stored in
the Duplex Unit.
Example: Shows that the 1st Drawer is currently
Example. selected for use.
•
- Closure Failure Indicator:
Indicates that a Door is left open.
➭
pp. 145, 162
The location of the Door left open is also
indicated by a round marker.
Example: Indicates that the Right Door is left
Example. open.
•
- Misfeed Indicator:
Indicates that a paper misfeed has occurred,
together with the location of the misfeed.
➭
pp. 145, 166
Example: Shows that a misfeed has occurred
Example. inside the copier.
1 5
1 2
1136P46OAA
1136P435AA
1136P435AA
1136P436AA
3. Control Panel Keys and Indicators
Chapter 2
First Things to Know about EP2050
28
