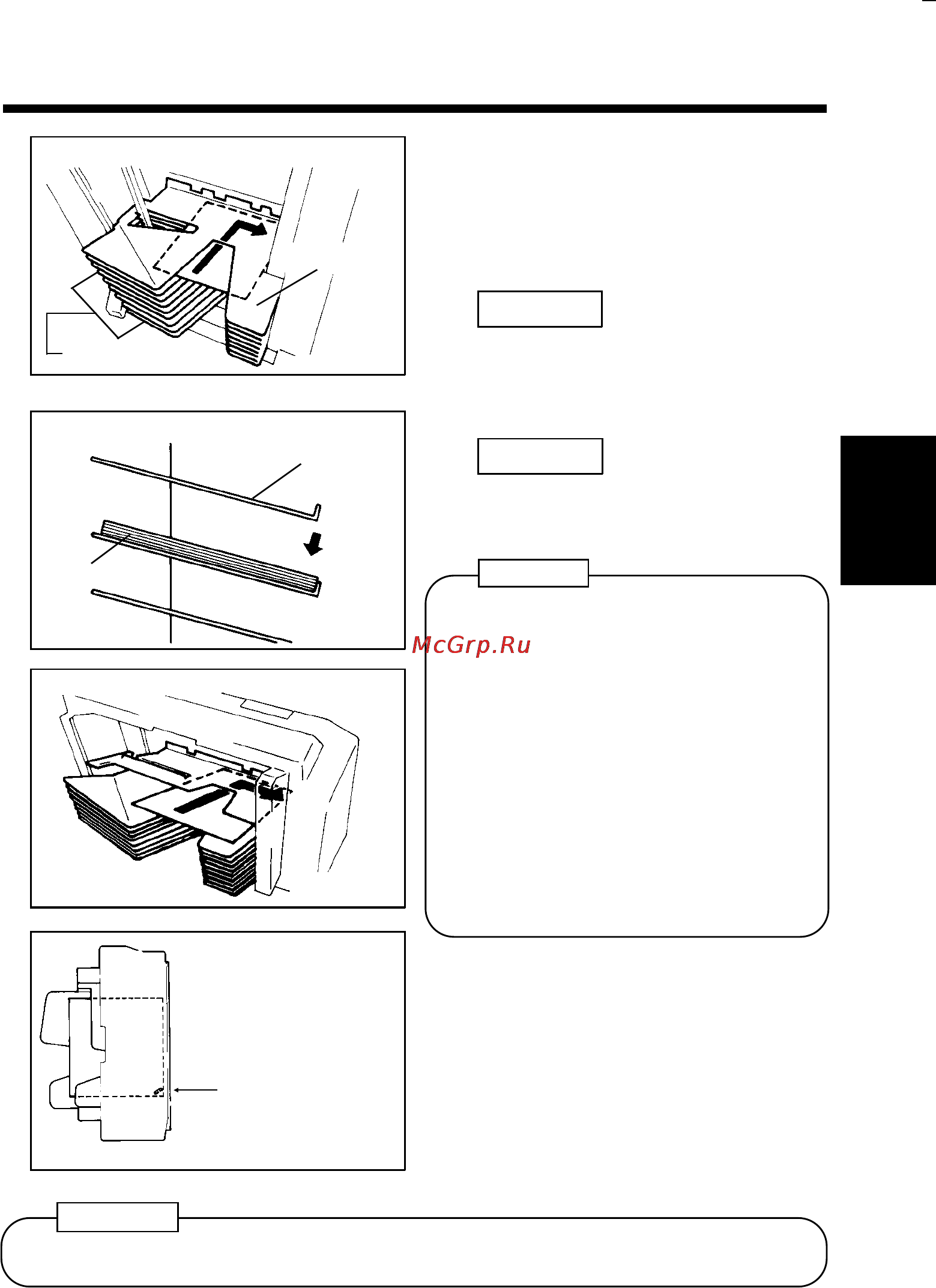

Konica Minolta EP2050 [103/225] Making copies
![Konica Minolta EP2050 [103/225] Making copies](/views2/1122110/page103/bg67.png)
1136O104AA
Non-Sort Bin
To use as a Stapler:
Stack the sheets of paper neatly.
Insert the stack of paper between
the Non-Sort Bin and 1st Bin of
the Staple Sorter.
Place the stack of paper in the
Top Bin of the Staple Sorter.
For ST-206
For ST-101
1136O105AA
20-Bin Staple Sorter
Non-Sort Bin
1st Bin
1
2
•
Make sure of the stapling position
and press the neat stack of paper
against the bracket (which is
invisible from the outside) at the
front right corner in the Bin.
•
Up to 50 sheets (80g/m
2
) of paper
can be stapled for the ST-206 and
25sheets (80g/m
2
) for ST-101.
•
Never attempt to reach the stapling
position in the Bin with your hand.
This can be very dangerous.
NOTES
20-Bin Staple Sorter
Sort Bins
4. System Job Setting
3
This feature is efficient for stapling originals after making copies.
Useful Tip
1139O0094
Common to 20- and
10-Bin Staple Sorters
Press the Manual Staple Key.
The paper stack in the Top Bin
will be stapled.
1136O106AA
10-Bin Staple Sorter
Stapling Position
Chapter 3
Making Copies
91
