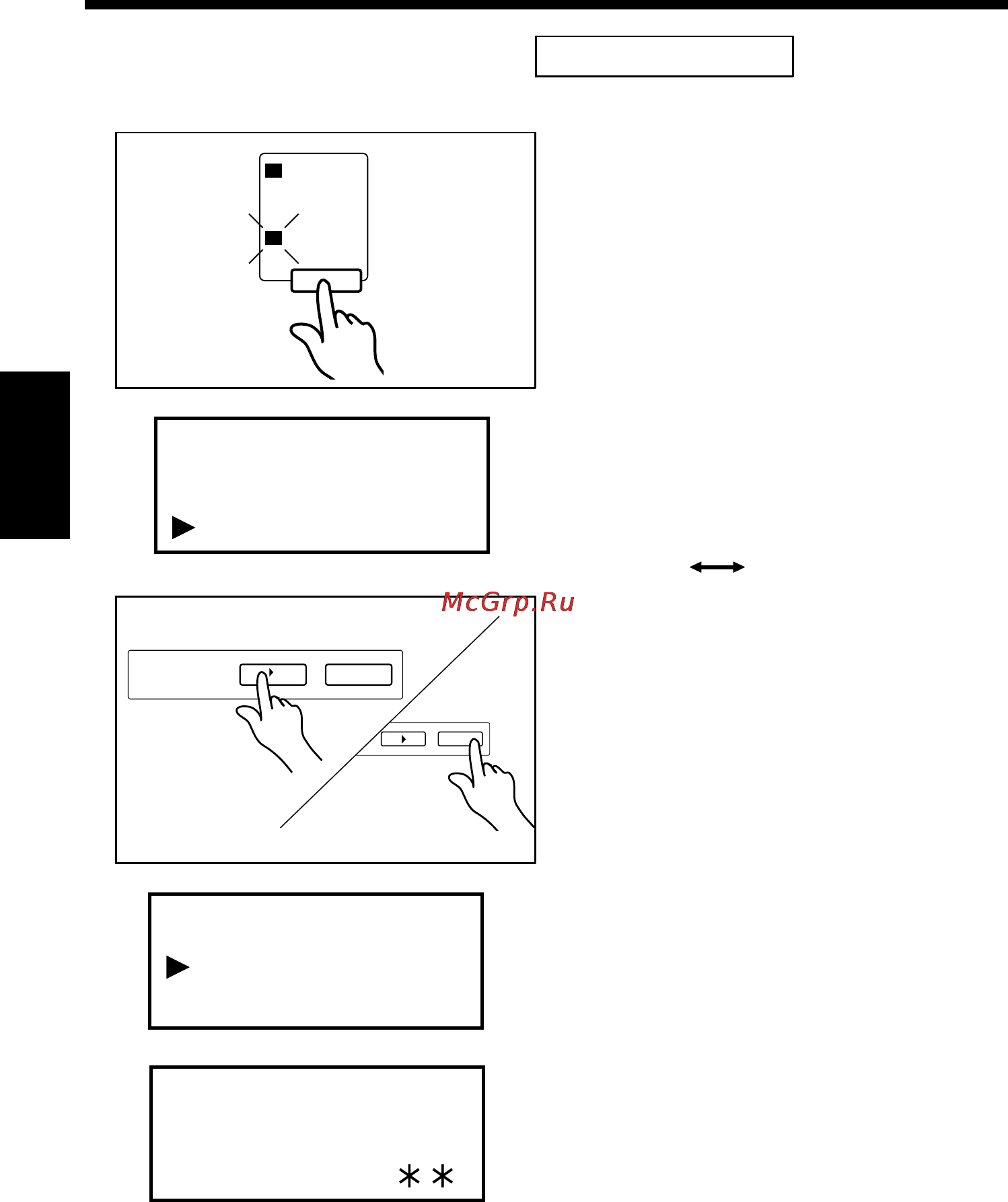

Using Page Insertion
<10-Key Input>
1136P347CA
OHP
Inter-
leaving
Page
Insertion
1136P347CA
Press the Insertion Mode Key to
select Page Insertion.
The Message Display then asks
you if you want a copied insert.
Press the Select Key as necessary
to select whether you want a
copied insert ("YES") or not
("NO").
Each time the Key is pressed, the
cursor moves to a new option as
follows.
YES NO
Copy an image on
the Page Insert?
YES NO
1136P383CA
1136P430AA
OK
OK
1136P1430AA
Press the Enter Key to validate
your selection.
•
Then, a screen allowing you to
select the method to define
where to put inserts appears on
the Message Display.
Select 10-Key Input using the
Select Key and press the Enter
Key to validate that selection.
•
Then, the message "Input the
number of originals:" appears
on the Message Display.
Using the Multi-Copy Keys,
enter the number of originals you
have and press the Enter Key.
•
Then, a screen allowing you to
enter the place for insert (no. 1)
appears on the Message Display.
Sheet Placement :
Auto Detection
10-Key Input
1136P385CA
1
2
3
4
Input the number
of originals :
1136P386CA
