Konica Minolta EP2050 [184/225] When a warning message appears

1136P32OAA

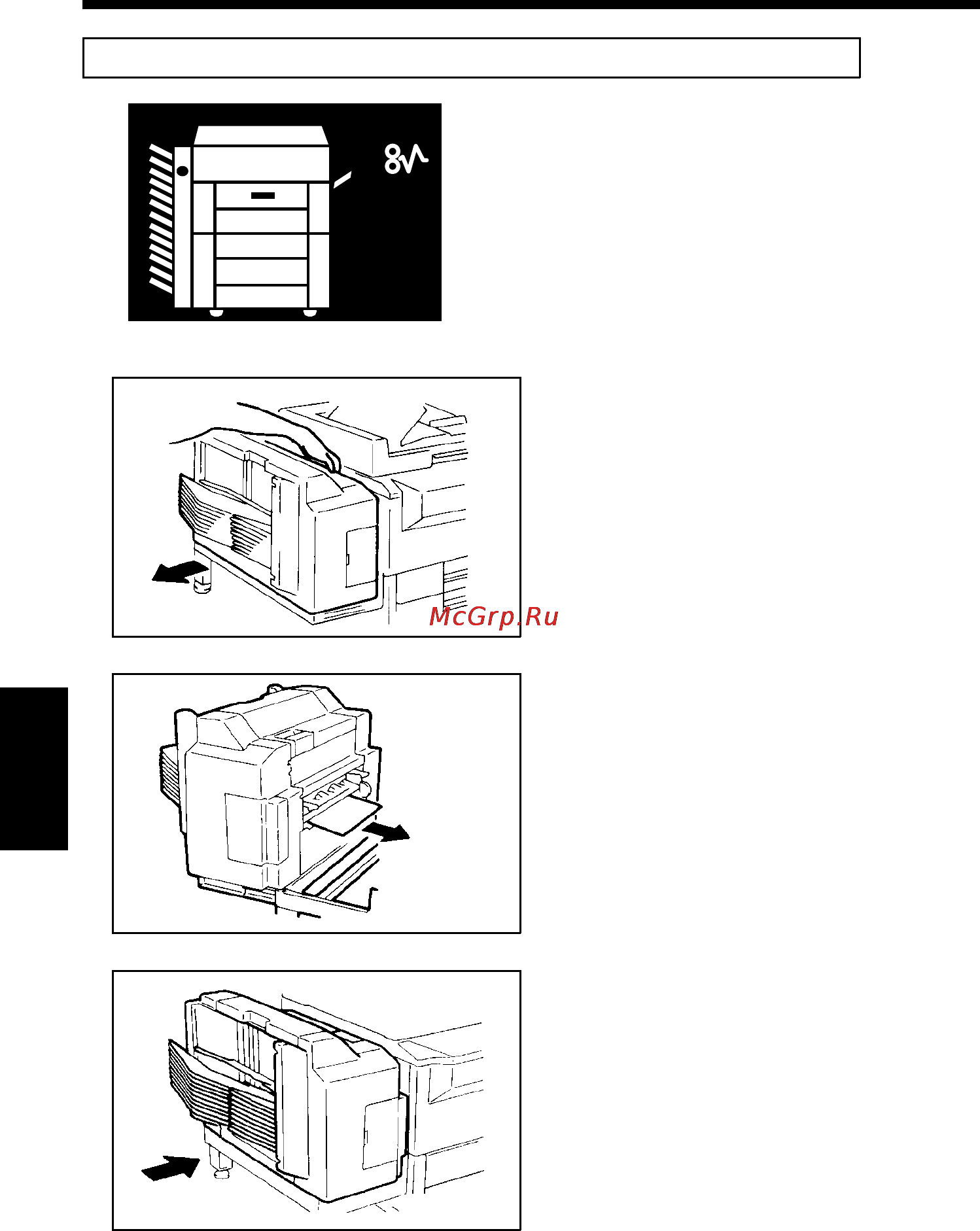

Misfeed Clearing Procedure: Sorter S-104 or Staple Sorter ST-101

1136P320AA

There is a misfed sheet of paper in the

10-Bin Sorter S-104 or the Staple Sorter

ST-101 (Transport Section).

1139O0880A

Take hold of the Lock Release

Lever of S-104/ST-101 and slide

the sorter away from the copier.

1139O0870A

Pull out the copy from the

Transport Section.

1139O0650A

Slide the S-104/ST-101 back to

the copier.

This completes the procedure to clear

a misfed sheet of paper in the

S-104/ST-101.

2. Detailed Instructions for Messages/Indicator Lights

Chapter 5

When a Warning Message Appears

180
