Konica Minolta EP2050 [52/225] Basic copying procedure
![Konica Minolta EP2050 [52/225] Basic copying procedure](/views2/1122110/page52/bg34.png)

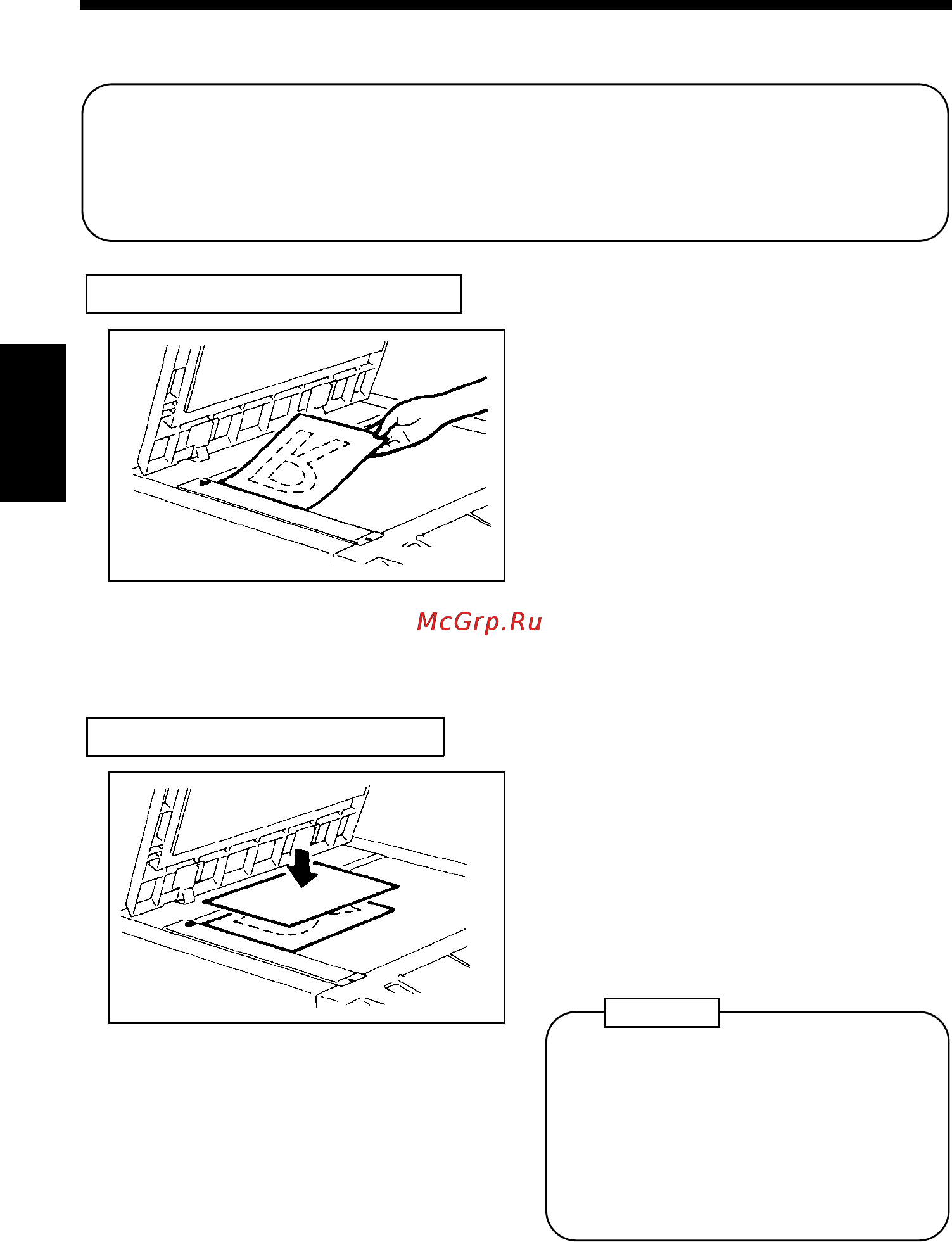

Placing Originals
Place the original face down on the Original Glass.
Different methods are used to load the originals depending on the type of
originals and whether the copier is equipped with an Automatic/Duplexing
Document Feeder AF-3/AFR-7 (option).
1139O0050A
Sheet Originals (Standard Size)
Raise the Original Cover.
Place the original face down on
the Original Glass and align its
rear left corner with the
marker on the Original Width
Scale on the left side of the
platen.
Gently lower the Original Cover.
▼
1
2
1139O0070A
Place the original in the same
way as the sheet originals.
Place a blank sheet of paper of
the same size as the original over
the original. Then lower the
Original Cover.
Highly Transparent Originals
1
2
If this is not done, the copier will
not be able to detect the size of
the original and the Auto Paper
or Auto Size function is disabled.
Further, the copy produced may
be of poor quality.
NOTE
2. Basic Copying Procedure
Chapter 3
Making Copies
40
