Konica Minolta EP2050 [126/225] Insertion mode
![Konica Minolta EP2050 [126/225] Insertion mode](/views2/1122110/page126/bg7e.png)
1136O130AA
Original Set Copy Set
Specify
Page 2 for
Insert.
Insert

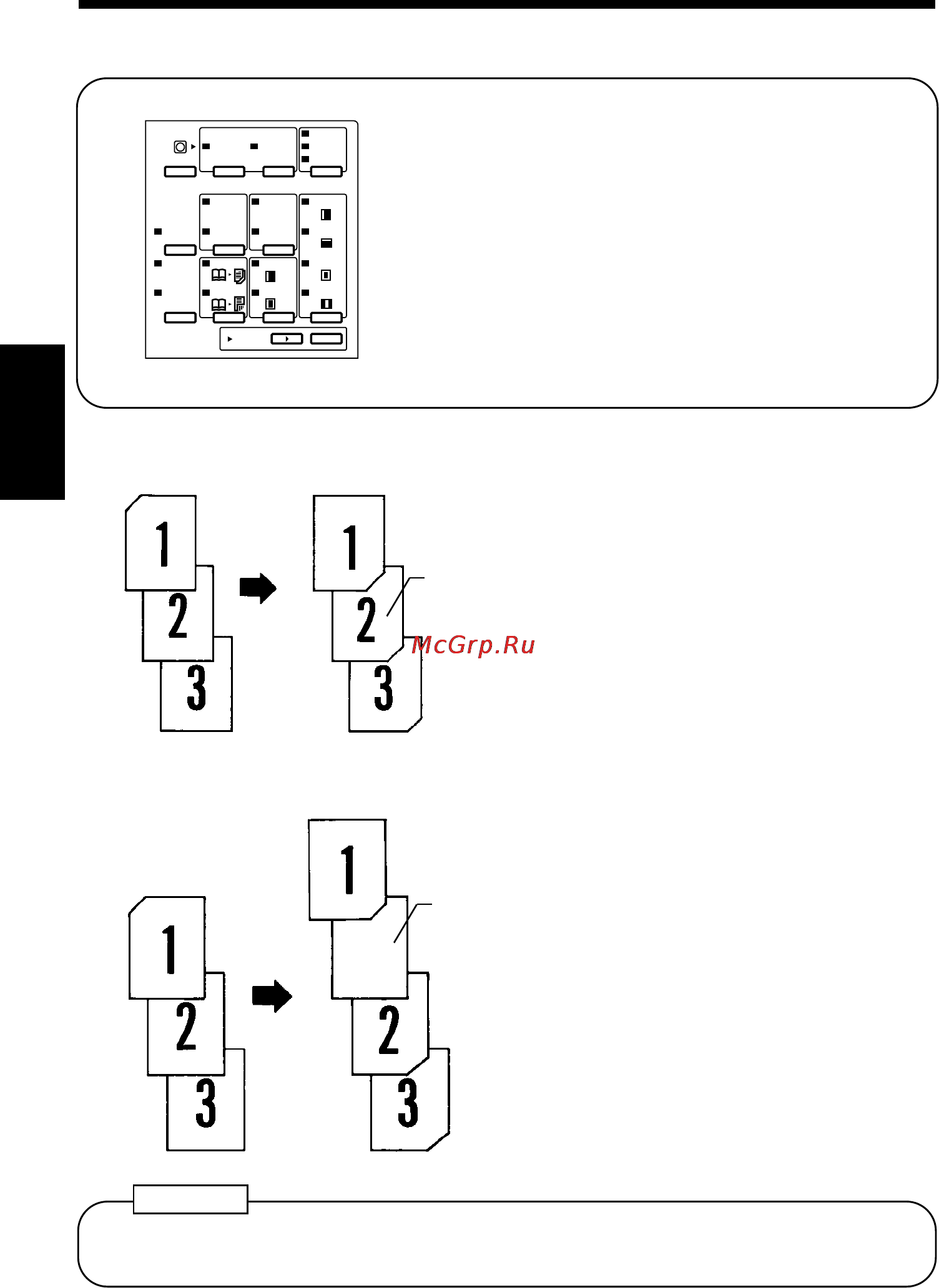

Page Insertion <Copied Inserts>
The copier copies the page, which is
specified for an insert, on paper for
inserts.
Insertion Mode
1136O179AA
Original Set Copy Set
Specify
Insert
Between
Pages 1
and 2.
Insert
Page Insertion
<Non-Copied Inserts>
The copier inserts a sheet of paper for
inserts at any specified place between
pages.
You may at times need to make a number of
copies each from several different originals.
Page Insertion allows you to insert a blank
sheet of paper (colored paper) between the
copy stacks.
Two different functions are available. Select
the appropriate insertion function according
to your need.
Load the paper for inserts onto the Multi Bypass Table.
NOTE
1136P330CA
Input
Job
Memory
Zoom
Memory
Auto Size
Meter
Count
Toner
Book 1
OHP
Inter-
leaving
Page
Insertion
Cover
(Front)
Book 2
Margin 1
Margin 2
Erase 1
Erase 2
Erase 3
Erase 4
Display
OK
Drum
Dehumidify
Cover
(Front
&
Back)
1136P330CA
Chapter 3
Making Copies
114
6. Supplementary Function Setting
